Product Model

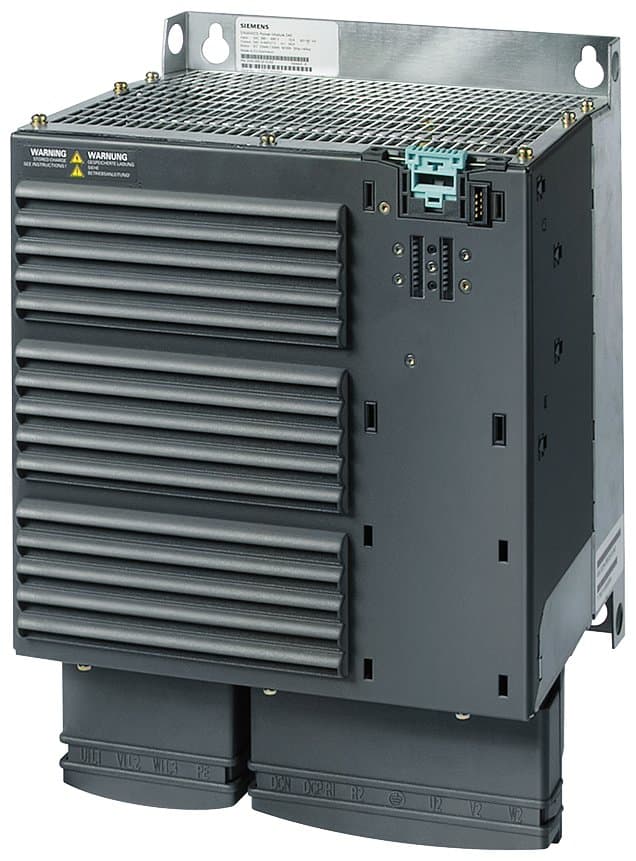

6SL3225-0BE31-8UA0
Selling Points
- 1High Performance: The 6SL3225-0BE31-8UA0 AC Drives from Siemens deliver high output frequencies up to 550 Hz for efficient operation.
- 2Reliable Operation: With a 2-year warranty, this drive ensures reliable performance and minimal downtime.
- 3Versatile Application: Suitable for various industrial applications, including automotive, aerospace, and power generation.
- 4Energy Efficiency: Features dynamic regenerative braking, reducing energy waste and saving space in the cabinet.
- 5Comprehensive Support: MRO Electric offers repair services and a core exchange program for cost-effective maintenance options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 204 mm | Height | 419 mm |
Width | 275 mm | Protection Rating | IP20 |
Dimensions | FSD | Input Phases | 3 |
Filter | No built-in Class A filter | Motor Power | 22 kW |
Rated Voltage | 380-480 V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 6SL3225-0BE31-8UA0 |
Specifications may be subject to change without notice
