Product Model

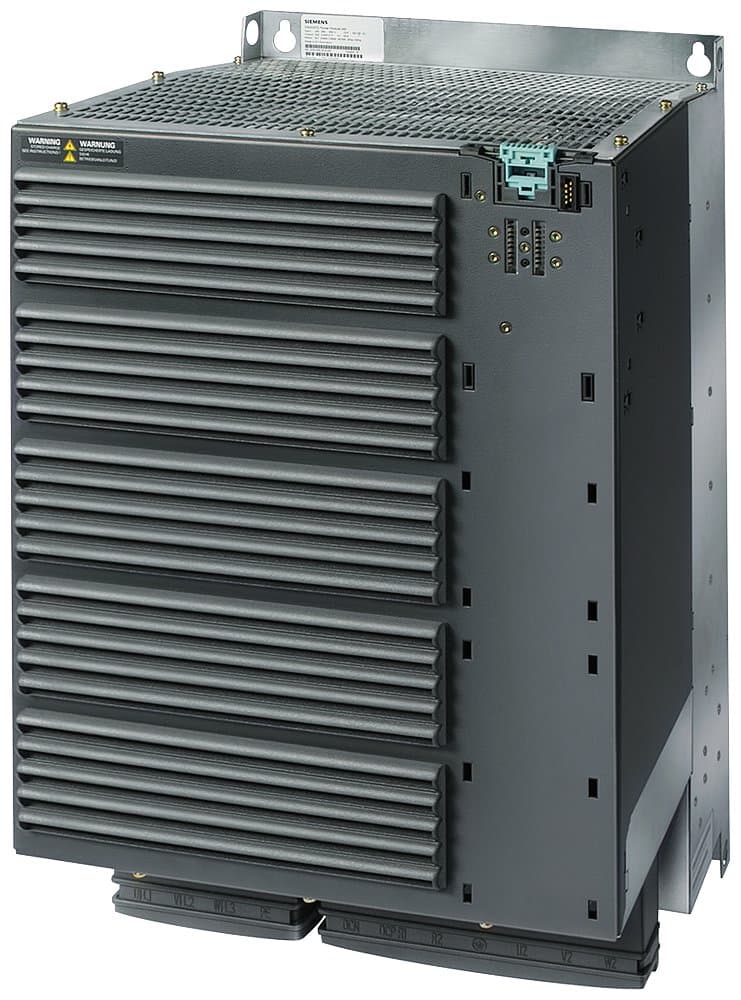

6SL3225-0BE35-5AA0
Selling Points
- 1High overload capability: 55kW for 200% overload, 150% for 57s, and 100% for 240s.
- 2Built-in Class A filter: Enables regeneration and reduces line harmonics.
- 3Wide voltage range: 380-480V AC with ±10% tolerance.
- 4Robust design: IP20 protection and suitable for four-quadrant operation.
- 5Efficient operation: Low power loss and high efficiency (97%).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Depth | 316 mm | Height | 934 mm |
Width | 350 mm | Protection Rating | IP20 |
Size | FSF | Input Phases | 3 |
Filter | Integrated Class A Filter | Motor Power | 75 kW |
Rated Voltage | 380-480 V | Product Type | Inverter |
Lifecycle | Delivery Release (PM300) | Country of Origin | Germany |
ECCN | 9N9999 | AL | N |
Model Number | 6SL3225-0BE35-5AA0 |
Specifications may be subject to change without notice
