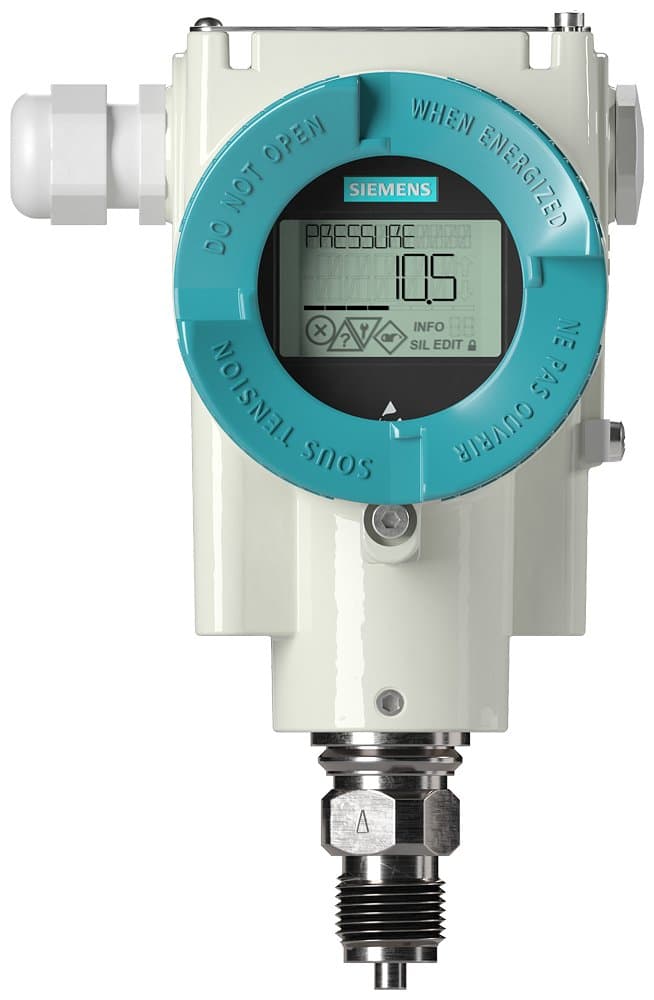

Product Model
7MF0400-1QE01-5AF2-ZA00E00H01Y01
Selling Points
- 1Precise Gauge Pressure Measurement: Measures up to 63 bar (914 psi) with high accuracy.
- 2HART Communication: Compatible with HART (4...20 mA) for seamless integration.
- 3Intrinsic Safety: Designed for hazardous areas with intrinsic safety, explosion proof, and dust ignition proof.
- 4Stainless Steel Construction: Process connections and seal diaphragms made of stainless steel 316L/1.4404 for durability.
- 5Dual Chamber Device: Features a dual chamber device with a display and glass window for easy monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Parameter Adjustment Button Included | Yes | Protection Rating | IP66 |
Power Supply | 10.5 … 45 V DC | Environmental Temperature Range | -40 … 85℃ |
Process Temperature Range | -40 … 100℃ | Medium Type | Corrosive and Non-Corrosive Gases, Liquids, and Steam |
Bracket | Carbon Steel Bracket | Display Included | Yes |
Cable and Plug Material | Plastic | Electrical Connection | M20*1.5 |
Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Cast Aluminum |
Wetted Material | 316L Stainless Steel | Process Connection | 1/2-14 NPT Internal Thread |
Measurement Range | 0 … 16 bar | Filling Liquid | Silicone Oil |
Communication Type | HART 7 | Accuracy | 0.0004 |
Product Series | SITRANS P420 Intelligent Pressure Transmitter | Lifecycle | Delivery Release (PM300) |
Country of Origin | Germany | ECCN | EAR99H |
AL | N | Model Number | 7MF0400-1QE01-5AF2-ZA00E00H01Y01 |
Specifications may be subject to change without notice
