SiemensProcess Measurement Instruments
Product Model

7ML5650-0AA00-0JA0

Manufacturer

Siemens

Category

Process Measurement Instruments

Product ID

145236

In Stock
Last updated: 2025/4/29
View Specifications

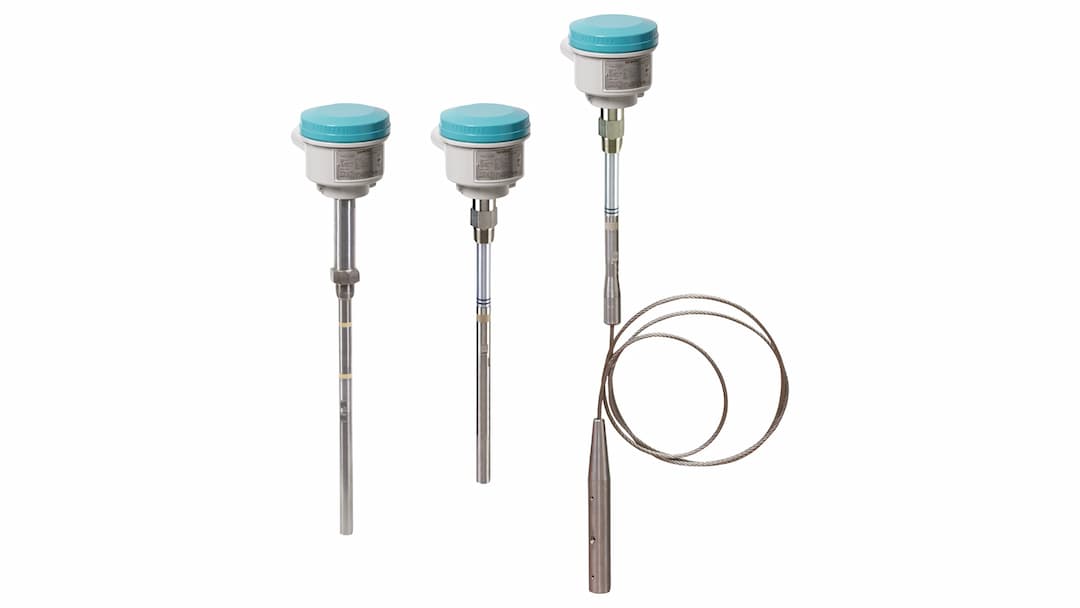

Siemens 7ML5650-0AA00-0JA0

Selling Points

  • 1Detects level and interface in aggressive liquids, solids, and slurries.
  • 2Equipped with active shield technology to suppress material buildup and nozzle interference.
  • 3High-temperature version up to 400 °C (752 °F) for demanding applications.
  • 4Modular design with a wide range of probe configurations, including rod and cable versions.
  • 5Meets stringent safety standards with approvals like CE, UKCA, and ATEX II 1/2 D Ex ia/tb [ia Da] IIIC TX Da/Db.
Product Details
7ML5650-0AA00-0JA0
Siemens

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Dynamic Shield End Length
125mm
Electrical Interface and Protection Rating
2*1/2" NPT, IP65
Explosion Protection Type
Non-explosive-proof
Probe Material
316L hard rod with PFA coating
Wetted Seal Material
FKM
Thermal Insulation
Standard
Measuring Rod Length
350mm
Process Connection and Material
3/4" NPT, 316L stainless steel
Series
SITRANS CLS300
Lifecycle
Delivery Release (PM300)
Country of Origin
Germany
ECCN
EAR99
AL
N
Model
7ML5650-0AA00-0JA0

Specifications may be subject to change without notice
