Product Model
7ML5883-0AE00-0BC1-ZA00B00C01E01L08M01
Selling Points
- 1Continuous and Contact Measurement: Continuously monitors level and interface in liquids with precise contact measurement.
- 2Extreme Environment Capability: Designed to operate in extreme environments, ensuring reliability and accuracy.
- 360 m Range: Offers a measurement range of up to 60 meters (197 feet) for comprehensive monitoring.
- 4General Purpose Certification: Meets CSA, FM, and CE standards for general-purpose applications.
- 5Robust Design: Features an exchangeable rod diameter of 16 mm and a process fitting material of 316L stainless steel for durability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operation Manual | English version | Operating Language | Chinese |
Operation and Display Module | Equipped with on-site operation and display module | Probe Assembly | Factory assembled |
Counterweight Module | Solid rod without counterweight | Second Output | Standard one output |
Probe Length | 316L, 500mm | Enclosure Material and Protection Rating | Aluminum alloy, IP66/68, M20 |
Process Temperature and Sealing | -196~450°C, ceramic graphite | Output and Communication | Two-wire 4~20mA output |
Process Connection | G1-1/2 thread PN400, 316L | Measuring Rod Type | 16mm rod, 316L |

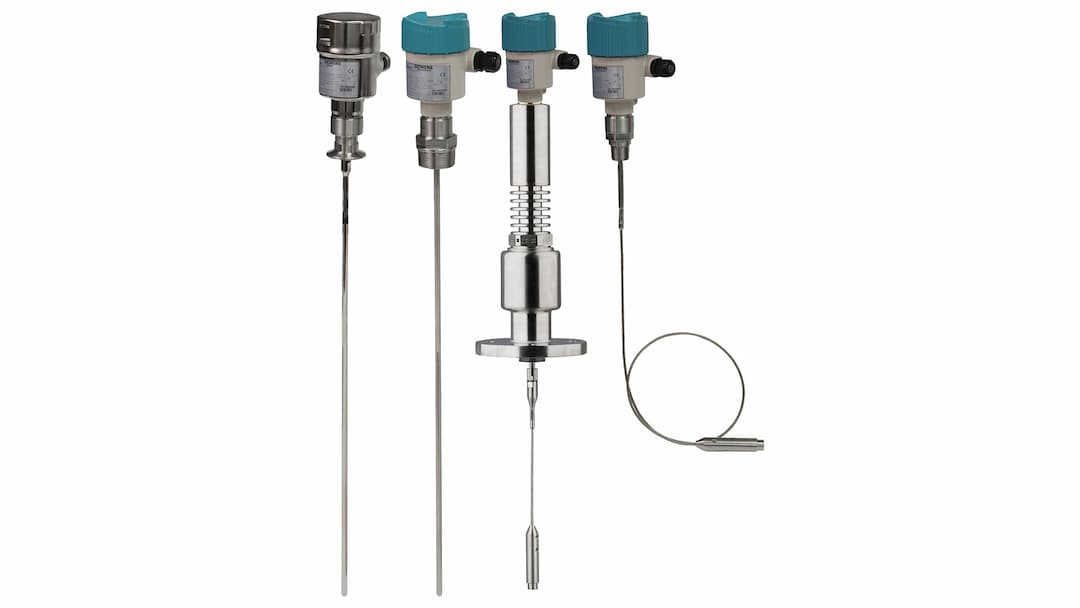

Explosion Protection Type | Non-explosion proof | Product Series | SITRANS LG270 |
Product Lifecycle | Delivery Release (PM300) | Origin Country | Germany |
ECCN | EAR99I | AL | N |
Model Number | 7ML5883-0AE00-0BC1-ZA00B00C01E01L08M01 |
Specifications may be subject to change without notice
