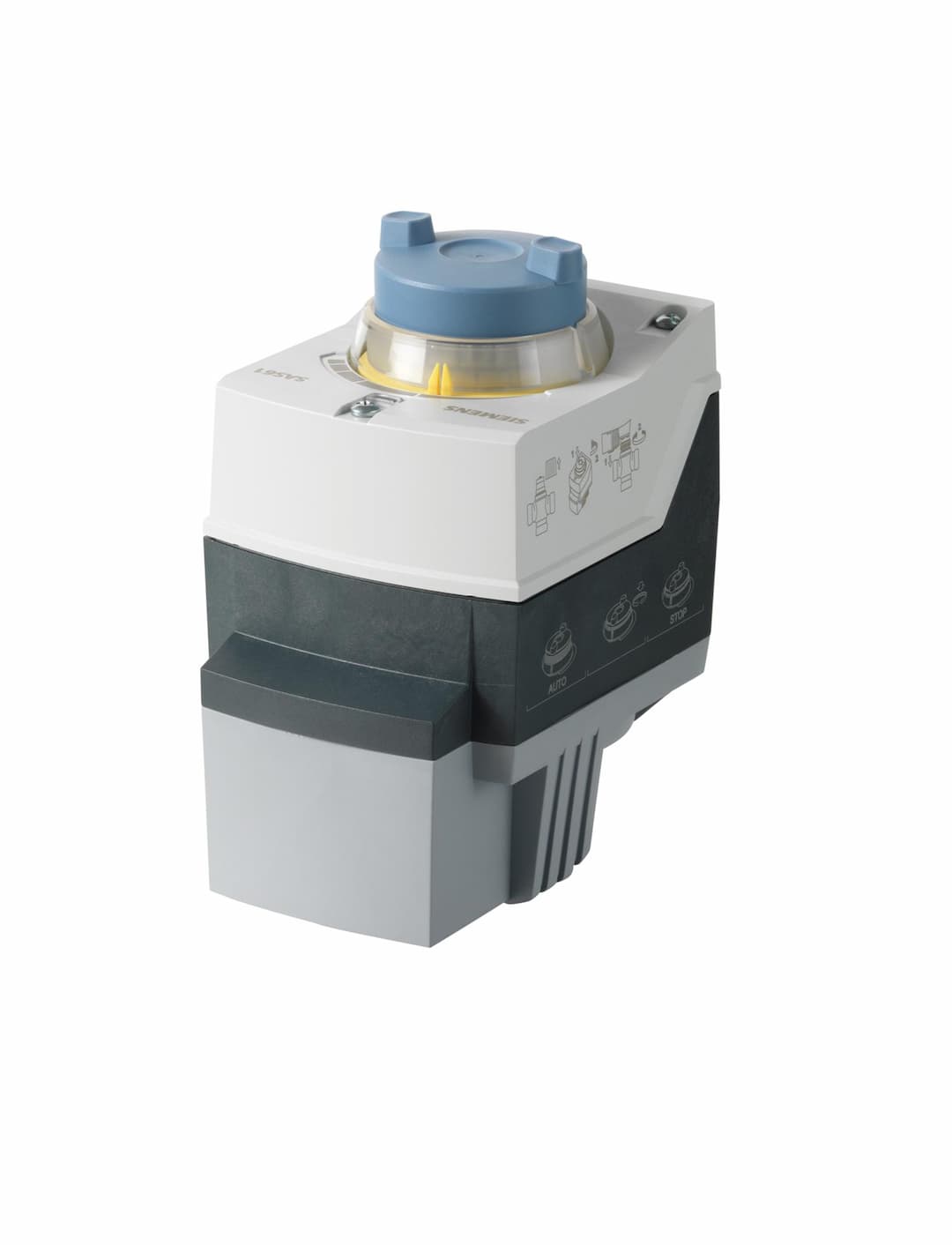

Product Model
S55158-A101
Selling Points
- 1High force of 400 N for demanding tasks.
- 2Compact design with a stroke length of 5.5 mm.
- 3Operates on AC/DC 24 V power supply.
- 4Features DC 0-10 V/DC 4-20 mA control inputs for precise control.
- 5Spring return function with a return time of 30 seconds.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating Range | DC 0…10 V | Operating Voltage | AC/DC 24 V |
Positioning Time | DC 0…10 V; DC 4…20 mA; 0…1000 ohms | Positioning Signal | DC 0…10 V; DC 4…20 mA; 0…1000 ohms |
Installation Position | Perpendicular to the horizontal plane | Power Consumption | 5.9 VA |
Lifecycle | P.M300 | Country of Origin | Switzerland |
ECCN | 9N9999 | AL | N |
Model | S55158-A101 |
Specifications may be subject to change without notice
