Product Model

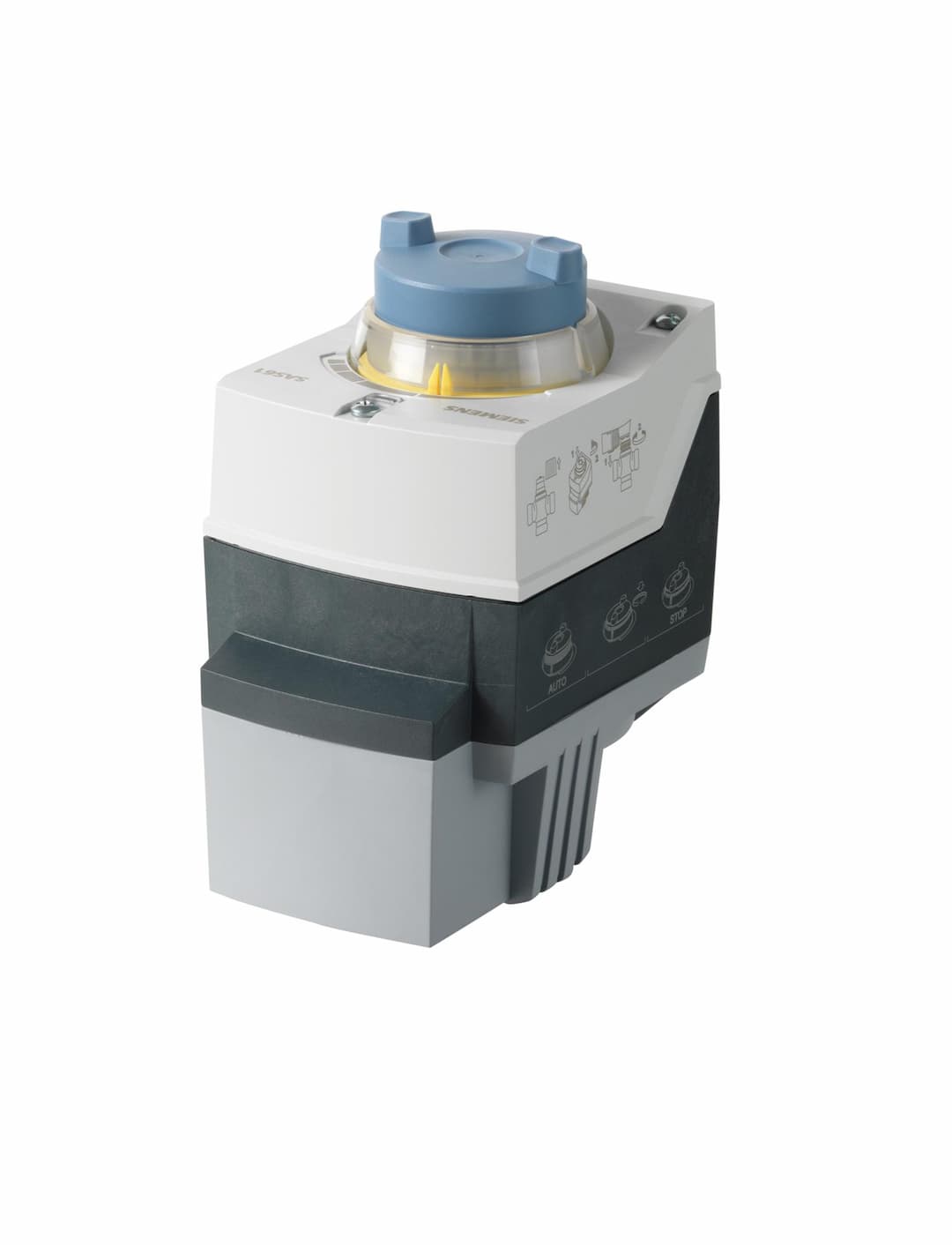

S55158-A105
Selling Points
- 1Powerful 400 N force for precise operation.
- 2Compact 5.5 mm travel distance for efficient use.
- 3Compatible with AC/DC 24 V power supply.
- 4Control input ranges of DC 0-10 V or DC 4-20 mA.
- 5Reliable spring return function for consistent performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Operating Range | DC 0…10V | Operating Voltage | AC/DC 24V |
Positioning Time | 3-bit | Positioning Signal | 3-bit |
Installation Position | Perpendicular to the horizontal plane | Power Consumption | 3.4 VA |
Lifecycle | P.M300 | Country of Origin | Switzerland |
ECCN | 9N9999 | AL | N |
Model | S55158-A105 |
Specifications may be subject to change without notice
