Product Model

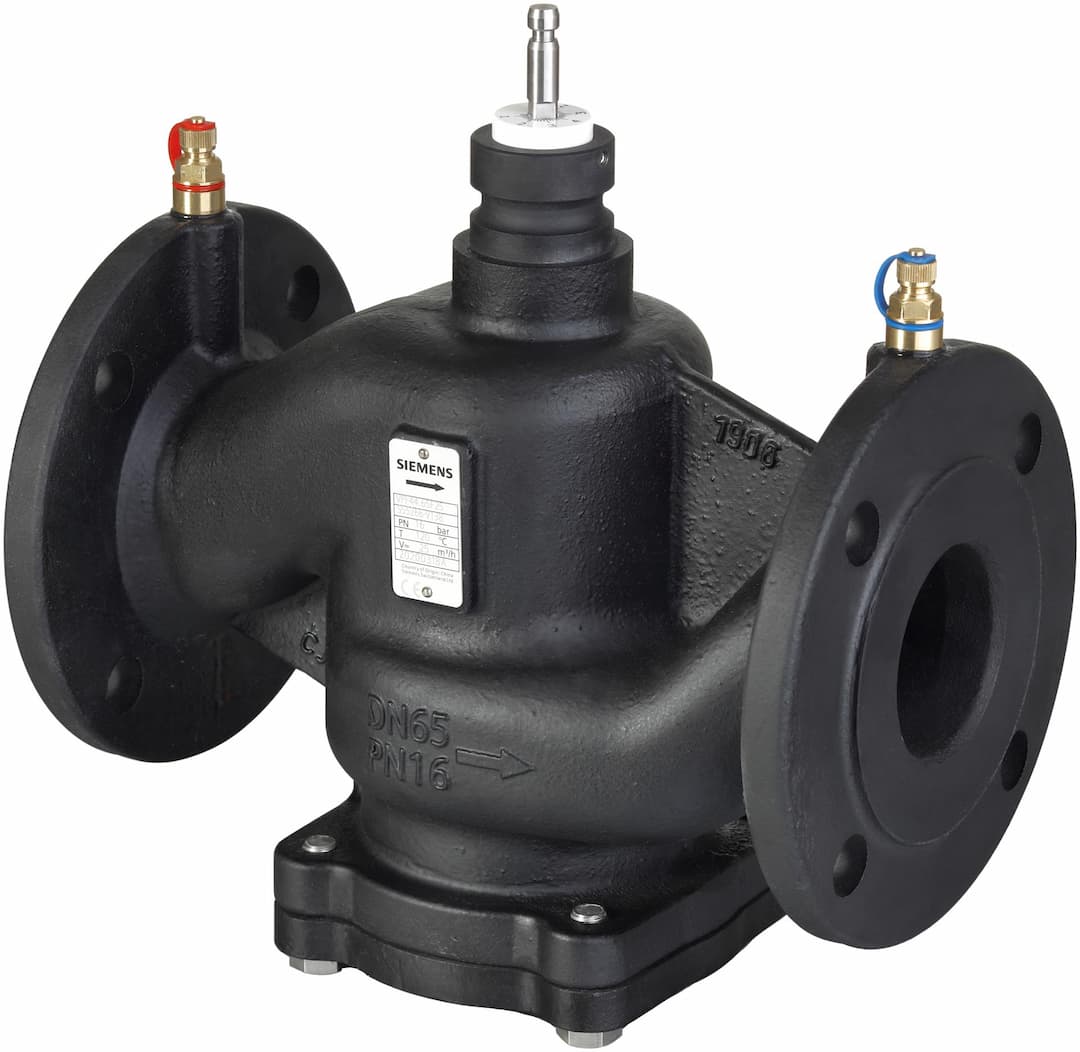

S55266-V142
Selling Points
- 1Pressure Independent Control: Maintains constant flow rates despite pressure changes.
- 2Robust Construction: Made from high-quality gray cast iron GJL-250 (PN 16) and nodular cast iron GJL-400 (PN 25).
- 3Wide Flow Range: Suitable for volumetric flows from 15 to 280 m³/h nominal.
- 4Integrated Pressure Differential Controller: Ensures consistent differential pressure across the valve.
- 5Easy Installation: Equipped with pressure test points (P/T) for easy commissioning and operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Leakage Rate | Class IV (0…0.01% of volumetric flow) | Installation Position | Upright to 90° inclined |
Permissible Operating Pressure | 1600 kPa | Lifecycle | P.M300 |
Country of Origin | China | ECCN | N |
AL | N | Model | S55266-V142 |
Specifications may be subject to change without notice
