Product Model

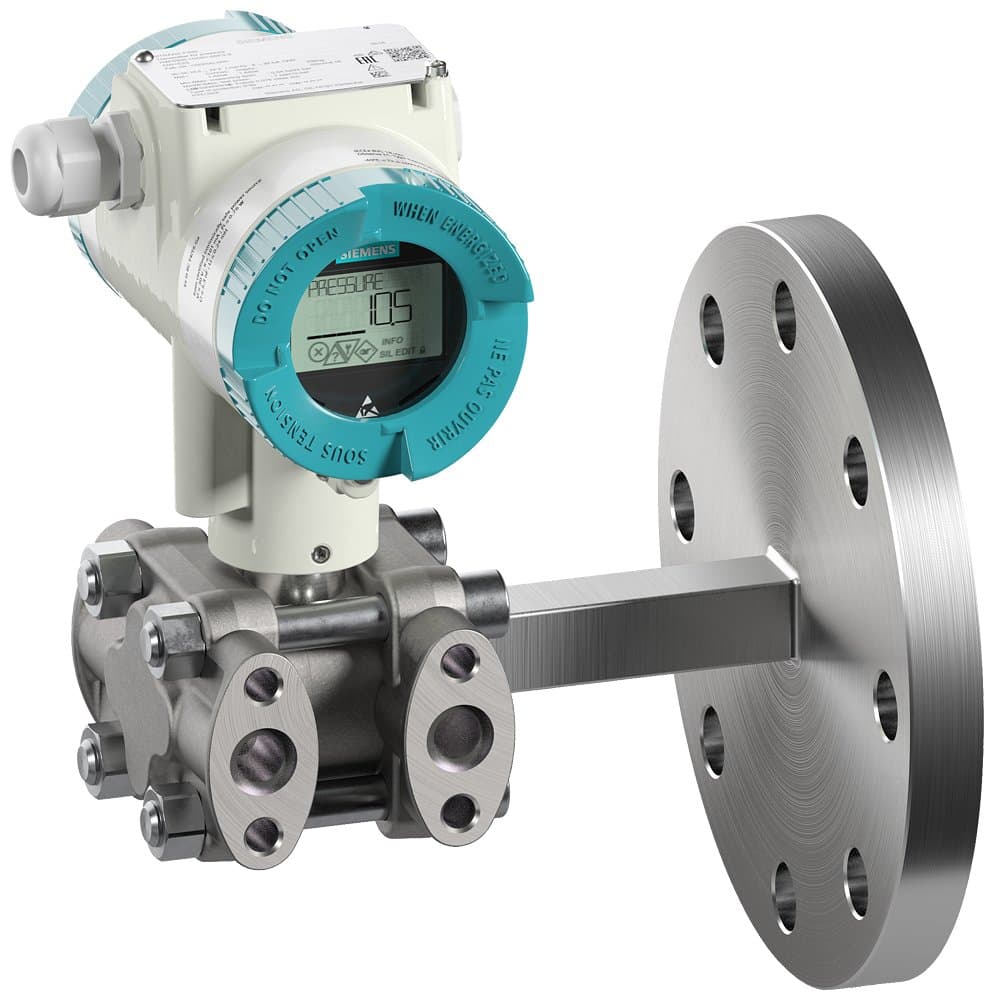

STRANS P320 FOR LEVEL
Selling Points
- 1High accuracy with measuring span ratio up to 100:1.
- 2User-friendly operation with four-button programming and HART interface.
- 3Robust construction for harsh environments, resistant to chemical and mechanical stresses.
- 4Advanced diagnostic functions according to NAMUR NE107 for reliable operation.
- 5Compatible with various mounting flanges including EN 1092-1 and ASME B16.5 for versatile installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Head Protection Rating | With | Terminal Protection Rating | Corrosive and Non-Corrosive Gases, Liquids, and Vapors |
Presence of Bracket | Without Bracket | Presence of Display | With |
Cable and Plug Material | Plastic | Electrical Connection | M20*1.5 |
Explosion Protection Type | Non-Explosion Proof | Enclosure Material | Aluminum Alloy |
Presence of Capillary | No Capillary, Direct Connection | Filling Liquid | Silicone Oil M5 |
Wetted Materials | HC 276 | Process Connection | Single Flange, ASME B16.5 3” Class 150 RFSF |
Ambient Temperature | -10…50℃ | Process Temperature | -90…160℃ |
Measurement Range | 0…25 kPa | Communication Type | HART 7 |
Product Series | With Remote Sealed Assembly | Lifecycle | Delivery Release (PM300) |
Country of Origin | China | ECCN | N |
AL | N | Model Number | STRANS P320 FOR LEVEL |
Specifications may be subject to change without notice
