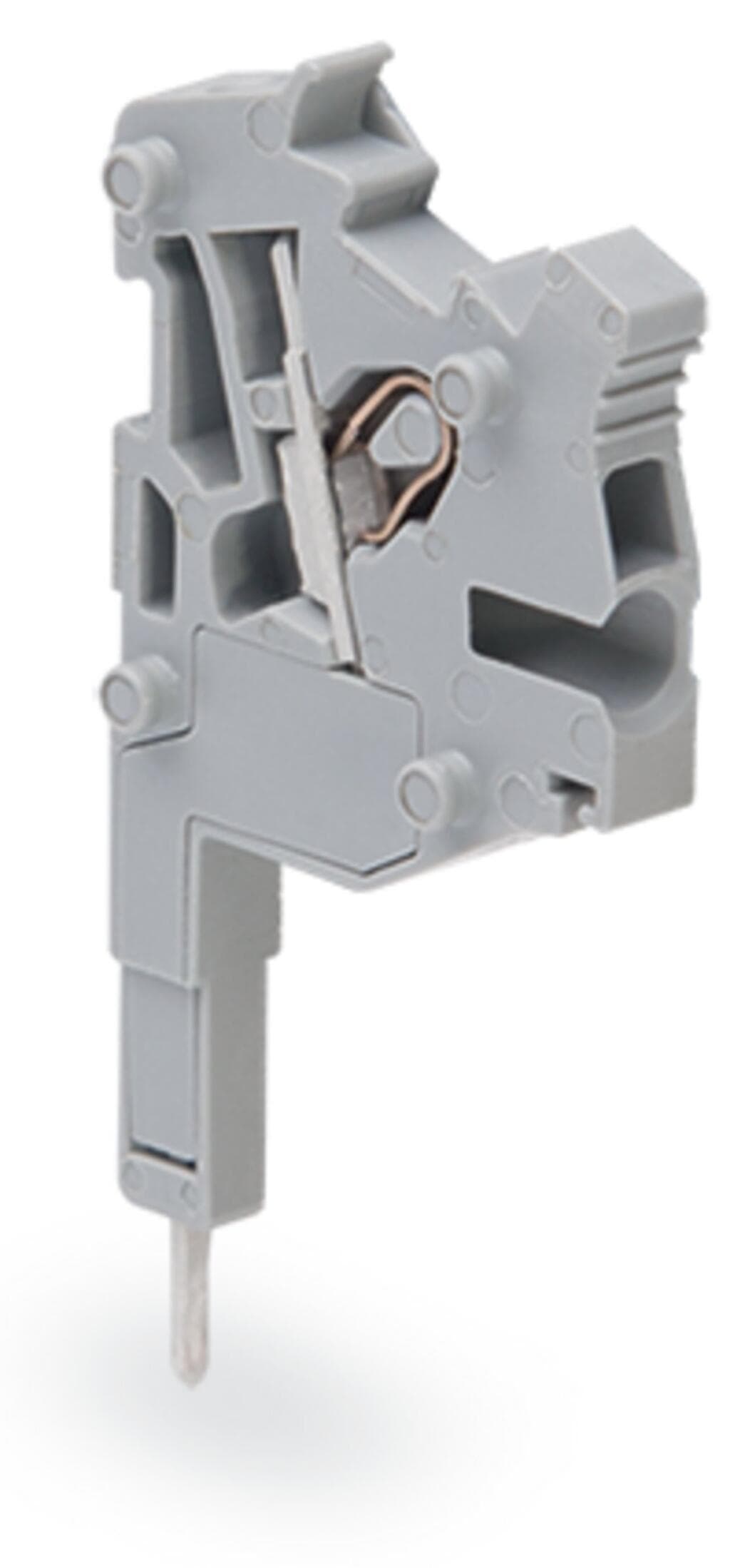

Product Model
2000-510
Selling Points
- 1Secure and Efficient Wiring: Utilizes Push-in CAGE CLAMP spring connections for reliable and efficient wiring.
- 2Versatile Conductor Compatibility: Supports wire sizes from 0.14mm² to 1.5mm² or #24AWG to #16AWG.
- 3High Current Rating: Rated for 13.5A, ensuring robust performance in demanding applications.
- 4Compact Design: Measuring 3.5mm in width, perfect for space-constrained setups.
- 5Compliance with Safety Standards: Meets EN 61984 and UL 1059 standards, ensuring safe operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Clamping units | 1 |
Total number of potentials | 1 | Width | 3.5?mm?/ 0.138?inches |
Module width | 3.5?mm?/ 0.138?inches | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.042MJ | Weight | 1.9g |
eCl@ss 10.0 | 27-14-11-51 | eCl@ss 9.0 | 27-14-11-51 |
ETIM 9.0 | EC002021 | ETIM 8.0 | EC002021 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143396400 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Rated voltage (III / 3) | 500V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 13.5A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Number of poles | 1 |
Wiring direction | Side-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
