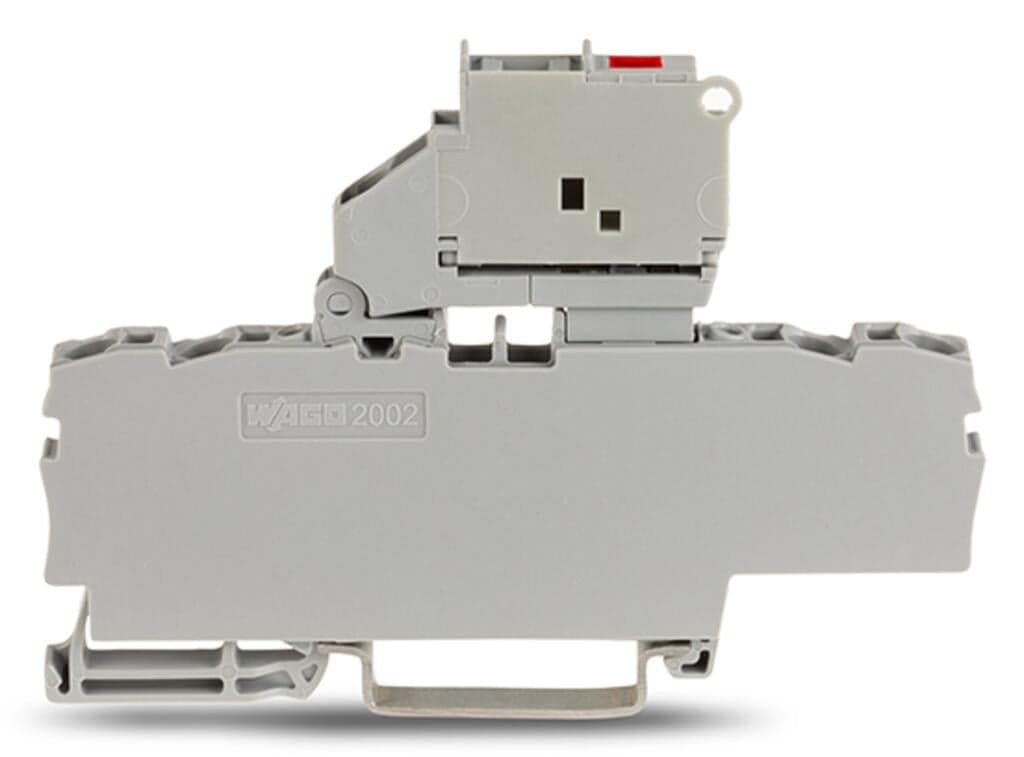

Product Model
2002-1811/1000-541
Selling Points
- 14-Conductor Fuse Design: Supports up to 4 conductors with a 5 x 20 mm miniature metric fuse.
- 2Pivoting Fuse Holder: Easy to use and maintain with a pivoting fuse holder.
- 3LED Blown Fuse Indication: Visual indication of a blown fuse via an LED light.
- 4DIN-Rail Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5 for easy installation.
- 5Push-in CAGE CLAMP: Secure connection technology with push-in CAGE CLAMP for reliable performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 6.2?mm?/ 0.244?inches | Height | 87.5?mm?/ 3.445?inches |
Depth from upper-edge of DIN-rail | 57.6?mm?/ 2.268?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.352MJ | Weight | 16.4g |
Ambient temperature (operation) | -35 … +70 °C | Processing temperature | -35 … +70?°C |
Continuous operating temperature | -35 … +70?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-16 | eCl@ss 9.0 | 27-14-11-16 |
ETIM 9.0 | EC000899 | ETIM 8.0 | EC000899 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | CN |
GTIN | 4066966335811 | Customs tariff number | 8536904000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | d0b30d52-73d3-4a2a-a411-48f0be3ee0e4 | SCIP notification number (Belgium) | 813c9825-02f2-4924-a88c-4748fea40a85 |
SCIP notification number (Bulgaria) | eb314a5a-9b9d-4b08-b7f3-8722968e7b39 | SCIP notification number (Czech Republic) | ee713557-b66f-45d8-a6fe-f7980a062275 |
SCIP notification number (Denmark) | dd7e8b88-3a87-4f7a-85f3-fb69ea3b72c1 | SCIP notification number (Finland) | f9d5db8b-1373-4249-bb38-ec2705911021 |
SCIP notification number (France) | 061286d0-e9b9-45fd-b8f4-23830ea0aab9 | SCIP notification number (Germany) | ae03cb31-d922-426e-8e39-0d15285820be |
SCIP notification number (Hungary) | 59bb5d50-aa15-43ae-8743-b030b65e7d57 | SCIP notification number (Italy) | 00c1a702-920b-40d8-b02a-fb863e652135 |
SCIP notification number (Netherlands) | ed2a5c75-86f2-4bca-a166-1fdc9fdb74b1 | SCIP notification number (Poland) | ecbda195-814e-4317-bdad-d3839b32fa84 |
SCIP notification number (Romania) | 5cba95f8-a425-4c6c-81c2-91cdd82d7ebb | SCIP notification number (Sweden) | b8a321a4-49d6-46ff-a8f3-e9fce4b5d820 |
Ratings per | ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc) | Rated voltage (III / 3) | 250V |
Rated impulse voltage (III / 3) | 6kV | Rated current | 6.3A |
Blown fuse indication | 12 … 30 V | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. | Rated current (note) | Leakage current in case of a blown fuse: LED 2.2 mA (at 24 V operating voltage) |
Ratings per 2 | IEC/EN 60947-7-3 | Rated voltage (III/3) 2 | 30V |
Rated surge voltage (III/3) 2 | 0.8kV | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 30V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 30V | Rated current UL (Use Group C) | 10A |
Rated voltage UL (Use Group D) | 30V | Rated current UL (Use Group D) | 10A |
Rated voltage CSA (Use Group B) | 250V | Rated current CSA (Use Group B) | 6.3A |
Rated voltage CSA (Use Group C) | 30V | Rated current CSA (Use Group C) | 6.3A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 24V |
Rated current (Ex e II) | 6.3A | Power loss (max.) P<sub>l (max.)</sub> (note) | When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN?60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers. |
Power loss P<sub>l</sub> max. overload and short-circuit protection (individual arrangement) | 1.6W | Power loss P<sub>l</sub> max. overload and short-circuit protection (group arrangement) | 1.6W |
Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement) | 2.5W | Power loss P<sub>l</sub> max. short-circuit protection (group arrangement) | 2.5W |
Fuse receptacle | pivoting | Fuse type | Cylindrical fuse; 5 x 20 mm |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
