Product Model

2002-1911/1000-542

In Stock
Last updated: 2025/5/1

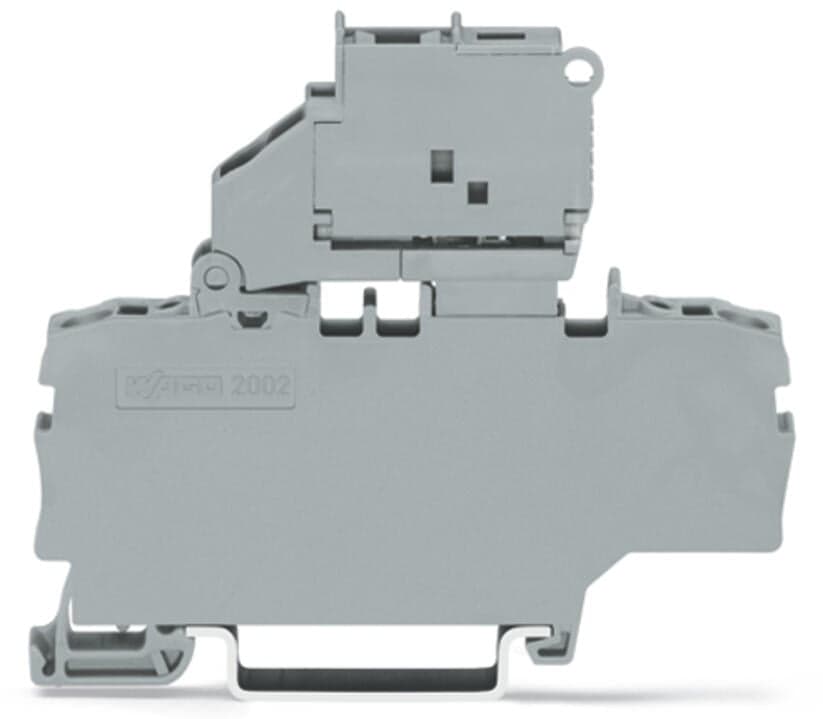

wago 2002-1911/1000-542

Selling Points

  • 1High-quality, robust connectivity solutions for industrial applications.
  • 2Durable design with long-lasting performance in harsh environments.
  • 3Easy installation and maintenance with intuitive design features.
  • 4Compatible with a wide range of industrial systems and protocols.
  • 5Enhanced reliability and reduced downtime with advanced technology.
Product Details
2002-1911/1000-542
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
2
Total number of potentials
1
Number of levels
1
Number of jumper slots
3
Width
6.2?mm?/ 0.244?inches
Height
72.9?mm?/ 2.87?inches
Depth from upper-edge of DIN-rail
57.6?mm?/ 2.268?inches
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
gray
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Fire load
0.244MJ
Weight
14.2g
Ambient temperature (operation)
-35 … +70 °C
Processing temperature
-35 … +70?°C
Continuous operating temperature
-35 … +70?°C
Product Group
22 (TOPJOB S)
eCl@ss 10.0
27-14-11-16
eCl@ss 9.0
27-14-11-16
ETIM 9.0
EC000899
ETIM 8.0
EC000899
ECCN
NO US CLASSIFICATION
PU (SPU)
50?pcs
Packaging type
box
Country of origin
DE
GTIN
4066966335781
Customs tariff number
8536904000
CAS-No.
1303-86-2
REACH Candidate List Substance
Cadmium
RoHS Compliance Status
Compliant,With Exemption
RoHS Exemption
7(a)
SCIP notification number (Austria)
a708b4f7-c436-4b92-a561-f0a882cc0e52
SCIP notification number (Belgium)
5820f8c4-db94-4594-890c-3c3b801de920
SCIP notification number (Bulgaria)
d5a92b2a-9de8-4e6e-838e-3197d26de070
SCIP notification number (Czech Republic)
b29427b6-47c9-4601-8960-9efd4f15be07
SCIP notification number (Denmark)
57d7ee9d-c84f-4b8e-a97f-ad8c3b9511bf
SCIP notification number (Finland)
f8beb8eb-ae74-458f-85c1-ae26db5f1553
SCIP notification number (France)
ff40bbc6-89c8-43a5-9438-39816ed4ed88
SCIP notification number (Germany)
01e103dc-0a3d-4a7f-a3af-1ca248c7359f
SCIP notification number (Hungary)
8baebca5-7af7-4a66-92c0-c4198ad60190
SCIP notification number (Italy)
9e0616de-9338-43c3-bd6c-346fad4e822e
SCIP notification number (Netherlands)
1b751620-0be7-41a9-a2a9-b511578c9e60
SCIP notification number (Poland)
c617ab07-8b6e-4f5d-84bb-ee5f45dbf143
SCIP notification number (Romania)
2a481527-9f2d-4e39-bcbe-67deb5798f79
SCIP notification number (Sweden)
eae23774-d232-471c-9154-f4faf1d1fc01
Ratings per
ATEX: KIWA 17 ATEX 0030 U / IECEx: KIWA 17.0014U (Ex ec IIC Gc)
Rated voltage (III / 3)
250V
Rated impulse voltage (III / 3)
6kV
Rated current
6.3A
Blown fuse indication
30 … 65 V
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Ratings (note)
Electrical ratings are given by the fuse and blown fuse indication.
Rated current (note)
Leakage current in case of a blown fuse: LED 2.2 mA (at 48 V operating voltage)
Ratings per 2
IEC/EN 60947-7-3
Rated voltage (III/3) 2
65V
Rated surge voltage (III/3) 2
1.5kV
Approvals per
CSA 22.2 No 158
Rated voltage UL (Use Group B)
65V
Rated current UL (Use Group B)
6.3A
Rated voltage UL (Use Group C)
65V
Rated current UL (Use Group C)
6.3A
Rated voltage UL (Use Group D)
65V
Rated current UL (Use Group D)
6.3A
Rated voltage CSA (Use Group B)
65V
Rated current CSA (Use Group B)
6.3A
Rated voltage CSA (Use Group C)
65V
Rated current CSA (Use Group C)
6.3A
Reference hazardous areas
See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications”
Rated voltage EN (Ex e II)
48V
Rated current (Ex e II)
6.3A
Power loss (max.) P<sub>l (max.)</sub> (note)
When selecting glass cartridge fuses, make sure that the maximum power loss listed below is not exceeded. The power loss is determined according to IEC or EN?60947-7-3/VDE 0611-6 at 23°C. The temperature rise of the terminal block must be checked according to their application and mounting. Higher ambient temperatures represent an additional impact on miniature fuses. Therefore, in such applications, the rated current must be reduced if necessary. More details are available from the manufacturers.
Power loss P<sub>l</sub> max. overload and short-circuit protection (individual arrangement)
1.6W
Power loss P<sub>l</sub> max. overload and short-circuit protection (group arrangement)
1.6W
Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement)
2.5W
Power loss P<sub>l</sub> max. short-circuit protection (group arrangement)
2.5W
Fuse receptacle
pivoting
Fuse type
Cylindrical fuse; 5 x 20 mm
Connection technology
Push-in CAGE CLAMP?
Actuation type
Operating tool
Connectable conductor materials
Copper
Nominal cross-section
2.5 mm2
Solid conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Solid conductor; push-in termination
0.75 … 4?mm2?/ 18 … 12?AWG
Fine-stranded conductor
0.25 … 4?mm2?/ 22 … 12?AWG
Fine-stranded conductor; with insulated ferrule
0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with ferrule; push-in termination
1 … 2.5?mm2?/ 18 … 14?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
10 … 12?mm?/ 0.39 … 0.47?inches
Wiring direction
Front-entry wiring
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment
DIN EN 50155 (VDE 0115-200):2022-06
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests
DIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Installation location
Service life test, Category?1, Class?A/B
Function test with noise-like vibration
Test passed according to Section 8 of the standard
Frequency
f1= 5 Hz to f2= 150 Hz
Acceleration
5g (highest test level used for all axes)
Test duration per axis
5 h
Test directions
X, Y and Z axes
Monitoring for contact faults/interruptions
Passed
Voltage drop measurement before and after each axis
Passed
Simulated service life test through increased levels of noise-like vibration
Test passed according to Section 9 of the standard
Extended test scope: Monitoring for contact faults/interruptions
Passed
Extended test scope: Voltage drop measurement before and after each axis
Passed
Shock test
Test passed according to Section 10 of the standard
Shock form
Half sine
Shock duration
30 ms
Number of shocks per axis
3 pos. und 3 neg.
Vibration and shock stress for rolling stock equipment
Passed

Specifications may be subject to change without notice
