Product Model
2002-2211/1000-410
Selling Points

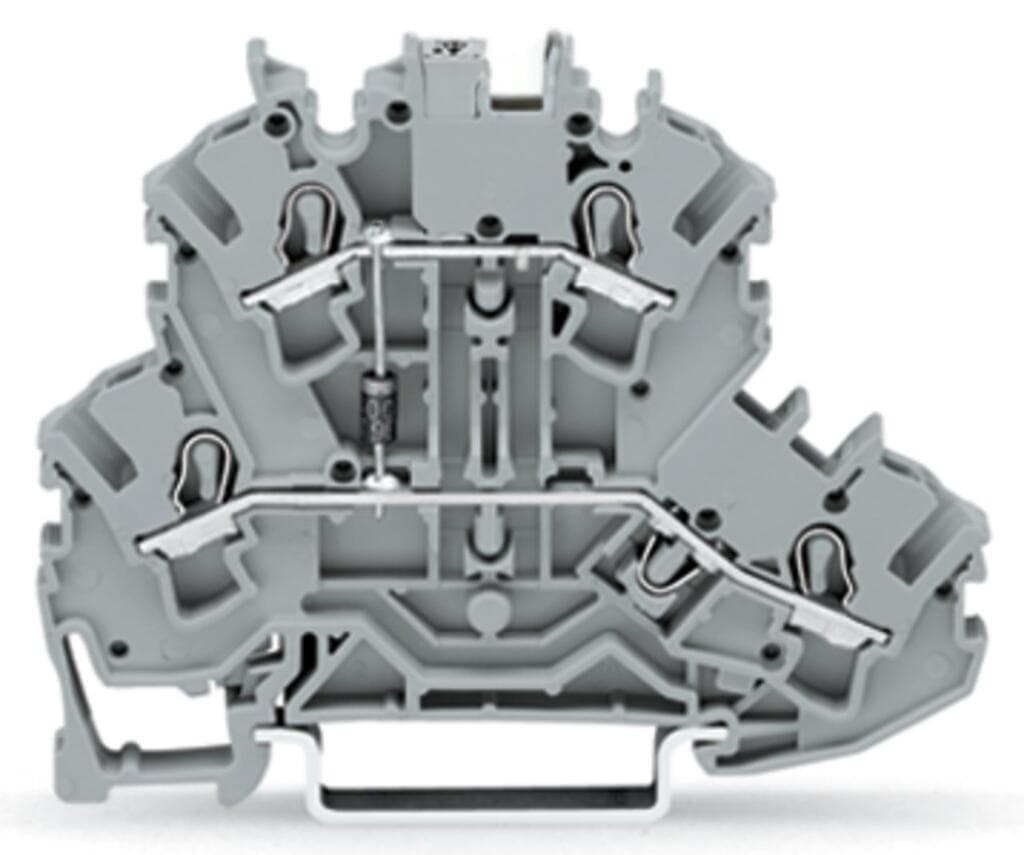

- 1Double-Deck Design: Accommodates four wires with two push-in connections on each level.
- 2Built-in Diode: Includes a 1N4007 diode for protection and regulation.
- 3Push-in CAGE CLAMP: Easy and secure connection technology.
- 4DIN-35 Rail Mounting: Compatible with DIN-35 rail mounting systems.
- 5Gray Color: Durable and easy-to-spot gray color for efficient use in various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Width | 5.2?mm?/ 0.205?inches |
Height | 69.7?mm?/ 2.744?inches | Depth from upper-edge of DIN-rail | 51.7?mm?/ 2.035?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.219MJ |
Weight | 10.3g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454375577 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | d0547142-b484-4014-9789-251496d9dbb9 | SCIP notification number (Belgium) | 6a5c9ecd-cd71-44ac-bc47-5bd3d8b9b080 |
SCIP notification number (Bulgaria) | 555d09df-ff68-4161-944f-114e551a03da | SCIP notification number (Czech Republic) | 2537ba6a-d601-4123-ac21-247e1cef1f99 |
SCIP notification number (Denmark) | fc5815e1-6544-49c7-ba45-e2e5075bddcd | SCIP notification number (Finland) | f6d74bf5-1d42-430d-bcf0-a65f56fdc39b |
SCIP notification number (France) | 4cd61424-31f4-40a0-8163-ceca71545c80 | SCIP notification number (Germany) | 543f8bdc-10d9-40b6-a05b-f508a1bd970a |
SCIP notification number (Hungary) | 93cf9d5b-ab9c-4d28-8396-33a190a81a19 | SCIP notification number (Italy) | a2ee0963-90bc-48f8-aa8b-b960cf4cb748 |
SCIP notification number (Netherlands) | 5e93df54-767e-4afc-880f-6943f78aaa70 | SCIP notification number (Poland) | e1f930f9-980a-4293-a199-6b1ef7d3f7c3 |
SCIP notification number (Romania) | 57ee85d0-d36d-452a-99a2-de155adfd59f | SCIP notification number (Sweden) | f6f6f8ae-477e-41f1-a3de-7b0d2710f4f1 |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
