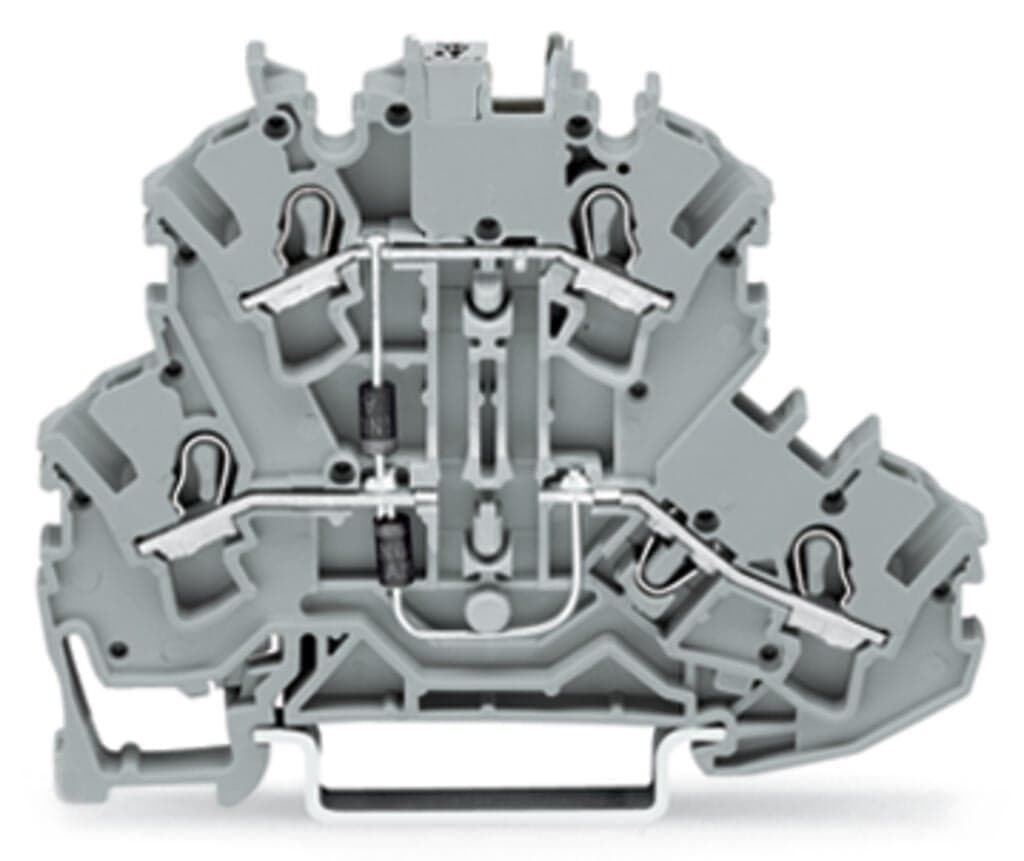

Product Model
2002-2214/1000-491
Selling Points
- 1High-density wiring in a compact 5.2mm width.
- 2Compatible with DIN-rail 35 x 15 and 35 x 7.5.
- 3Features two diodes 1N4007 with top and right-side anodes.
- 4Utilizes push-in CAGE CLAMP connections for secure wiring.
- 5Rated for 0.5A current and suitable for wire sizes 0.25-4mm² or #22AWG to #12AWG.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 4 |
Number of levels | 2 | Width | 5.2?mm?/ 0.205?inches |
Height | 69.7?mm?/ 2.744?inches | Depth from upper-edge of DIN-rail | 51.7?mm?/ 2.035?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.234MJ |
Weight | 10.1g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-27 | eCl@ss 9.0 | 27-14-11-27 |
ETIM 9.0 | EC000903 | ETIM 8.0 | EC000903 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454369286 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | ff067eec-c0eb-4f8b-834b-995f7c5c7e33 | SCIP notification number (Belgium) | a400b970-ca3c-4668-8786-39cb673f2e96 |
SCIP notification number (Bulgaria) | 329f5e80-00db-4e75-bcc5-1740123ec36a | SCIP notification number (Czech Republic) | 13f2697e-f113-44bb-a3ab-238cb8c192a0 |
SCIP notification number (Denmark) | 5af5dde0-a3d4-4fe4-ab1e-038feed26c9e | SCIP notification number (Finland) | 71cd3f7e-b5c6-48e8-ac73-689e8dc0a50c |
SCIP notification number (France) | d7082c95-a3be-45fa-8c6b-b55c45d38383 | SCIP notification number (Germany) | 3d626507-5837-42bd-ac0c-e7e5d85087f5 |
SCIP notification number (Hungary) | 62a16d0c-8eb3-4b6d-a3e6-110d7cfc04ea | SCIP notification number (Italy) | 2c909865-0bad-4628-af81-44b491db7bda |
SCIP notification number (Netherlands) | 19689ef4-4387-44d1-a1bc-b3401b60c653 | SCIP notification number (Poland) | ec95b760-47c5-4a00-b13b-0a6260947e48 |
SCIP notification number (Romania) | 2b7bfbde-8f45-4cd5-944c-1d487fee344b | SCIP notification number (Sweden) | 844c3bc8-a506-426e-868d-2a0924ced4ed |
Ratings per | IEC/EN 60947-7-1 | Rated current | 0.5A |
Nominal voltage | 250V | Reverse voltage | 1,000V |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 2.5 mm2 |
Solid conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Solid conductor; push-in termination | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.25 … 4?mm2?/ 22 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2?/ 22 … 14?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 1 … 2.5?mm2?/ 18 … 14?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 10 … 12?mm?/ 0.39 … 0.47?inches | Wiring direction | Front-entry wiring |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
