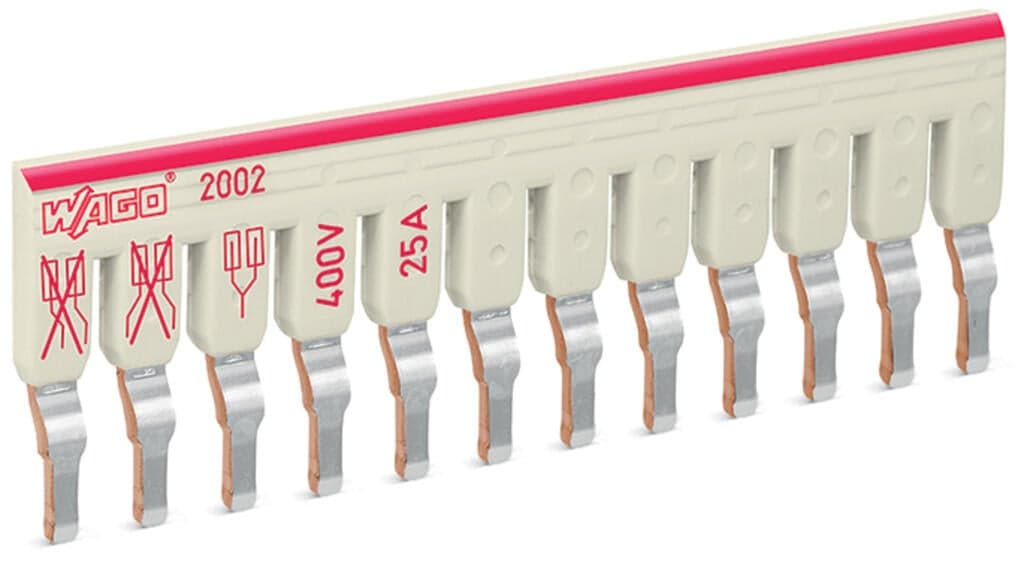

Product Model
2002-482
Selling Points
- 1High Current Rating: Handles up to 25 A of current.
- 2Durable Construction: Made from high-quality materials for long-lasting performance.
- 3Insulated Design: Ensures safe and reliable connections.
- 4Easy Installation: Angled flat pins for straightforward setup.
- 5Compliant with Regulations: Meets RoHS and SVHC standards for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 61.2?mm?/ 2.409?inches | Jumper assignment | 1-2-3-4-5-6-7-8-9-10-11-12 |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Fire load | 0.021MJ | Weight | 6.1g |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-40 |
eCl@ss 9.0 | 27-14-11-40 | ETIM 9.0 | EC000489 |
ETIM 8.0 | EC000489 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 25?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4055143692366 |
Customs tariff number | 8536698000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 25A | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
