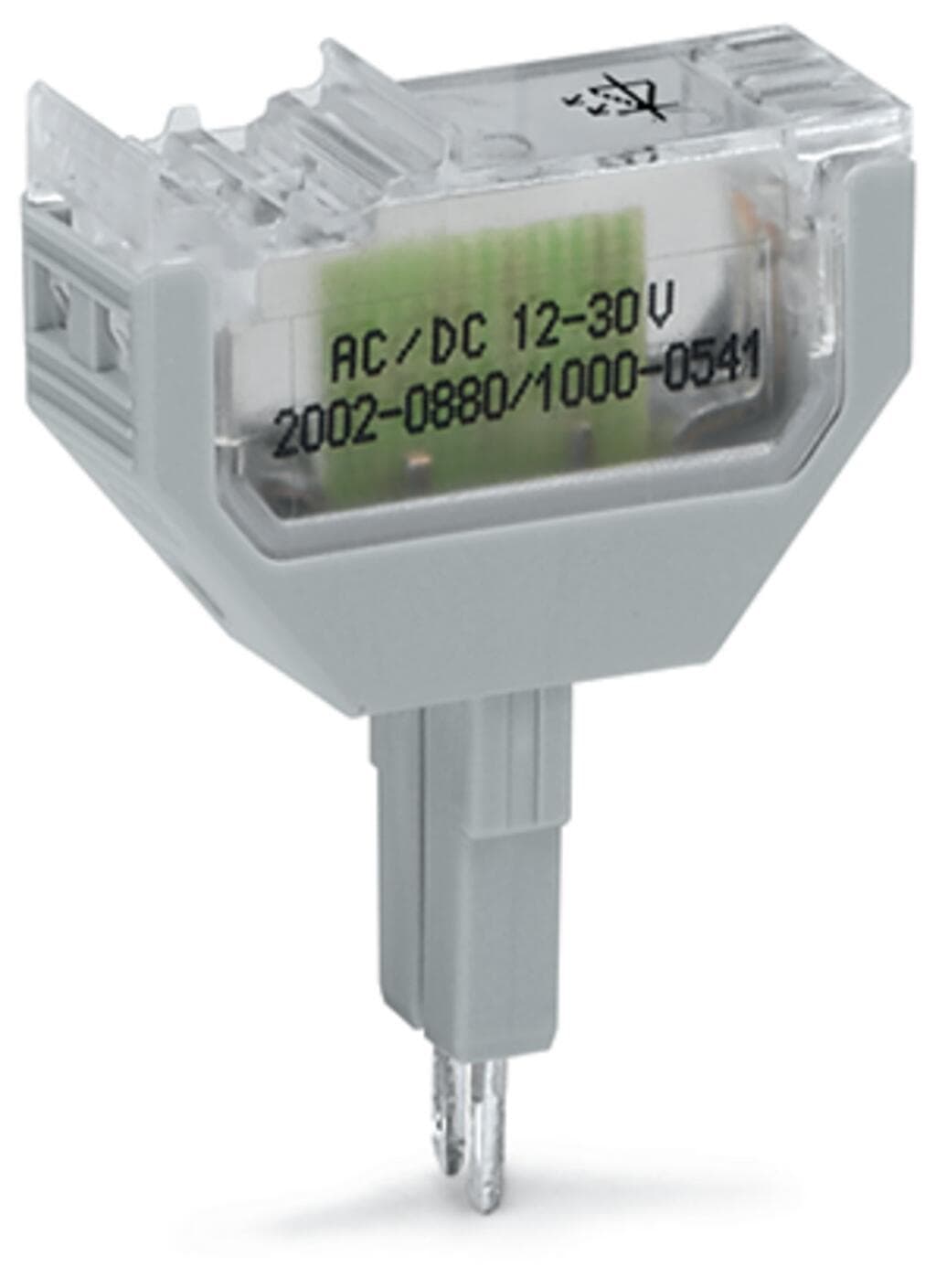

Product Model
2002-880/1000-836
Selling Points
- 1Built with high-quality materials for long-lasting performance.
- 2Push-in termination for quick and secure conductor insertion.
- 3Meets stringent safety standards for hazardous environments.
- 4Suitable for DIN-rail 35 x 15 and 35 x 7.5 mounting options.
- 5Compact size with minimal space requirements for optimal use in industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10.4?mm?/ 0.409?inches | Marking level | Center marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.127MJ |
Weight | 4.1g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-49 | eCl@ss 9.0 | 27-14-11-49 |
ETIM 9.0 | EC002018 | ETIM 8.0 | EC002018 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454913960 | Customs tariff number | 8536694040 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Bulgaria) | c36053e1-967d-4c1f-a1db-18cef9b9e010 | SCIP notification number (Czech Republic) | ee46a995-fdd8-4215-9363-436e620c9293 |
Rated current | 0.003A | Operation status indicator | 230 V |
Specifications may be subject to change without notice
