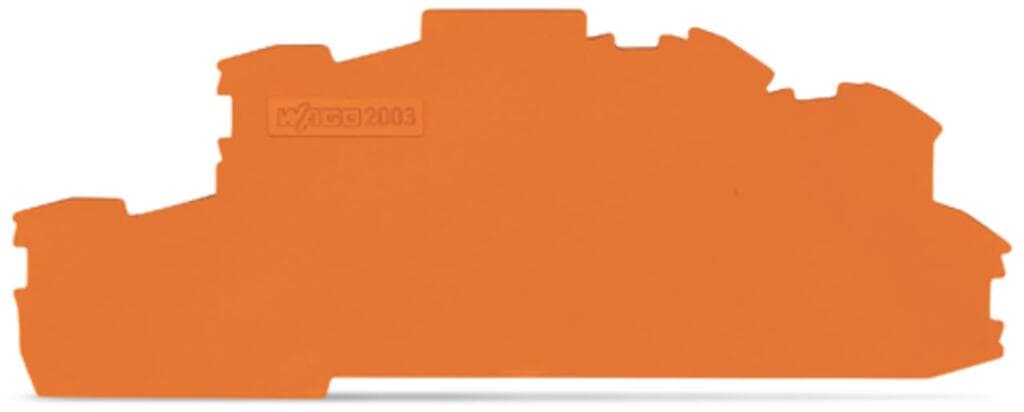

Product Model
2003-6693
Selling Points
- 1Secure Electrical Connections: Ensure reliable and safe connections with WAGO's 2003-6693 end plates.
- 2Versatile Applications: Compatible with various terminal blocks, ideal for fuse terminal block use in distribution boards.
- 3Easy Installation: Simple to integrate into your setup, reducing installation time and effort.
- 4Durable Construction: Built with high-quality materials for long-lasting performance.
- 5Comprehensive Compatibility: Works seamlessly with WAGO's Installation Rail-Mount Terminal Blocks for efficient building distribution systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 1?mm?/ 0.039?inches | Height | 110?mm?/ 4.331?inches |
Depth | 44.3?mm?/ 1.744?inches | Mounting type | snap-on type |
Note (material data) | Information on material specifications can be found here | Color | orange |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.124MJ |
Weight | 4.1g | Product Group | 22 (TOPJOB S) |
eCl@ss 10.0 | 27-14-11-33 | eCl@ss 9.0 | 27-14-11-33 |
ETIM 9.0 | EC000886 | ETIM 8.0 | EC000886 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821793489 | Customs tariff number | 8538906000 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
