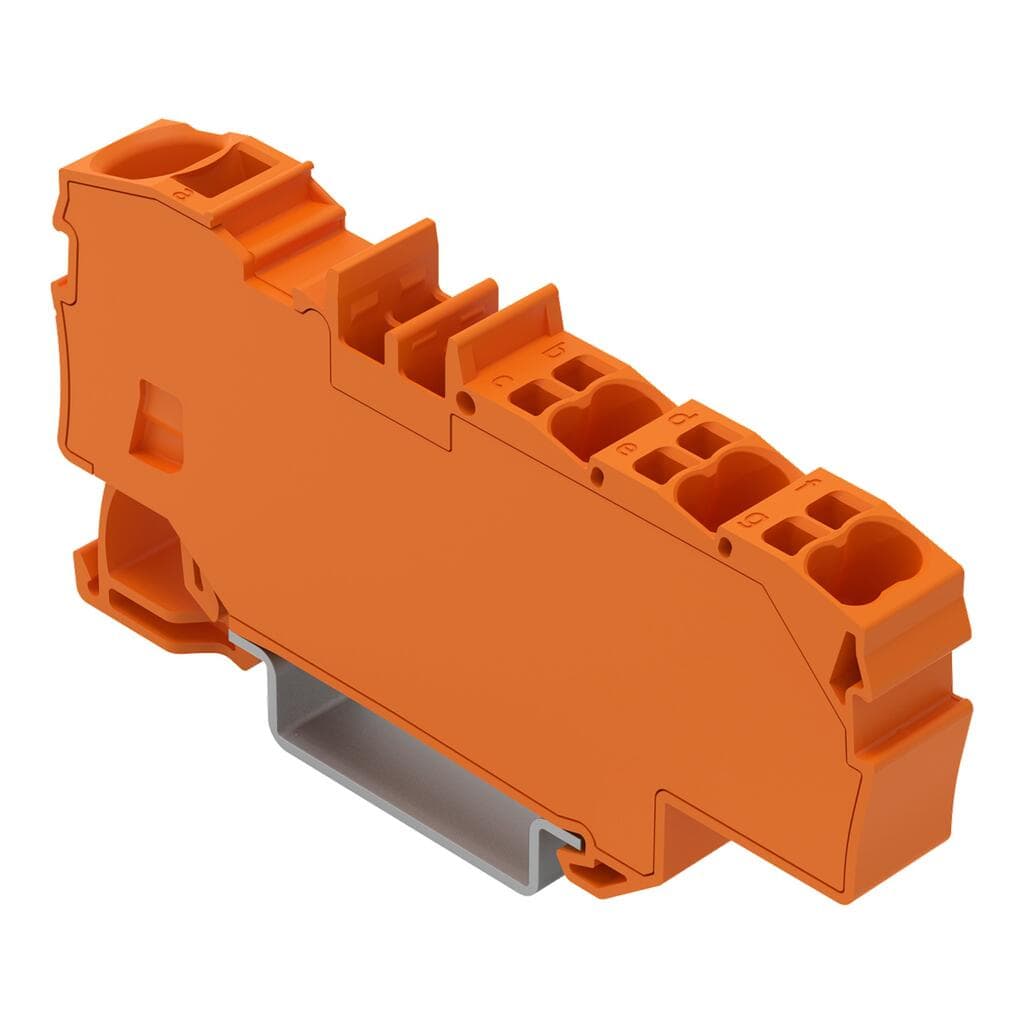

wago 2006-8032

Selling Points

  • 1Compact design for space-saving applications.
  • 2High current rating up to 41 Amp.
  • 3Compatible with TOPJOB S clamps and accessories.
  • 4Integrated end plate with side and center marking.
  • 5Push-in CAGE CLAMP technology for easy wiring.
Product Details
2006-8032
wago

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Clamping units
7
Total number of potentials
1
Number of levels
1
Number of jumper slots
2
Width
9?mm?/ 0.354?inches
Height
73.8?mm?/ 2.905?inches
Depth from upper-edge of DIN-rail
32.9?mm?/ 1.295?inches
Mounting type
DIN-35 rail
Marking level
Center/side marking
Note (material data)
Information on material specifications can be found here
Color
orange
Material group
I
Insulation material (main housing)
Polyamide (PA66)
Flammability class per UL94
V0
Clamping spring material
Chrome-nickel spring steel (CrNi)
Fire load
0.316MJ
Weight
16.2g
Processing temperature
-35 … +85?°C
Continuous operating temperature
-60 … +105?°C
ETIM 9.0
EC000897
ETIM 8.0
EC000897
ECCN
NO US CLASSIFICATION
PU (SPU)
12?pcs
Packaging type
Box
Country of origin
DE
GTIN
4066966378948
Customs tariff number
85369010000
RoHS Compliance Status
Compliant,No Exemption
Ratings per
IEC/EN 60947-7-1
Rated voltage (III / 3)
800V
Rated impulse voltage (III / 3)
8kV
Rated current
41A
Current at conductor cross-section (max.) mm2
57A
Legend (ratings)
(III / 3) ? Overvoltage category III / Pollution degree 3
Power loss, per pole (potential)
1.311W
Rated current I<sub>N</sub> for specified power loss
41A
Resistance value for specified, current-dependent power loss
0.001Ω
Connection type 1
Input
Connection technology
Push-in CAGE CLAMP?
Total number of connection points
1
Actuation type
Operating tool
Connectable conductor materials
Copper
Nominal cross-section
6 mm2
Solid conductor
0.5 … 10?mm2?/ 20 … 8?AWG
Solid conductor; push-in termination
2.5 … 10?mm2?/ 14 … 8?AWG
Fine-stranded conductor
0.5 … 10?mm2?/ 20 … 8?AWG
Fine-stranded conductor; with insulated ferrule
0.5 … 6?mm2?/ 20 … 10?AWG
Fine-stranded conductor; with ferrule; push-in termination
2.5 … 6?mm2?/ 16 … 10?AWG
Note (conductor cross-section)
Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.
Strip length
13 … 15?mm?/ 0.51 … 0.59?inches
Wiring direction
Front-entry wiring
Connection type 2
Output
Connection technology 2
Push-in CAGE CLAMP?
Number of connection points 2
6
Nominal cross-section 2
1.5?mm2
Solid conductor 2
0.25 … 2.5?mm2?/ 22 … 14?AWG
Solid conductor; push-in termination 2
0.75 … 2.5?mm2?/ 18 … 14?AWG
Fine-stranded conductor 2
0.25 … 2.5?mm2?/ 22 … 14?AWG
Fine-stranded conductor; with insulated ferrule 2
0.25 … 1.5?mm2?/ 22 … 16?AWG
Fine-stranded conductor; with ferrule; push-in termination; 2
0.75 … 1.5?mm2?/ 18 … 16?AWG
Strip length 2
9 … 11?mm?/ 0.35 … 0.43?inches

Specifications may be subject to change without notice
