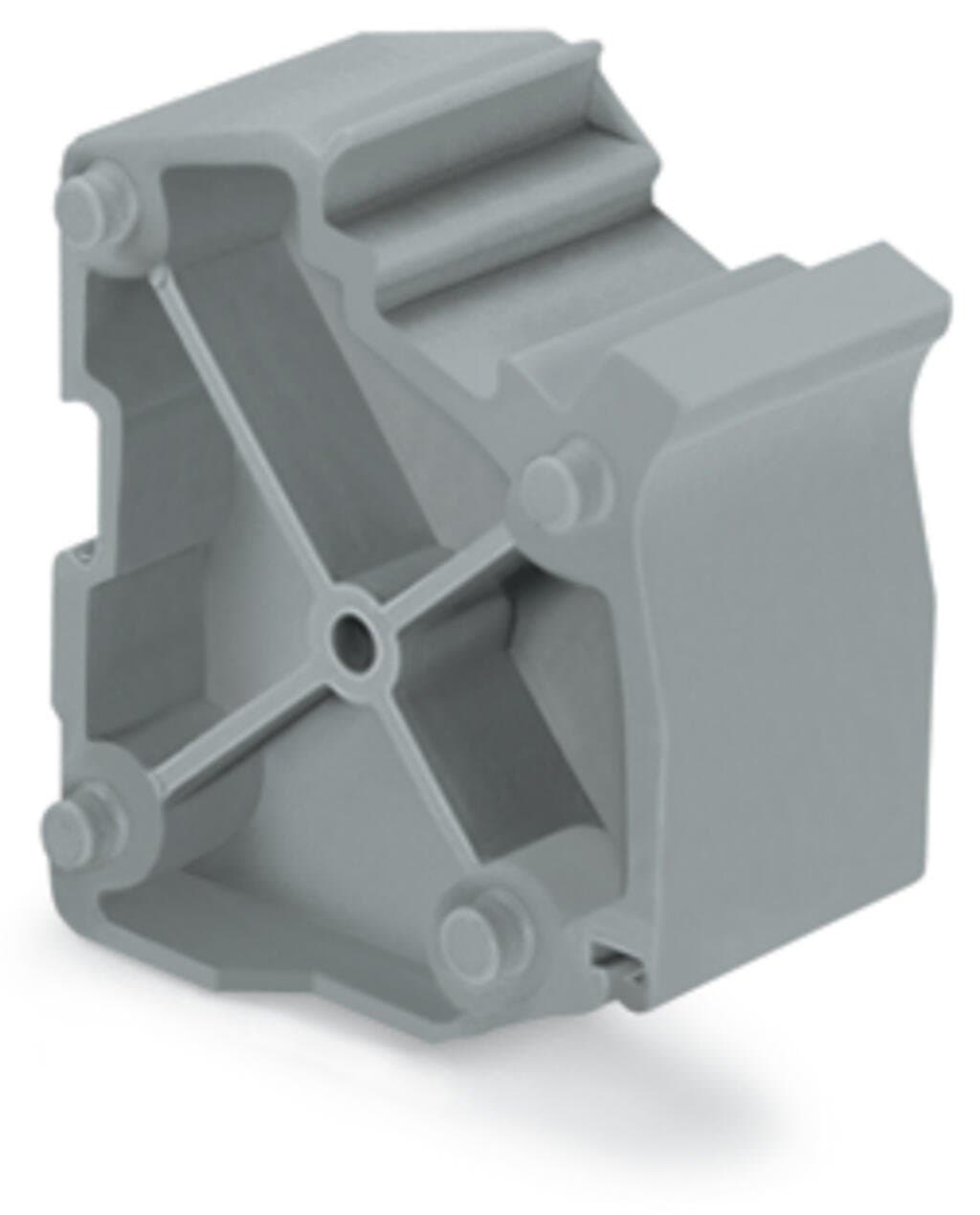

Product Model
2016-549
Selling Points
- 1Precision-engineered for rail-mounted systems
- 2Gray color for easy identification
- 3Available in multiples of 25 for efficient ordering
- 4High-quality electrical spacer module
- 5Compatible with WAGO's TOPJOB S series
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 12?mm?/ 0.472?inches | Module width | 12?mm?/ 0.472?inches |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.081MJ | Weight | 2.7g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
Product Group | 22 (TOPJOB S) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821263760 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
