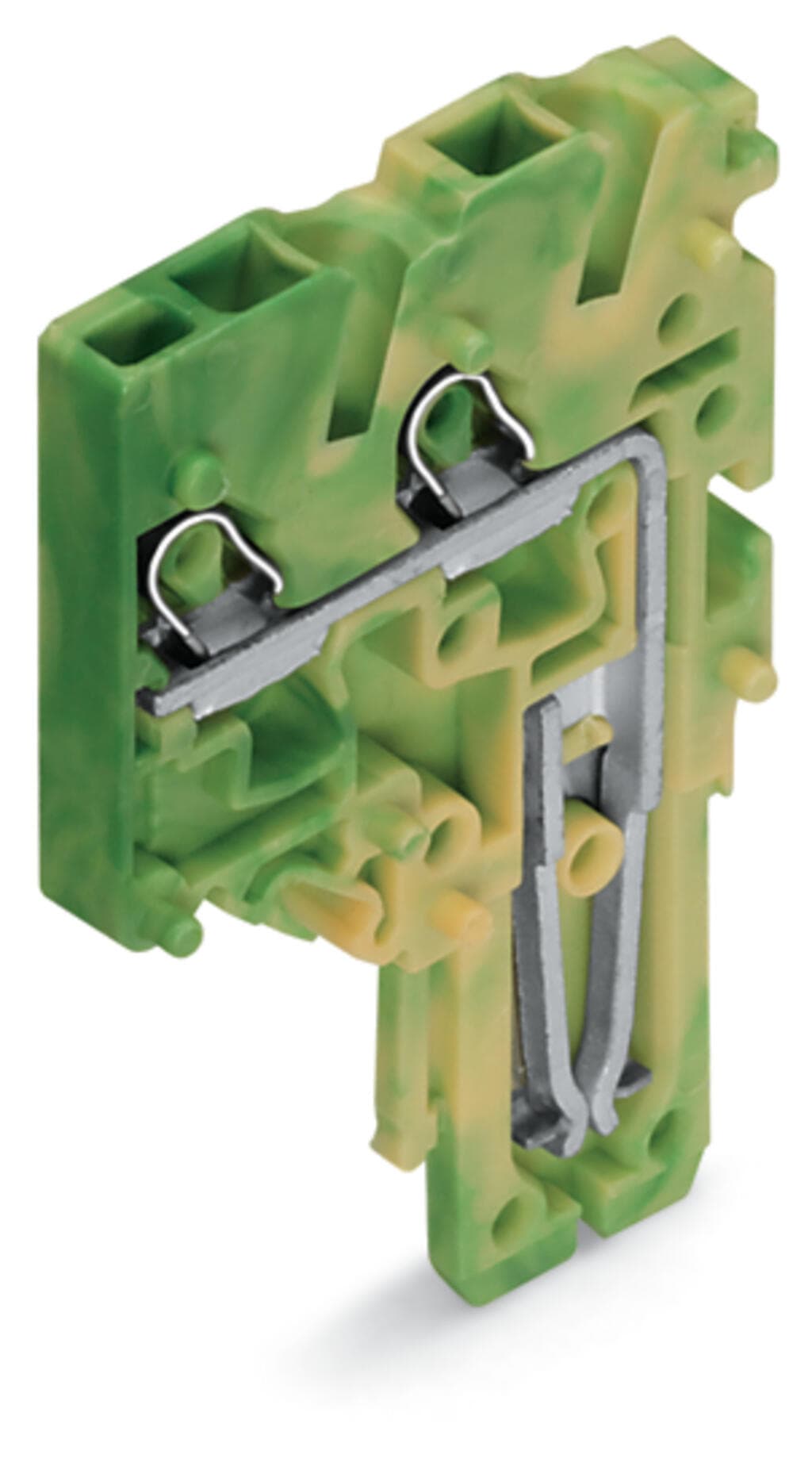

Product Model
2020-287
Selling Points
- 1Rated at 500 V/32 A for 4 mm² (AWG 12) conductors.
- 2Terminal block width of just 3.5 mm for maximum space efficiency.
- 3Ensures safe and reliable connections, compliant with regulations.
- 4Compatible with heavy-duty connectors and suitable for various industrial settings.
- 5Features a locking lever and strain relief plate for secure and efficient assembly.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | According to EN 61984, pluggable connectors without current interrupting capacity must not be mated or unmated when live or under load. | Safety information 2 | Notice: An appropriate end plate must be applied to the carrier terminal blocks after each female plug. |
Clamping units | 2 | Total number of potentials | 1 |
Width | 3.5?mm?/ 0.138?inches | Height | 40.5?mm?/ 1.594?inches |
Depth | 25?mm?/ 0.984?inches | Variable coding | Yes |
Marking level | Side marking | Anti-rotation protection | Yes |
Contact type (pluggable connector) | Female connector/socket | Connector (connection type) | for conductor |
Mismating protection | No | Plugging without loss of pin spacing | Yes |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.043MJ |
Weight | 2.7g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | Product Group | 18 (X-COM-System) |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 250?pcs |
Packaging type | Box | Country of origin | CN |
GTIN | 4050821245285 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 61984 |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Operating tool |
Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5 … 1.5?mm2?/ 20 … 16?AWG |
Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75?mm2?/ 24 … 18?AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75?mm2?/ 20 … 18?AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches | Number of poles | 1 |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
