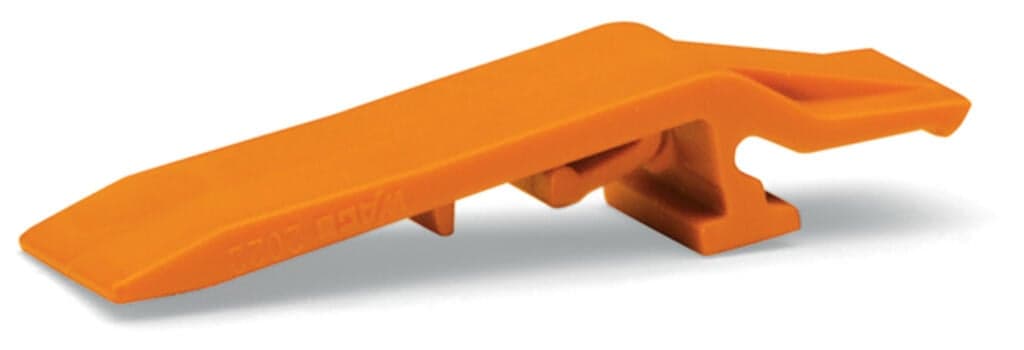

Product Model
2022-152
Selling Points
- 1Snap-on Design: Easy to snap onto 1-conductor female plugs with 2 poles or more.
- 2Orange Color: Bright orange color for easy identification.
- 3Compact Dimensions: 9.6mm width for space-efficient use.
- 4High Fire Load: Meets 0.024 MJ fire load specifications.
- 5RoHS Compliant: Compliant with RoHS regulations for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 9.6?mm?/ 0.378?inches | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.024MJ | Weight | 0.8g |
Product Group | 18 (X-COM-System) | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454732776 |
Customs tariff number | 8538906000 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
