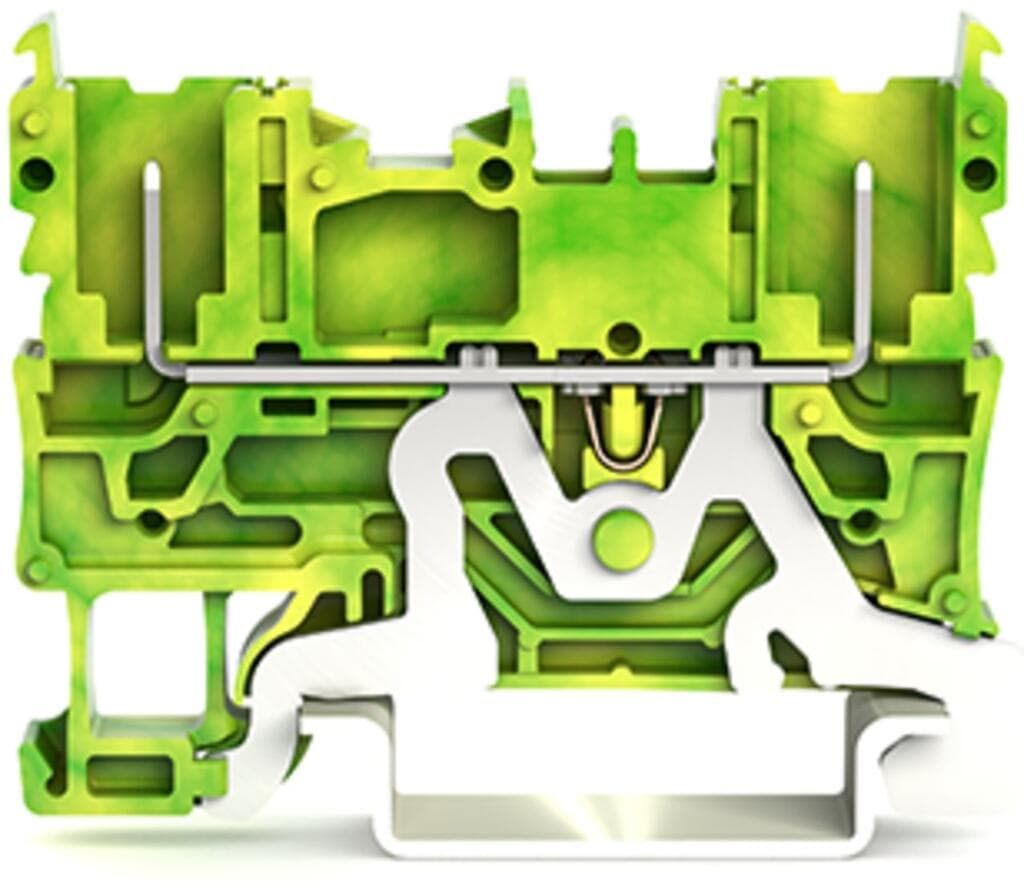

Product Model
2022-1607
Selling Points
- 1Designed for DIN-rail mounting (35 x 15 and 35 x 7.5).
- 2Supports one grounding/protective-earth connection.
- 3Accommodates two wires via plug-in pin connections.
- 4Features side and center marking slots for easy identification.
- 5Green-yellow color for clear visibility in electrical systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | A separator plate (Item No. 209-191) or a 10 mm end stop (Item No. 249-117) must be placed at the end of a WAGO X-COM?-SYSTEM terminal strip. | Female plug slots | 2 |
Total number of potentials | 1 | Number of levels | 1 |
Width | 5.2?mm?/ 0.205?inches | Height | 52?mm?/ 2.047?inches |
Depth from upper-edge of DIN-rail | 32.5?mm?/ 1.28?inches | Design | horizontal type |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | green-yellow |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Weight | 8.3g |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000901 |
ETIM 8.0 | EC000901 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?pcs | Packaging type | Box |
Country of origin | CN | GTIN | 4055143828871 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60947-7-2 |
Specifications may be subject to change without notice
