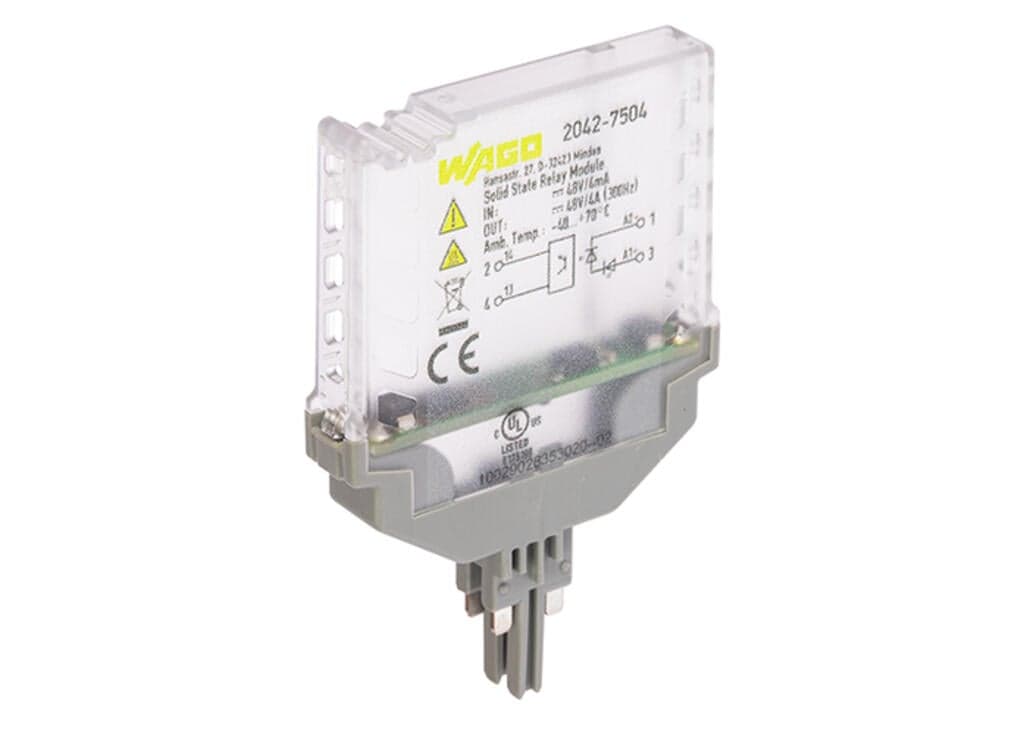

Product Model
2042-7504
Selling Points
- 1Reliable Signal Transmission: Ensures stable operation in harsh environments.
- 2Wide Temperature Range: Operates from -40°C to +70°C, suitable for railway applications.
- 3Compact Design: Measuring 10 mm in width, perfect for space-constrained installations.
- 4High Current Capacity: Handles limiting continuous current of up to 4 A.
- 5Easy Installation: Features a 2-wire connection with push-in CAGE CLAMP technology.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network. | Overvoltage category | II |
Pollution degree | 2 | Dielectric strength (control/load circuit) (AC, 1?min) | 3?kVrms |
Protection type | IP20 | Width | 10.3?mm?/ 0.406?inches |
Height | 77.7?mm?/ 3.059?inches | Height from the surface | 59.3?mm?/ 2.335?inches |
Depth | 52?mm?/ 2.047?inches | Mounting type | Pluggable module for TOPJOB?S carrier terminal block |
Note (material data) | Information on material specifications can be found here | Flammability class per UL94 | V0 |
Fire load | 0.133MJ | Weight | 14.6g |
Ambient temperature (operation at U<sub>N</sub>) | -40 … +70 °C | Ambient temperature (storage) | -40 … +85 °C |
Processing temperature | -25 … +50?°C | Operating altitude (max.) | 2000m |
Standards/specifications | EN 61010-2-201 | eCl@ss 10.0 | 27-14-11-49 |
eCl@ss 9.0 | 27-14-11-49 | ETIM 9.0 | EC002018 |
ETIM 8.0 | EC002018 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1?pcs | Packaging type | Bag |
Country of origin | DE | GTIN | 4055143751292 |
Customs tariff number | 85365005000 | CAS-No. | 1303-86-2 |
REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | 52c3ee0b-25cc-4dfd-88a0-025ec7d70aff |
SCIP notification number (Belgium) | dc25a5b7-03ea-48e0-b9a2-81885c569dd3 | SCIP notification number (Bulgaria) | ee80b214-e6b8-463c-9b7a-c7eb0b965f4c |
SCIP notification number (Czech Republic) | 88d1a0ec-54b1-460c-b6e4-522932a4795f | SCIP notification number (Denmark) | 7b11e600-3391-48d6-9085-617a85bee8ce |
SCIP notification number (Finland) | 5d6b72aa-3505-438e-91ce-4d2654ceb98d | SCIP notification number (France) | 1b548f39-a342-46ee-b64a-7ede5e6f8382 |
SCIP notification number (Germany) | 78179552-4f98-4e44-a37f-f4a427f73f6c | SCIP notification number (Hungary) | f02fd5d1-41a9-4564-bbdd-3e0da85ebbf6 |
SCIP notification number (Italy) | ebd2729c-c069-40cf-949b-3e1cb65b037e | SCIP notification number (Netherlands) | 8cb5c2db-4658-4159-aa66-33248c527b64 |
SCIP notification number (Poland) | f373ecc0-cbd0-4aee-8eb4-c21a4c74d2cf | SCIP notification number (Romania) | ac87b6e9-8b2a-4707-b5fc-6409eb90dbf4 |
SCIP notification number (Sweden) | 7e9fdf3e-9047-453e-aa42-201a6aab992c | Nominal input voltage U<sub>N</sub> | DC?24?V (SELV) |
Input voltage range (low level) | DC?0 … 6?V | Input voltage range (high level) | DC?10 … 53?V |
Nominal input current at U<sub>N</sub> | 3?mA | Input current range | 3 … 5?mA |
Circuit type | 2-wire connection | Limiting continuous current | 4?A |
Nominal output voltage | DC?48?V (SELV) | Output voltage range | DC 0 … 53?V |
Voltage drop | ≤ 1?VDC | Switching current (min.) | 20?μA |
Turn-on time | ≤?12?μs | Turn-off time | ≤?32?μs |
Switching frequency | ≤?300?Hz | Status indicator | Green LED |
Specifications may be subject to change without notice
