Product Model
2060-1852/998-404
Selling Points

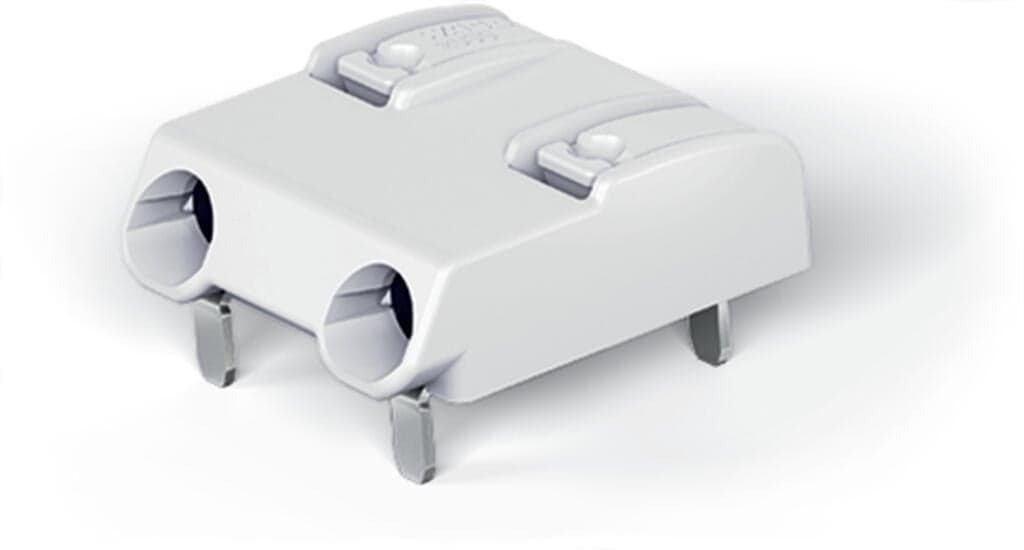

- 1The WAGO 2060-1852/998-404 THR PCB terminal block offers reliable push-in connections with 8mm spacing and 2 poles.
- 2Designed for lead-free soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to 260°C peak temperature.
- 3Supports wire sizes from 24 AWG to 18 AWG, accommodating various conductor types.
- 4Just 4.5 mm tall, making it ideal for space-constrained applications.
- 5Available in tape-and-reel packaging for seamless integration into automated assembly processes.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Recommendation | Recommendation for stencil:150 μm material thicknessStencil hole diameter identical to metal-plated PCB hole outer diameter |
Clamping units | 2 | Total number of potentials | 2 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 8?mm?/ 0.314?inches | Width | 11.9?mm?/ 0.467?inches |
Height | 6.9?mm?/ 0.272?inches | Height from the surface | 4.5?mm?/ 0.177?inches |
Depth | 12.7?mm?/ 0.5?inches | Solder pin length | 2.4mm |
Solder pin dimensions | 1.2 x 0.75?mm | Plated through-hole diameter (THR) | 1.5(+0.1)mm |
Reel diameter of tape-and-reel packaging | 330mm | Tape width | 24mm |
PCB contact | THR | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyphthalamide (PPA GF) | Flammability class per UL94 | V0 |
Clamping spring material | Copper alloy | Contact material | Copper alloy |
Contact plating | Tin | Weight | 0.6g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +105?°C |
eCl@ss 10.0 | 27-14-11-06 | eCl@ss 9.0 | 27-14-11-06 |
ETIM 9.0 | EC001284 | ETIM 8.0 | EC001284 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 4950?(550)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4055143331173 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 9A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Connection technology | Push-in CAGE CLAMP? | Actuation type | Push-button |
Solid conductor | 0.2 … 0.75?mm2?/ 24 … 18?AWG | Fine-stranded conductor | 0.2 … 0.75?mm2?/ 24 … 18?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 0.34?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 0.34?mm2 |
Strip length | 6 … 7?mm?/ 0.24 … 0.28?inches | Conductor connection direction to PCB | 0° |
Number of poles | 2 |
