Product Model

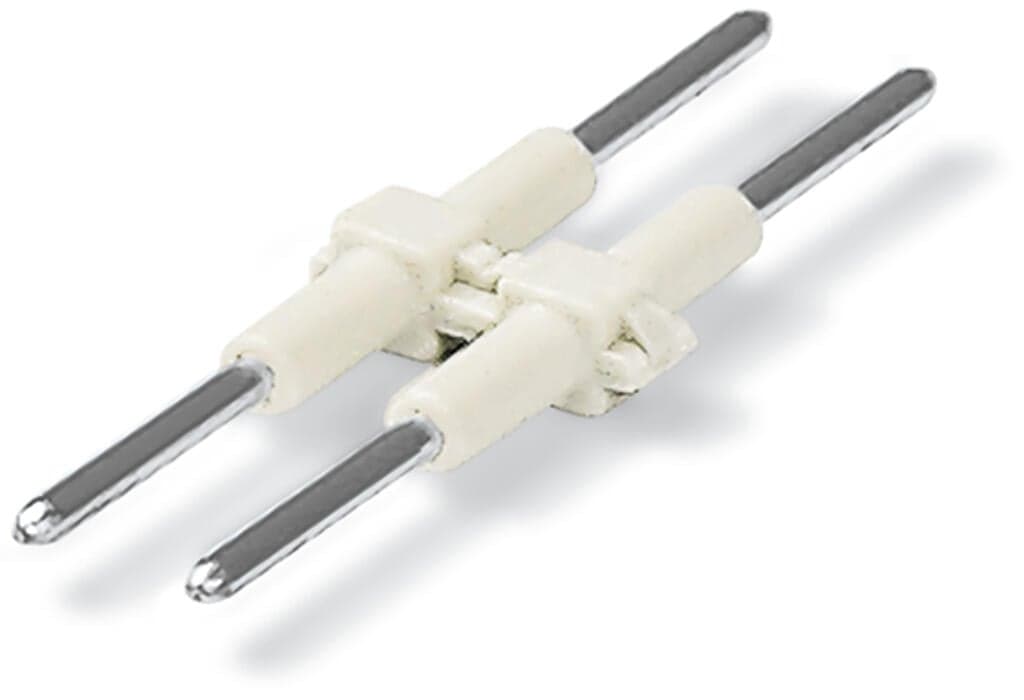

2060-952/030-000
Selling Points
- 1High Reliability: Ensures secure and durable connections on PCBs.
- 2Easy Installation: Simple push-button design for quick and effortless assembly.
- 3Compact Design: Space-saving SMT (Surface Mount Technology) design for efficient PCB layout.
- 4Versatile Applications: Suitable for various industrial and automation applications.
- 5Free CAD Models: Available for download in multiple CAD/BIM/CAE systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Notice:Only suitable for 2060-45x, not for 2060-40x. | Total number of potentials | 2 |
Pin spacing | 4?mm?/ 0.157?inches | Width | 7.4?mm?/ 0.291?inches |
Height | 2.6?mm?/ 0.102?inches | Depth | 30?mm?/ 1.181?inches |
Mating cycles (max.) | 10 | Number of mating cycles | 10 connections/disconnections (max.) |
Suitable | for SMD PCB terminal blocks (2060 Series) | Note (material data) | Information on material specifications can be found here |
Color | white | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Contact material | Copper alloy | Contact plating | Silver |
Fire load | 0.003MJ | Weight | 0.5g |
Limit temperature range | -60 … +105?°C | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 500?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4055143339827 |
Customs tariff number | 8536908585 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 63V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 9A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Rated voltage (UL 1977) | 250V |
Rated current UL 1977 | 9A | Number of poles | 2 |
Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 | Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
Spectrum/Installation location | Service life test, Category?1, Class?A/B | Function test with noise-like vibration | Test passed according to Section 8 of the standard |
Frequency | f1= 5 Hz to f2= 150 Hz | Acceleration | 5g (highest test level used for all axes) |
Test duration per axis | 5 h | Test directions | X, Y and Z axes |
Monitoring for contact faults/interruptions | Passed | Voltage drop measurement before and after each axis | Passed |
Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard | Extended test scope: Monitoring for contact faults/interruptions | Passed |
Extended test scope: Voltage drop measurement before and after each axis | Passed | Shock test | Test passed according to Section 10 of the standard |
Shock form | Half sine | Shock duration | 30 ms |
Number of shocks per axis | 3 pos. und 3 neg. | Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
