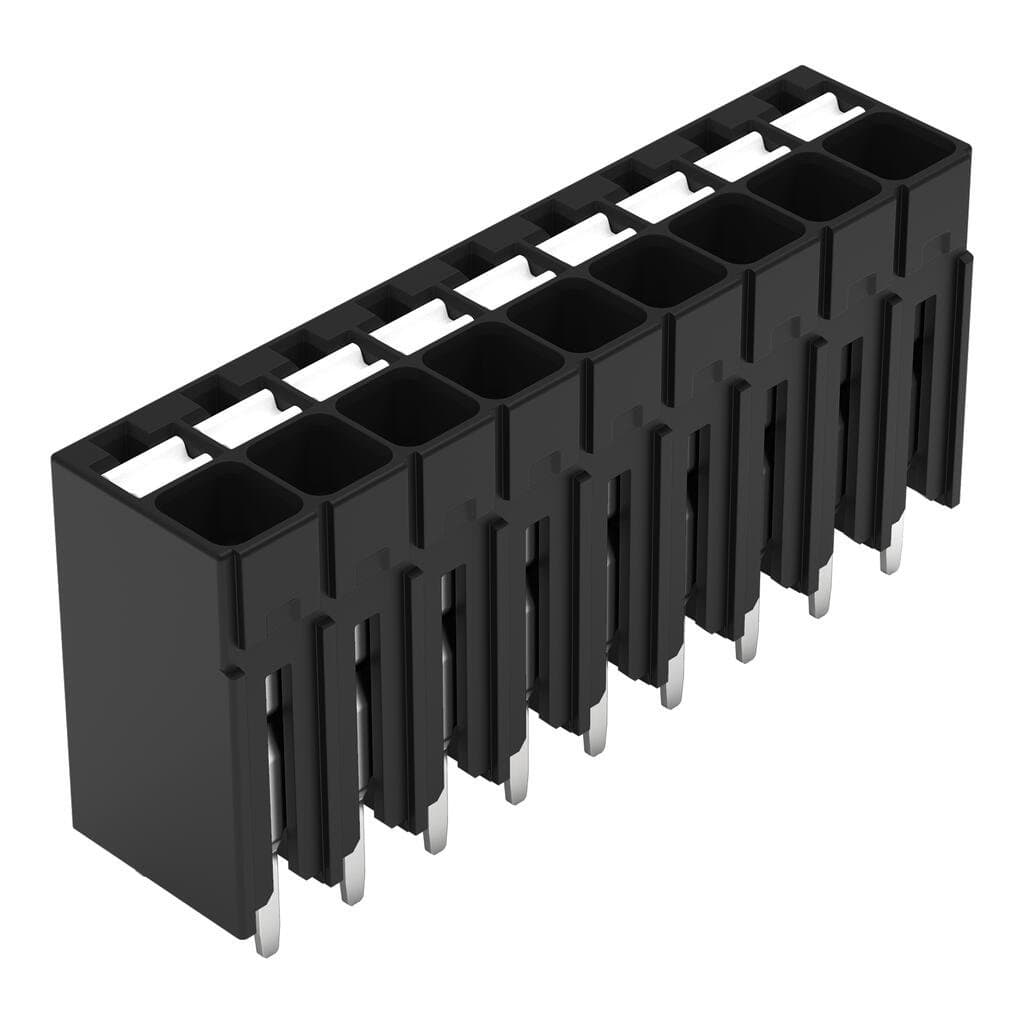

Product Model
2086-1109
Selling Points
- 13.5 mm pitch spacing for efficient board connections.
- 2Supports up to 17.5A, suitable for demanding applications.
- 3Push-in CAGE CLAMP technology for solid and fine-stranded conductors.
- 4Made from high-quality materials, ensuring long-lasting performance.
- 5RoHS compliant and no SVHC, meeting stringent environmental regulations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Clamping units | 9 |
Total number of potentials | 9 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 3.5?mm?/ 0.138?inches |
Width | 32.2?mm?/ 1.268?inches | Height | 16?mm?/ 0.63?inches |
Height from the surface | 13.6?mm?/ 0.535?inches | Depth | 7.8?mm?/ 0.307?inches |
Solder pin length | 2.4mm | Solder pin dimensions | 0.3 x 0.8?mm |
Plated through-hole diameter (THR) | 1(+0.1)mm | PCB contact | THR |
Solder pin arrangement | over the entire terminal strip (in-line) | Number of solder pins per potential | 2 |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.095MJ | Weight | 4.4g |
MSL per J-STD 020D | 1 | Limit temperature range | -60 … +105?°C |
Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 96?pcs |
Packaging type | Box | Country of origin | CH |
GTIN | 4066966141481 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 160V | Rated impulse voltage (III / 3) | 2.5kV |
Rated voltage (III/2) | 160V | Rated surge voltage (III/2) | 2.5kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 2.5kV |
Rated current | 17.5A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 14A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 14A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 14A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Solid conductor | 0.14 … 1.5?mm2?/ 28 … 16?AWG |
Fine-stranded conductor | 0.14 … 1.5?mm2?/ 26 … 14?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 0.75?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches |
Conductor connection direction to PCB | 90° | Number of poles | 9 |
Specifications may be subject to change without notice
