Product Model

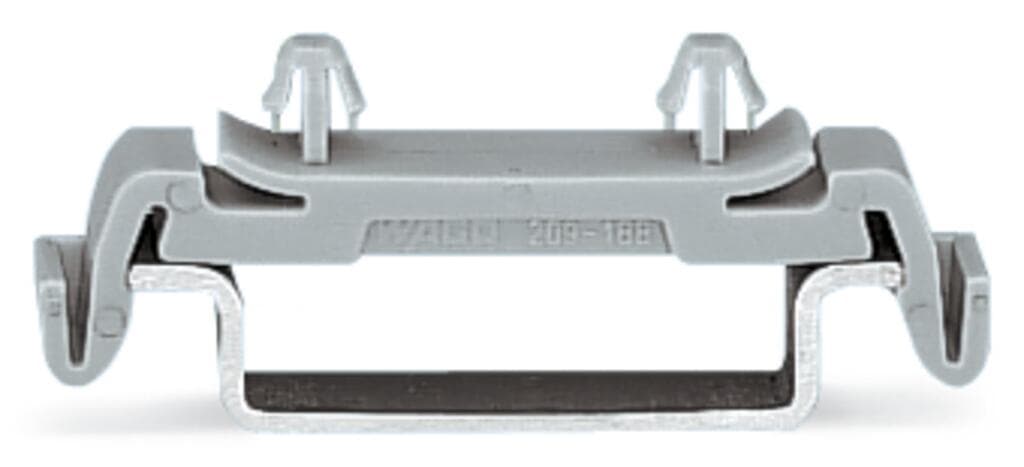

209-188
Selling Points
- 1Compact design with 0.197 inch width and 1.665 inch height.
- 2Compatible with terminal blocks featuring fixing flanges.
- 3Gray color for easy identification.
- 4Made from durable polyamide material.
- 5RoHS compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 5?mm?/ 0.197?inches | Height | 42.3?mm?/ 1.665?inches |
Depth | 15?mm?/ 0.591?inches | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.028MJ |
Weight | 0.9g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-92 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | bag | Country of origin | DE |
GTIN | 4017332200998 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
