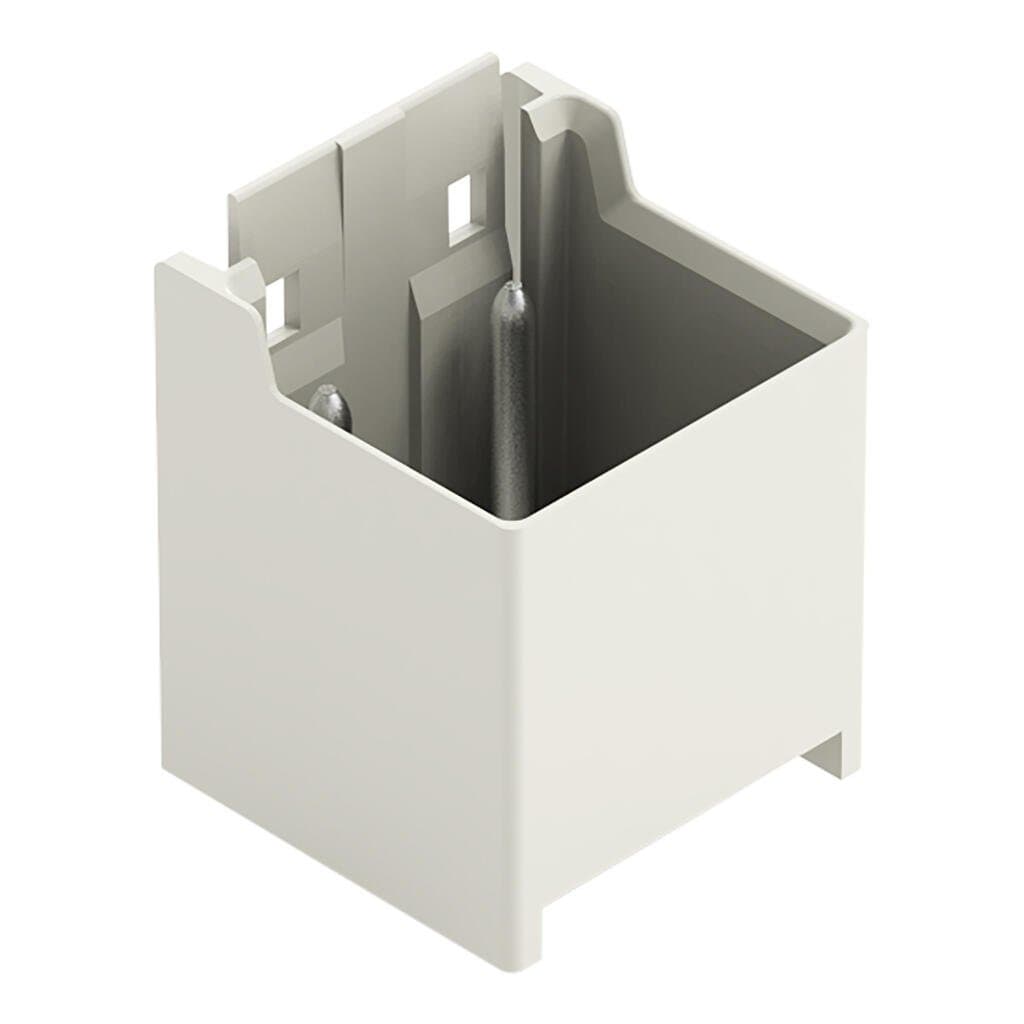

Product Model
2092-3404
Selling Points
- 1High-Quality Construction: Made with durable materials for long-lasting performance.
- 2Easy Installation: Straight design and 1.4mm solder pins simplify the connection process.
- 3Compact Design: 7.5mm pin spacing allows for efficient use of PCB space.
- 4Versatile Application: Suitable for various electrical and automation systems.
- 5Affordable Pricing: Available at competitive prices starting from $1.14 USD.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | ThepicoMAX?Pluggable Connection Systemincludes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated. | Variants: | Direct marking |
Total number of potentials | 4 | Number of connection types | 1 |
Number of levels | 1 | Pin spacing | 7.5?mm?/ 0.295?inches |
Width | 29.7?mm?/ 1.169?inches | Height | 23.1?mm?/ 0.909?inches |
Height from the surface | 19.5?mm?/ 0.768?inches | Depth | 14.4?mm?/ 0.567?inches |
Solder pin length | 3.6mm | Solder pin diameter | 1.4mm |
Drilled hole diameter with tolerance | 1.6(+0.1)mm | Variable coding | Yes |
Anti-rotation protection | Yes | Contact type (pluggable connector) | Male connector/plug |
Connector (connection type) | for PCB | Mismating protection | No |
Plugging without loss of pin spacing | Yes | Mating direction to the PCB | 90° |
Locking of plug-in connection | Locking latch | PCB contact | THT |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Material group | I | Insulation material (main housing) | Polyphthalamide (PPA GF) |
Flammability class per UL94 | V0 | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.067MJ |
Weight | 3.1g | Limit temperature range | -60 … +100?°C |
Processing temperature | -35 … +60?°C | Product Group | 26 (picoMAX Connectors) |
eCl@ss 10.0 | 27-44-04-02 | eCl@ss 9.0 | 27-44-04-02 |
ETIM 9.0 | EC002637 | ETIM 8.0 | EC002637 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4050821164654 | Customs tariff number | 8536698000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated voltage (III/2) | 630V | Rated surge voltage (III/2) | 6kV |
Nominal voltage (II/2) | 1000V | Rated surge voltage (II/2) | 6kV |
Rated current | 16A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | UL 1059 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Number of poles | 4 |
Specifications may be subject to change without notice
