Product Model
218-504/000-604/997-405
Selling Points
- 1High-quality components ensure reliability and durability in demanding industrial environments.
- 2Advanced connectivity options for seamless integration with various systems and devices.
- 3Easy installation and configuration with intuitive user interfaces.
- 4Compact design for space-efficient installations in control panels and enclosures.
- 5Compatible with a wide range of industrial protocols for versatile application use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Variants: | Other pole numbers |
Clamping units | 4 | Total number of potentials | 4 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 2.54?mm?/ 0.1?inches | Width | 11.66?mm?/ 0.459?inches |
Height | 10.9?mm?/ 0.429?inches | Height from the surface | 8.1?mm?/ 0.319?inches |
Depth | 13?mm?/ 0.512?inches | Solder pin length | 2.8mm |
Solder pin dimensions | 0.5 x 0.75?mm | Plated through-hole diameter (THR) | 1.1(+0.1)mm |

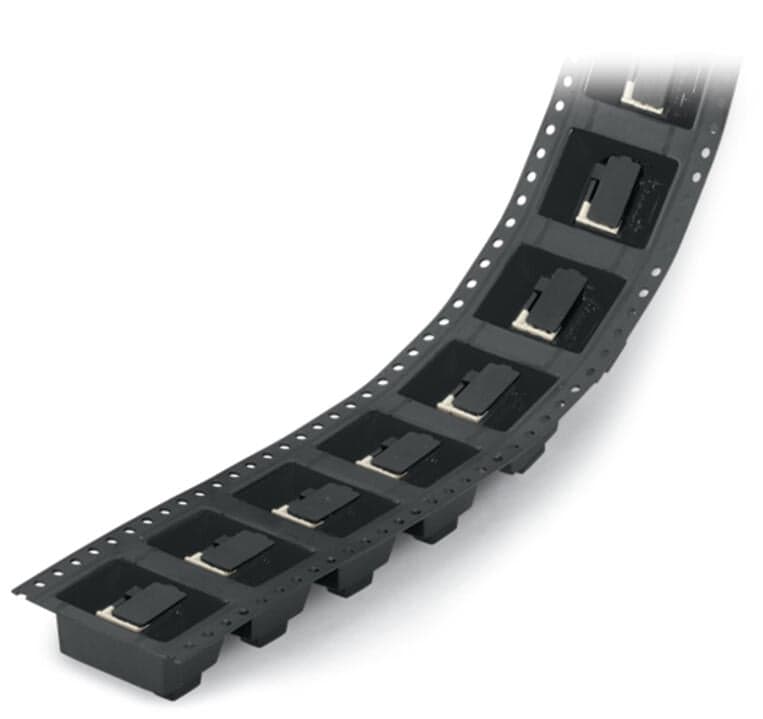

Reel diameter of tape-and-reel packaging | 330mm | Tape width | 32mm |
PCB contact | THR | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | IIIa |
Insulation material (main housing) | Polyamide (PA46) | Flammability class per UL94 | V2 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.021MJ |
Weight | 1.4g | MSL per J-STD 020D | 1 |
Limit temperature range | -60 … +105?°C | eCl@ss 10.0 | 27-44-04-01 |
eCl@ss 9.0 | 27-44-04-01 | ETIM 9.0 | EC002643 |
ETIM 8.0 | EC002643 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 250?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4045454472016 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | IEC/EN 60664-1 | Rated voltage (III / 3) | 32V |
Rated impulse voltage (III / 3) | 2.5kV | Rated voltage (III/2) | 160V |
Rated surge voltage (III/2) | 2.5kV | Nominal voltage (II/2) | 320V |
Rated surge voltage (II/2) | 2.5kV | Rated current | 6A |
Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 | Connection technology | CAGE CLAMP? |
Actuation type | Slider | Solid conductor | 0.08 … 0.5?mm2?/ 28 … 20?AWG |
Fine-stranded conductor | 0.08 … 0.5?mm2?/ 28 … 20?AWG | Fine-stranded conductor; with insulated ferrule | 0.25?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25?mm2 | Note (conductor cross-section) | Terminating 0.75 mm2/18 AWG conductors is possible; however insulation diameter allows only every other clamping unit to be terminated with this conductor size. |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Conductor connection direction to PCB | 40° |
Number of poles | 4 |
Specifications may be subject to change without notice
