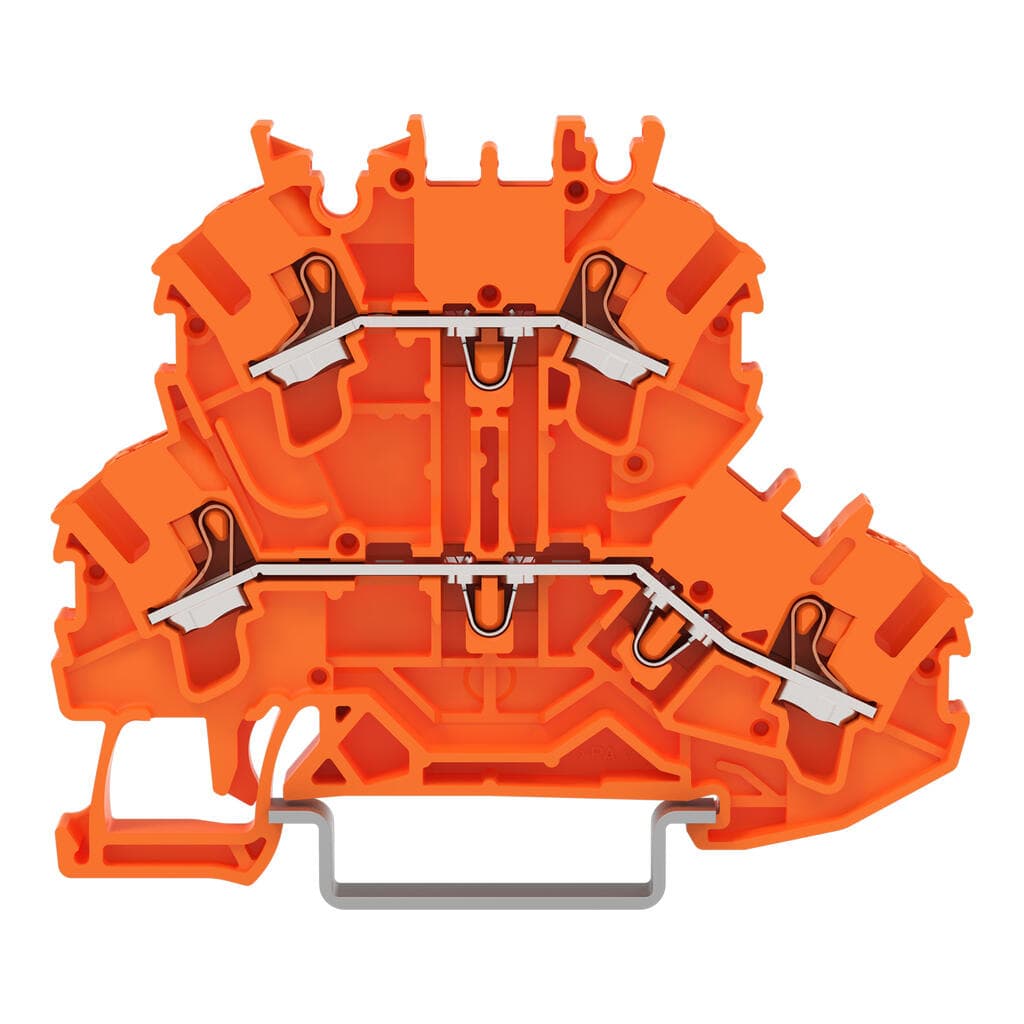

Product Model
2200-2236
Selling Points
- 1Industry-leading reliability with high-quality materials.
- 2Versatile design for various industrial applications.
- 3Easy installation and maintenance with snap-in connectors.
- 4High current capacity up to 16 A per pole.
- 5Durable and resistant to environmental factors.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 4 | Total number of potentials | 2 |
Number of levels | 2 | Number of jumper slots | 4 |
Width | 3.5 mm / 0.138 inches | Height | 69.7 mm / 2.744 inches |
Depth from upper-edge of DIN-rail | 51.7 mm / 2.035 inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | orange | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.195MJ | Weight | 7.9g |
Processing temperature | -35 … +85 °C | Continuous operating temperature | -60 … +105 °C |
ETIM 9.0 | EC000897 | ETIM 8.0 | EC000897 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50 pcs |
Packaging type | Box | Country of origin | IN |
GTIN | 4066966478976 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | ATEX: PTB 11 ATEX 1041 U / IECEx: PTB 11.0093U (Ex eb IIC Gb) |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 13.5A | Current at conductor cross-section (max.) mm2 | 16A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Approvals per | CSA 22.2 No 158 |
Rated voltage UL (Use Group B) | 300V | Rated current UL (Use Group B) | 10A |
Rated voltage UL (Use Group C) | 300V | Rated current UL (Use Group C) | 10A |
Rated voltage CSA (Use Group B) | 300V | Rated current CSA (Use Group B) | 10A |
Rated voltage CSA (Use Group C) | 300V | Rated current CSA (Use Group C) | 10A |
Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” | Rated voltage EN (Ex e II) | 320V |
Rated current (Ex e II) | 13A | Rated current (Ex e II) with jumper | 12A |
Power loss, per pole (potential) | 0.434W | Rated current I<sub>N</sub> for specified power loss | 13.5A |
Resistance value for specified, current-dependent power loss | 0.002Ω | Connection technology | Push-in CAGE CLAMP? |
Total number of connection points | 2 | Actuation type | Push-button |
Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
Solid conductor | 0.14 … 1.5 mm2 / 24 … 16 AWG | Solid conductor; push-in termination | 0.5 … 1.5 mm2 / 20 … 16 AWG |
Fine-stranded conductor | 0.14 … 1.5 mm2 / 24 … 16 AWG | Fine-stranded conductor; with insulated ferrule | 0.14 … 0.75 mm2 / 24 … 18 AWG |
Fine-stranded conductor; with ferrule; push-in termination | 0.5 … 0.75 mm2 / 20 … 18 AWG | Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. |
Strip length | 9 … 11 mm / 0.35 … 0.43 inches | Wiring direction | Front-entry wiring |
Number of connection points 2 | 2 |
Specifications may be subject to change without notice
