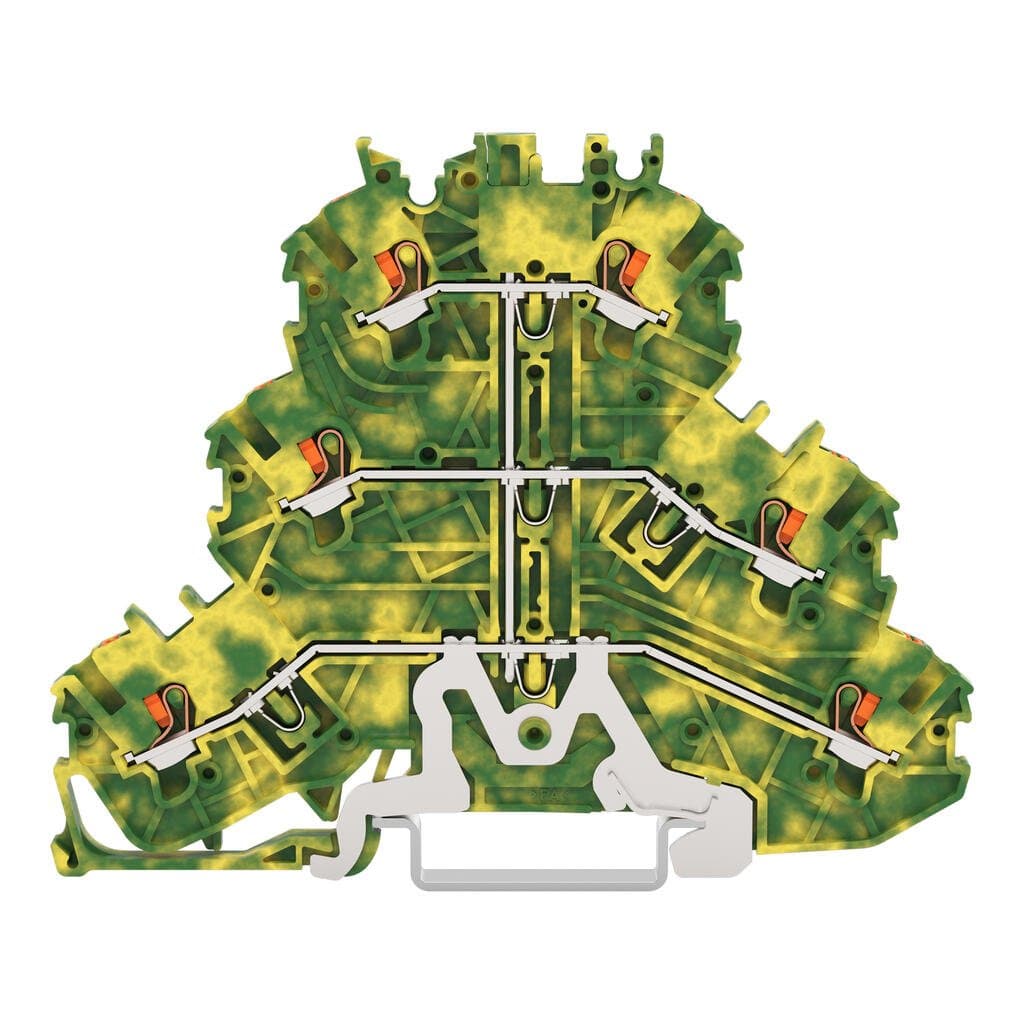

Product Model
2200-3207
Selling Points
- 1Triple-deck terminal block for enhanced connectivity.
- 26-conductor ground terminal for reliable grounding.
- 3Push-button for easy and secure connection.
- 4Suitable for Ex e II applications.
- 51 mm² PE terminal for efficient grounding.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Total number of potentials | 3 | Number of levels | 3 |
Number of jumper slots | 5 | Width | 3.5?mm?/ 0.138?inches |
Height | 93.6?mm?/ 3.685?inches | Depth from upper-edge of DIN-rail | 69.5?mm?/ 2.736?inches |
Potential Marking | PE | Mounting type | DIN-rail 35 x 15 |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | green-yellow | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.278MJ | Actuator color | orange |
Weight | 15.7g | Processing temperature | -35 … +85?°C |
Continuous operating temperature | -60 … +105?°C | ETIM 9.0 | EC000897 |
ETIM 8.0 | EC000897 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 40?pcs | Packaging type | Box |
Country of origin | PL | GTIN | 4066966382266 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Reference hazardous areas | See “Downloads – Documentation – Additional Information: Technical Section; Technical Explications” |
Connection technology | Push-in CAGE CLAMP? | Total number of connection points | 3 |
Actuation type | Push-button | Actuation direction 1 | Operation parallel to conductor entry |
Connectable conductor materials | Copper | Nominal cross-section | 1 mm2 |
Solid conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Solid conductor; push-in termination | 0.5?mm2?/ 20?AWG |
Stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG | Fine-stranded conductor | 0.14 … 1.5?mm2?/ 24 … 16?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 0.75?mm2?/ 20 … 18?AWG | Fine-stranded conductor; with ferrule; push-in termination | 0.5?mm2?/ 20?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 9 … 11?mm?/ 0.35 … 0.43?inches |
Number of connection points 2 | 3 |
