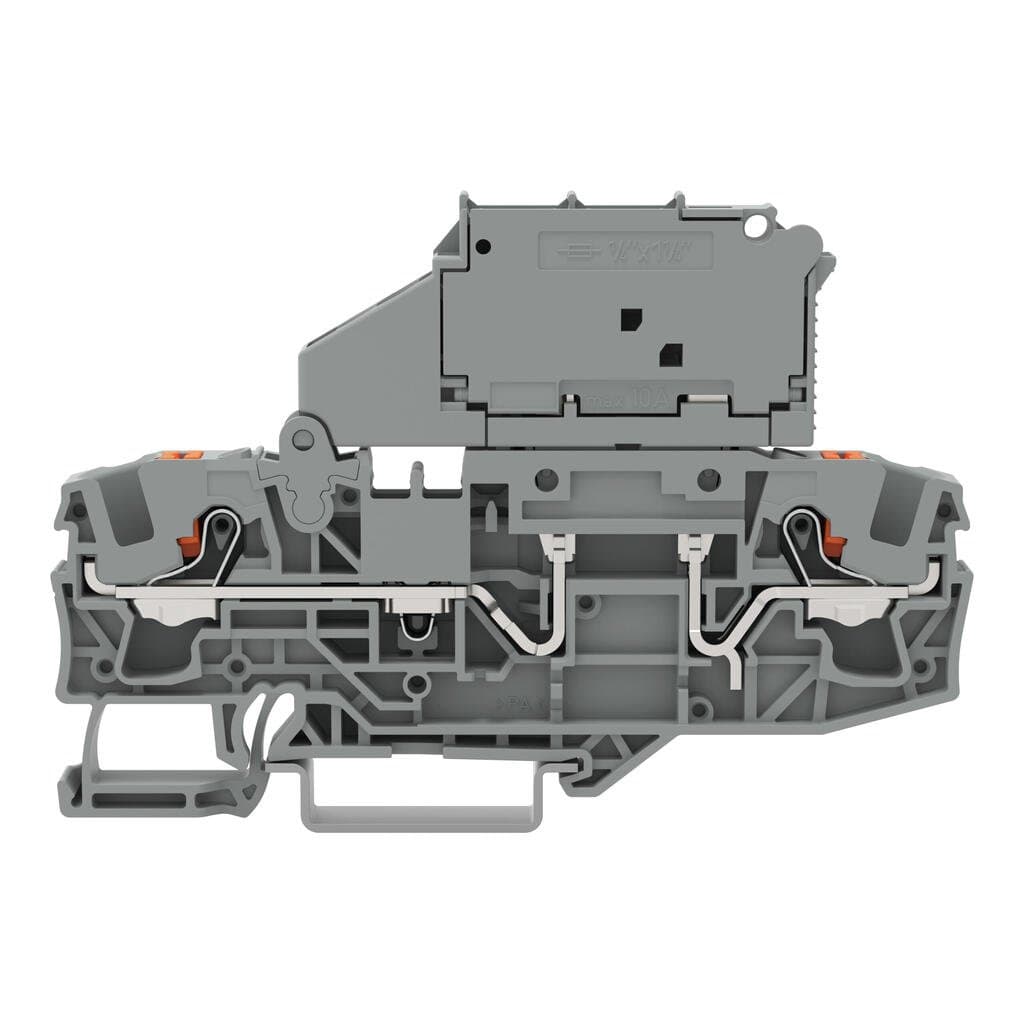

Product Model
2206-1631/1099-541
Selling Points
- 1Fits DIN-rail 35 x 15 and 35 x 7.5.
- 2Easy access to fuse for maintenance.
- 3LED light indicates blown fuse.
- 4Compatible with 12 - 30 V.
- 5Push-in CAGE CLAMP for secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 10.4?mm?/ 0.409?inches |
Height | 96.3?mm?/ 3.791?inches | Depth from upper-edge of DIN-rail | 59?mm?/ 2.323?inches |
Mounting type | DIN-35 rail | Marking level | Center/side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.605MJ |
Actuator color | orange | Weight | 29.8g |
Processing temperature | -35 … +50 °C | Continuous operating temperature | -60 … +50 °C |
ETIM 9.0 | EC000899 | ETIM 8.0 | EC000899 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966306002 | Customs tariff number | 85369095000 |
CAS-No. | 1303-86-2 | REACH Candidate List Substance | Diboron trioxide |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 7(a) |
SCIP notification number (Austria) | 08a992ff-2b41-4003-846b-fd3f7d5defa1 | SCIP notification number (Belgium) | ad25cce6-2dbf-420e-a58b-7b8dd34113c5 |
SCIP notification number (Bulgaria) | 929ad027-889b-4020-a507-0339e109199c | SCIP notification number (Czech Republic) | c6395a90-d863-429e-9dac-d47e9e409254 |
SCIP notification number (Denmark) | 60bce9f3-6032-4144-8ddd-48d6b01d05eb | SCIP notification number (Finland) | e75574c5-711a-4c41-be41-2e7595ab7e73 |
SCIP notification number (France) | 89ba4a0f-3016-4ae9-a35e-318eba3f4cdc | SCIP notification number (Germany) | 4d3c9845-90d1-4ade-b56f-b60028aead2e |
SCIP notification number (Hungary) | 56e6c20b-ce85-4362-a670-3edea98013de | SCIP notification number (Italy) | 41487788-6a8c-4622-8d14-8aca6561c630 |
SCIP notification number (Netherlands) | a9470e53-489a-4eb9-b81e-b3d35814ca26 | SCIP notification number (Poland) | e3225cc1-7ce1-4dae-86f8-11ba278ebb19 |
SCIP notification number (Romania) | b85916f9-cbcd-4f4e-a960-4b038a9f28a1 | SCIP notification number (Sweden) | 7dcaa813-e858-4411-a85f-f4c4c153cf70 |
Ratings per | IEC/EN 60947-7-3 | Rated voltage (III / 3) | 800V |
Rated impulse voltage (III / 3) | 8kV | Rated current | 10A |
Operation status indicator | 12 … 30?V | Blown fuse indication | 12 … 30 V |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
Rated current (note) | Leakage current in case of a blown fuse: LED 2 mA | Ratings per 2 | IEC/EN 60947-7-3 |
Rated voltage (III/3) 2 | 30V | Rated surge voltage (III/3) 2 | 0.8kV |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 30V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group C) | 30V |
Rated current UL (Use Group C) | 15A | Rated voltage CSA (Use Group B) | 30V |
Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group C) | 30V |
Rated current CSA (Use Group C) | 15A | Power loss P<sub>l</sub> max. overload and short-circuit protection (individual arrangement) | 2.5W |
Power loss P<sub>l</sub> max. overload and short-circuit protection (group arrangement) | 2.5W | Power loss P<sub>l</sub> max. short-circuit protection (individual arrangement) | 2.5W |
Power loss P<sub>l</sub> max. short-circuit protection (group arrangement) | 2.5W | Fuse receptacle | pivoting |
Fuse type | Cylindrical fuse; ?" x 1?" | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Solid conductor; push-in termination | 1 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
