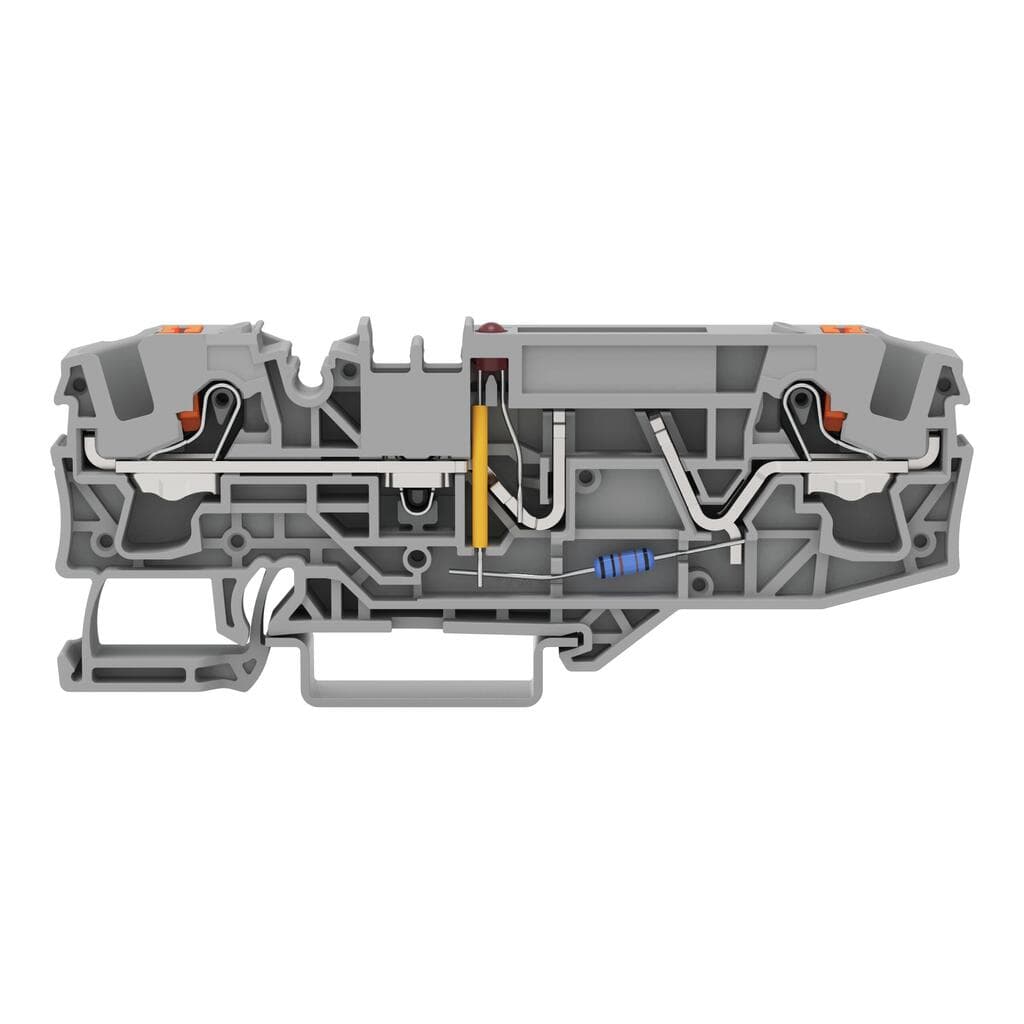

Product Model
2206-1681/1000-434
Selling Points
- 1Automotive Compatibility: Designed for automotive blade-style fuses.
- 2Test Option: Includes a test option for easy diagnostics.
- 3LED Indication: Features a blown fuse indication by LED.
- 4DIN-Rail Mounting: Compatible with DIN-rail 35 x 15 and 35 x 7.5.
- 5Push-in CAGE CLAMP: Uses Push-in CAGE CLAMP spring connections for secure wire termination.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 2 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 7.5?mm?/ 0.295?inches | Height | 96.3?mm?/ 3.791?inches |
Depth from upper-edge of DIN-rail | 32.9?mm?/ 1.295?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Type of fuse | Standard flat plug-in fuse 19.1 x 5.1 x 18.5 mm |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.343MJ |
Actuator color | orange | Weight | 118.1g |
Processing temperature | -35 … +85?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000899 | ETIM 8.0 | EC000899 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 25?pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4066966371260 | Customs tariff number | 85369095000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-3 |
Rated voltage (III / 3) | 500V | Rated impulse voltage (III / 3) | 8kV |
Rated current | 25A | Blown fuse indication | 24 V |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Ratings (note) | Electrical ratings are given by the fuse and blown fuse indication. |
Ratings (note) 2 | Blade-style fuses: Observe touch-proof protection for 42?V and higher voltages! | Fuse receptacle | pluggable |
Fuse type | Standard flat plug-in fuse; 19.1 x 5.1 x 18.5 mm | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Solid conductor; push-in termination | 2.5 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Wiring direction | Front-entry wiring |
Specifications may be subject to change without notice
