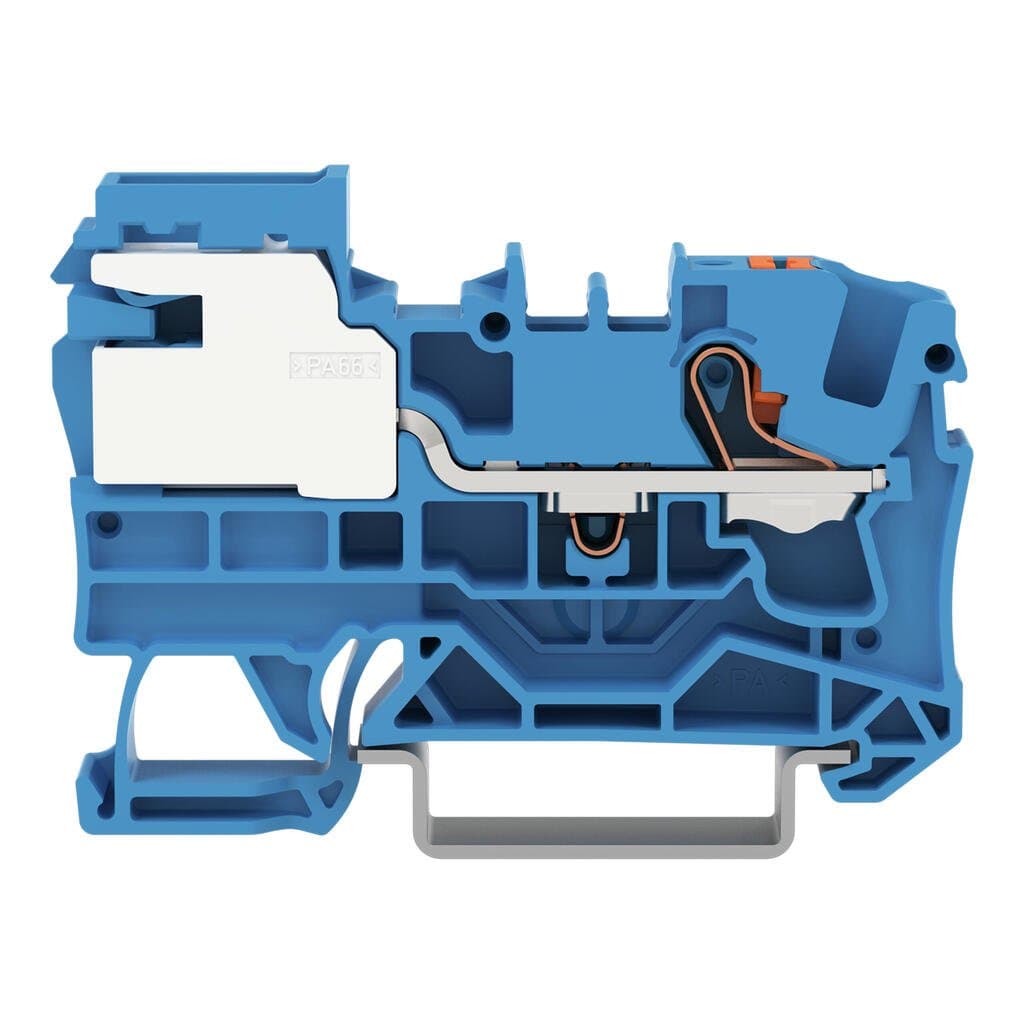

Product Model
2206-7114
Selling Points
- 1Flexible Reihenklemme: Designed for diverse electrical applications.
- 2Push-in CAGE CLAMP: Easy and secure connection.
- 36 mm² Capacity: Suitable for various wire sizes.
- 4TOPJOB S Compatibility: Integrates seamlessly with WAGO's broad product line.
- 5Available in 50 Stück VPE (UVPE): Convenient bulk purchasing option.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of levels | 1 | Number of jumper slots | 2 |
Width | 7.5?mm?/ 0.295?inches | Height | 60.1?mm?/ 2.366?inches |
Depth from upper-edge of DIN-rail | 38.1?mm?/ 1.5?inches | Mounting type | DIN-35 rail |
Marking level | Center/side marking | Note (material data) | Information on material specifications can be found here |
Color | blue | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.227MJ | Weight | 14.4g |
Processing temperature | -35 … +60?°C | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC001257 | ETIM 8.0 | EC001257 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 50?pcs |
Packaging type | Box | Country of origin | PL |
GTIN | 4066966319026 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60947-7-1 |
Rated voltage (III / 3) | 250V | Rated impulse voltage (III / 3) | 4kV |
Rated current | 41A | Current at conductor cross-section (max.) mm2 | 51A |
Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 | Power loss, per pole (potential) | 2.029W |
Rated current I<sub>N</sub> for specified power loss | 51A | Connection technology | Push-in CAGE CLAMP? |
Actuation type | Push-button | Connectable conductor materials | Copper |
Nominal cross-section | 6 mm2 | Solid conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Solid conductor; push-in termination | 2.5 … 10?mm2?/ 14 … 8?AWG | Fine-stranded conductor | 0.5 … 10?mm2?/ 20 … 8?AWG |
Fine-stranded conductor; with insulated ferrule | 0.5 … 6?mm2?/ 20 … 10?AWG | Fine-stranded conductor; with ferrule; push-in termination | 2.5 … 6?mm2?/ 16 … 10?AWG |
Note (conductor cross-section) | Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination. | Strip length | 13 … 15?mm?/ 0.51 … 0.59?inches |
Wiring direction | Front-entry wiring | Test specification <br/>Railway applications – <br/>Rolling stock – <br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
Test procedure <br/>Railway applications – <br/>Rolling stock equipment – <br/>Shock and vibration tests | DIN EN 61373 (VDE 0115-0106):2011-04 | Spectrum/Installation location | Service life test, Category?1, Class?A/B |
Function test with noise-like vibration | Test passed according to Section 8 of the standard | Frequency | f1= 5 Hz to f2= 150 Hz |
Acceleration | 5g (highest test level used for all axes) | Test duration per axis | 5 h |
Test directions | X, Y and Z axes | Monitoring for contact faults/interruptions | Passed |
Voltage drop measurement before and after each axis | Passed | Simulated service life test through increased levels of noise-like vibration | Test passed according to Section 9 of the standard |
Extended test scope: Monitoring for contact faults/interruptions | Passed | Extended test scope: Voltage drop measurement before and after each axis | Passed |
Shock test | Test passed according to Section 10 of the standard | Shock form | Half sine |
Shock duration | 30 ms | Number of shocks per axis | 3 pos. und 3 neg. |
Vibration and shock stress for rolling stock equipment | Passed |
Specifications may be subject to change without notice
