Product Model

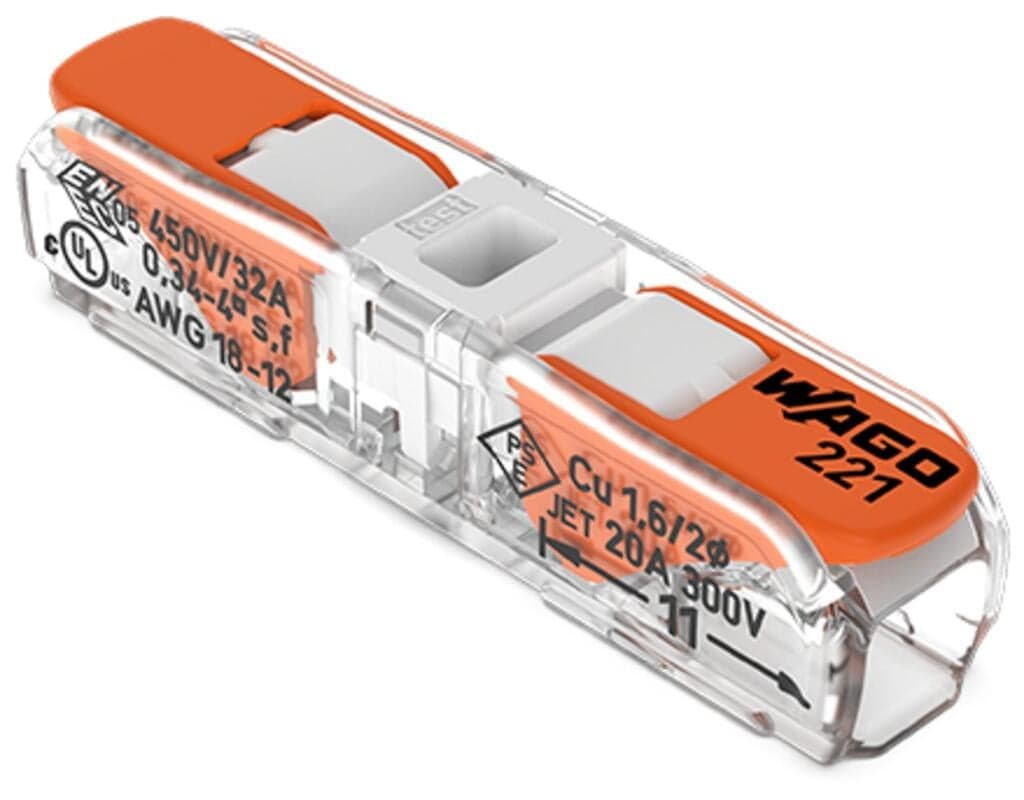

221-2401
Selling Points
- 1Tool-free connection and disconnection with lever technology.
- 2Compatible with solid, stranded, and fine-stranded conductors up to 12 AWG.
- 3Transparent housing for easy inspection and installation.
- 4Secure WAGO CAGE CLAMP connection for robust robot circuits.
- 5Ideal for high-power connections on FRC robots and other applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety management note | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! | Clamping units | 2 |
Width | 8.1?mm?/ 0.319?inches | Height | 8.9?mm?/ 0.35?inches |
Depth | 35.5?mm?/ 1.398?inches | Note (material data) | Information on material specifications can be found here |
Color | transparent | Cover color | white |
Material group | IIIa | Insulation material (main housing) | Polycarbonate (PC) |
Flammability class per UL94 | V2 | Fire load | 0.058MJ |
Actuator color | orange | Weight of insulation material | 0.84g |
Weight | 2.4g | Continuous operating temperature | -60 … +105?°C |
ETIM 9.0 | EC000446 | ETIM 8.0 | EC000446 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 600?(60)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4066966120271 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | EN 60664 |
Nominal voltage (II/2) | 450V | Rated surge voltage (II/2) | 4kV |
Rated current | 32A | Legend (ratings) | (II / 2) ? Overvoltage category II / Pollution degree 2 |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
Connection technology | CAGE CLAMP? | Actuation type | Lever |
Connectable conductor materials | Copper | Nominal cross-section | 4 mm2 / 12 AWG |
Solid conductor | 0.2 … 4?mm2?/ 20 … 12?AWG | Stranded conductor | 0.75 … 4?mm2?/ 18 … 12?AWG |
Fine-stranded conductor | 0.34 … 4?mm2?/ 18 … 12?AWG | Strip length | 11?mm?/ 0.43?inches |
Specifications may be subject to change without notice
