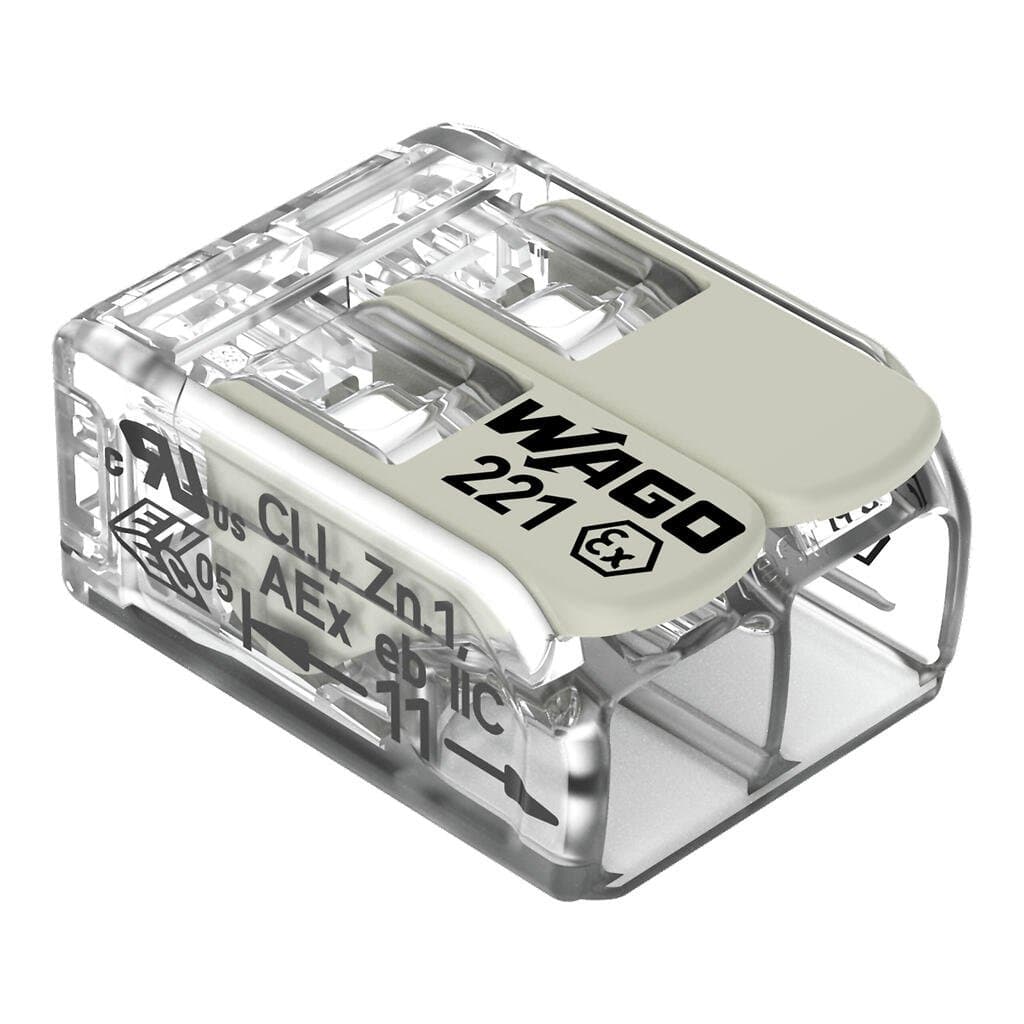

Product Model
221-482
Selling Points
- 1Compact Design: 13.1 mm wide, 8.3 mm high, and 18.6 mm deep for easy installation.
- 2Ex-Proof Certification: Meets ATEX and IECEx standards for safe use in hazardous environments.
- 3High-Temperature Capability: Operates at a maximum temperature of 105°C, ensuring reliability in demanding conditions.
- 4Versatile Conductor Compatibility: Connects solid, stranded, and fine-stranded conductors from 0.14 to 4 mm².
- 5Quick and Easy Installation: Lever-actuated CAGE CLAMP technology simplifies conductor termination.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety management note | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! | Safety information | The permissible operating voltage of the connector with carrier (440?V or 275?V) depends on the mounting type. |
Safety information 2 | Only approved in conjunction with a mounting carrier (221-501). Other carriers are possible, see certificate/file. The connectors must be installed in an enclosure meeting the requirements of a recognized protection type per EN 60079-0, GB/T 3836.1 Section 1 or EN 60079-31, GB/T 3836.31. When installing the connectors in an enclosure of protection type “e” (increased safety per EN 60079-7, GB/T 3836.3), the clearances and creepage distances of Table 2 for this standard must be observed. See point 1 for the use of accessories. The connectors can be used both in Group II and Group I, as the standard requirements are identical in this case.The use of these components requires a new assessment by a notified certification agency. | Clamping units | 2 |
Total number of potentials | 1 | Width | 13.2?mm?/ 0.52?inches |
Height | 8.4 mm / 0.327 inches | Depth | 18.6 mm / 0.732 inches |
Note (material data) | Information on material specifications can be found here | Color | transparent |
Material group | IIIa | Insulation material (main housing) | Polycarbonate (PC) |
Flammability class per UL94 | V2 | Fire load | 0.034MJ |
Actuator color | light gray | Weight | 1.7g |
Ambient temperature (storage) | -40 … +60 °C | Continuous operating temperature | -55 … +105?°C |
eCl@ss 10.0 | 27-14-11-04 | eCl@ss 9.0 | 27-14-11-04 |
ETIM 9.0 | EC000446 | ETIM 8.0 | EC000446 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1000?(100)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4055143837422 | Customs tariff number | 85369010000 |
RoHS Compliance Status | Compliant,No Exemption | Approvals per | UL 60079 |
Rated voltage UL (Use Group C) | 440V | Rated current UL (Use Group C) | 20A |
Ratings per | ATEX: PTB 18 ATEX 1019 U / IECEx: PTB 18.0045U (Ex eb IIC Gb) | Rated voltage EN (Ex e II) | 440V |
Rated current (Ex e II) | 24.5A | Connection technology | CAGE CLAMP? |
Actuation type | Lever | Connectable conductor materials | Copper |
Nominal cross-section | 4 mm2 / 12 AWG | Solid conductor | 0.2 … 4?mm2?/ 24 … 12?AWG |
Stranded conductor | 0.2 … 4?mm2?/ 24 … 12?AWG | Fine-stranded conductor | 0.14 … 4?mm2?/ 24 … 12?AWG |
Strip length | 11?mm?/ 0.43?inches | Wiring direction | Side-entry wiring |
