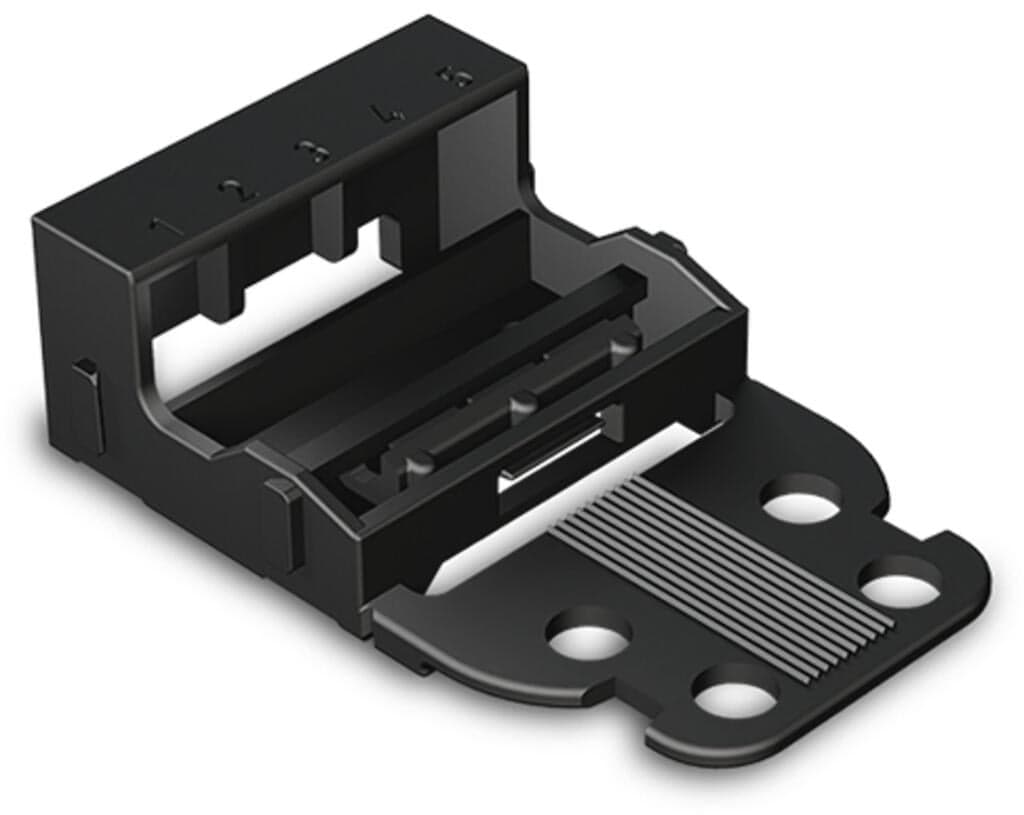

Product Model
221-525/000-004
Selling Points
- 1Compact design for vertical mounting with snap-in foot.
- 2Compatible with 5-conductor terminal blocks in the 221 Series.
- 3Made from durable black polyamide 66 (PA 66) for high reliability.
- 4Meets RoHS compliance standards for environmental safety.
- 5Easy to handle with dimensions of 2.08-in X 1.29-in X 0.67-in.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 35?mm?/ 1.378?inches | Height | 57.3?mm?/ 2.256?inches |
Height from the surface | 52.8 mm / 2.079 inches | Depth | 16.9?mm?/ 0.665?inches |
Mounting type | with snap-in mounting foot for vertical mounting | Suitable | for 5-wire connectors (4 mm2) |
Note (material data) | Information on material specifications can be found here | Color | black |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.152MJ |
Weight | 5.1g | eCl@ss 10.0 | 27-14-11-92 |
eCl@ss 9.0 | 27-14-11-92 | ETIM 9.0 | EC002848 |
ETIM 8.0 | EC002848 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 50?(10)?pcs | Packaging type | box |
Country of origin | CN | GTIN | 4055143640978 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
