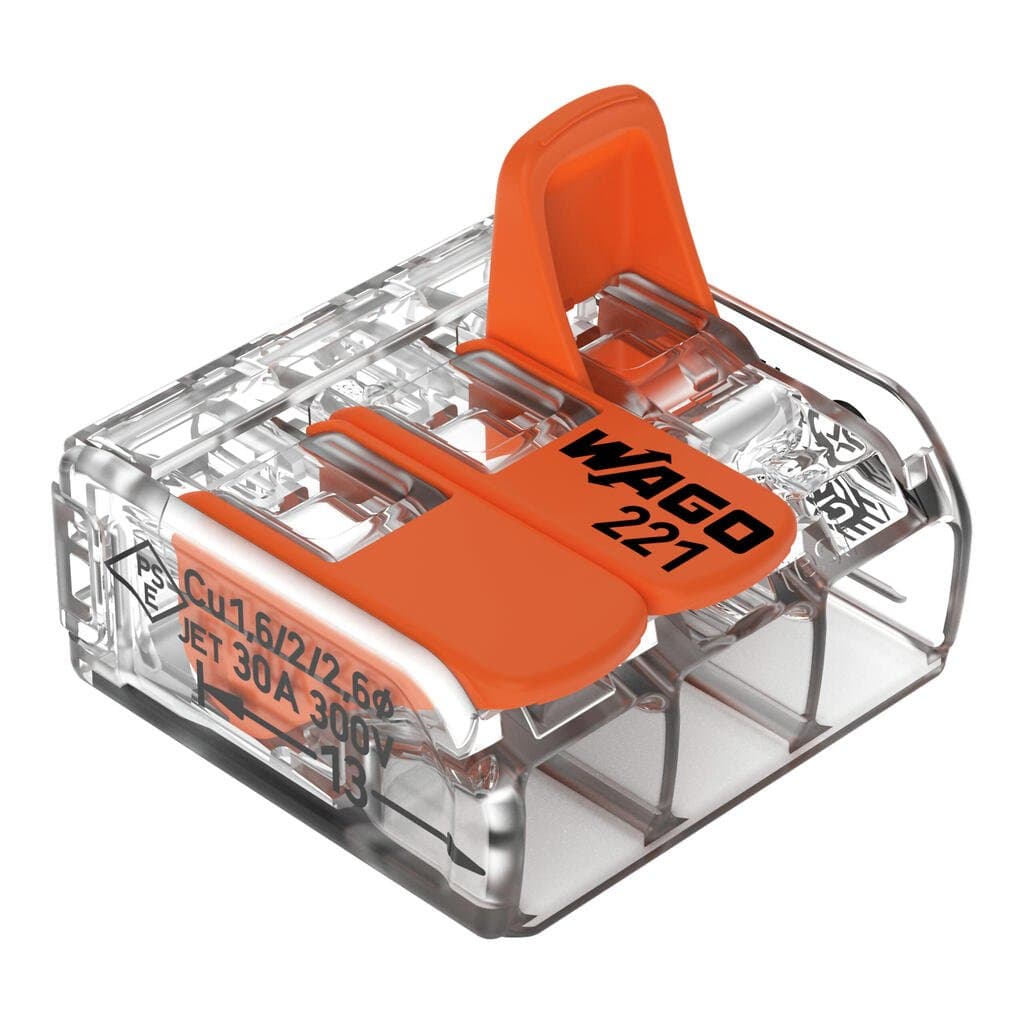

Product Model
221-613
Selling Points
- 1Compact Design: The WAGO 221-613 features a compact and transparent housing, making it ideal for space-constrained applications.
- 2Ease of Use: With operating levers, this connector is easy to open and close, simplifying the termination process.
- 3Versatile Wire Compatibility: Compatible with solid, stranded, and fine-stranded conductors from 20 to 10 AWG, ensuring versatility in various wiring needs.
- 4High Current Rating: Rated for 41A and 450V, making it suitable for high-power applications in industrial settings.
- 5Side-Entry Wiring: Offers side-entry wiring type for convenient conductor insertion and secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety management note | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! | Safety information | in grounded power lines |
Clamping units | 3 | Total number of potentials | 1 |
Width | 22.9?mm?/ 0.902?inches | Height | 10.1?mm?/ 0.398?inches |
Depth | 21.1?mm?/ 0.831?inches | Note (material data) | Information on material specifications can be found here |
Color | transparent | Cover color | transparent |
Material group | IIIa | Insulation material (main housing) | Polycarbonate (PC) |
Flammability class per UL94 | V2 | Fire load | 0.094MJ |
Actuator color | orange | Weight | 4g |
Ambient temperature (operation) | +85 °C | Continuous operating temperature | 105?°C |
Temperature marking per EN 60998 | T85 | eCl@ss 10.0 | 27-14-11-04 |
eCl@ss 9.0 | 27-14-11-04 | ETIM 9.0 | EC000446 |
ETIM 8.0 | EC000446 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 300?(30)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4055143715416 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | EN 60664 | Nominal voltage (II/2) | 450V |
Rated surge voltage (II/2) | 4kV | Rated current | 41A |
Legend (ratings) | (II / 2) ? Overvoltage category II / Pollution degree 2 | Approvals per | UL 486C |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 30A |
Connection technology | CAGE CLAMP? | Actuation type | Lever |
Connectable conductor materials | Copper | Nominal cross-section | 6 mm2 / 10 AWG |
Solid conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG |
Fine-stranded conductor | 0.5 … 6?mm2?/ 20 … 10?AWG | Strip length | 12 … 14?mm?/ 0.47 … 0.55?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
