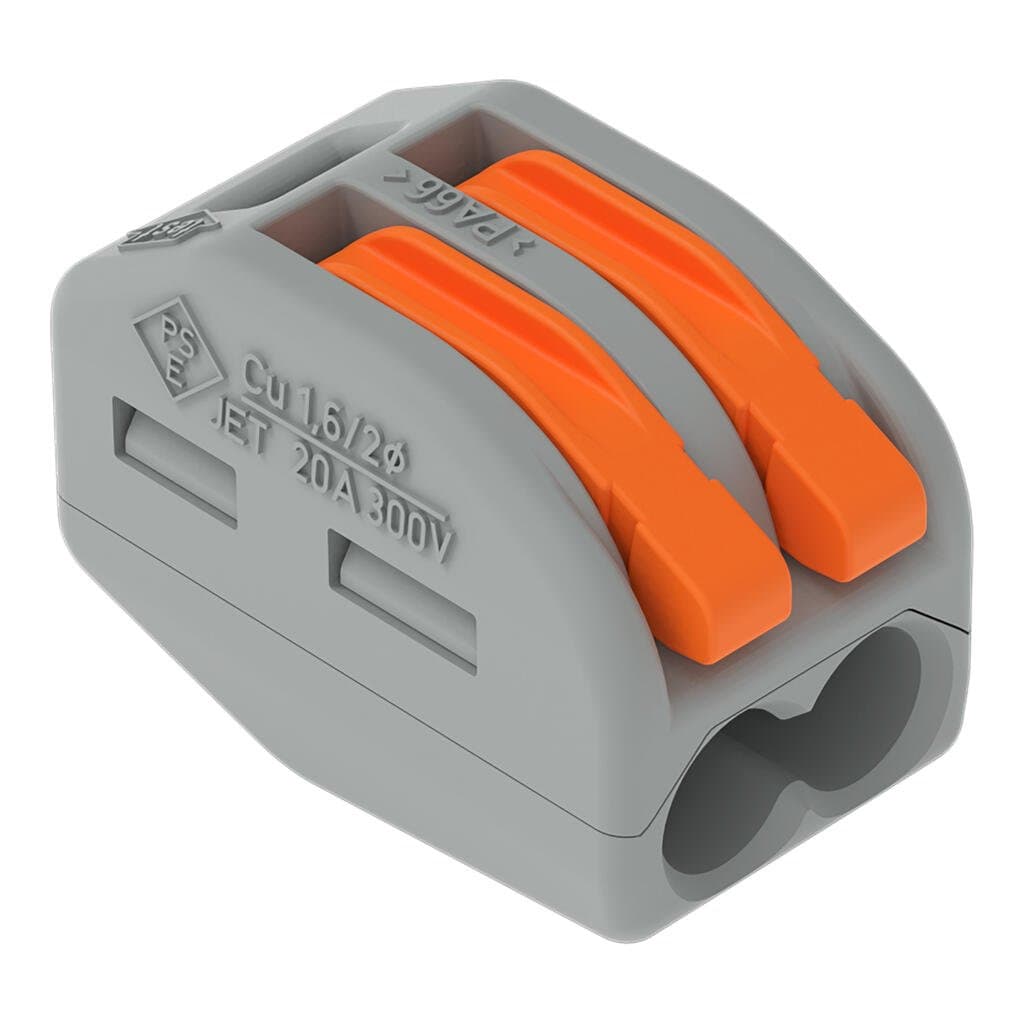

Product Model
222-412
Selling Points
- 1Designed for heavy-duty applications, ensuring long-lasting connectivity.
- 2Easy-to-use push-in technology simplifies installation and maintenance.
- 3High-performance contacts provide reliable connections in harsh environments.
- 4Compact design fits seamlessly into tight spaces, reducing installation time.
- 5Meets or exceeds industry standards for durability and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety management note | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! | Safety information | in grounded power lines |
Clamping units | 2 | Total number of potentials | 1 |
Width | 12.4?mm?/ 0.488?inches | Height | 14.5?mm?/ 0.571?inches |
Depth | 20.5?mm?/ 0.807?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Flammability class per UL94 | V0 |
Fire load | 0.067MJ | Actuator color | orange |
Weight | 3.1g | Ambient temperature (operation) | +40 °C |
Continuous operating temperature | 85?°C | eCl@ss 10.0 | 27-14-11-04 |
eCl@ss 9.0 | 27-14-11-04 | ETIM 9.0 | EC000446 |
ETIM 8.0 | EC000446 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 500?(50)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4050821346470 |
Customs tariff number | 85369010000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | EN 60664 | Nominal voltage (II/2) | 400V |
Rated surge voltage (II/2) | 4kV | Rated current | 32A |
Legend (ratings) | (II / 2) ? Overvoltage category II / Pollution degree 2 | Approvals per | UL 486C |
Rated voltage UL (Use Group C) | 600V | Rated current UL (Use Group C) | 20A |
Connection technology | CAGE CLAMP? | Actuation type | Lever |
Connectable conductor materials | Aluminum | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
