Product Model

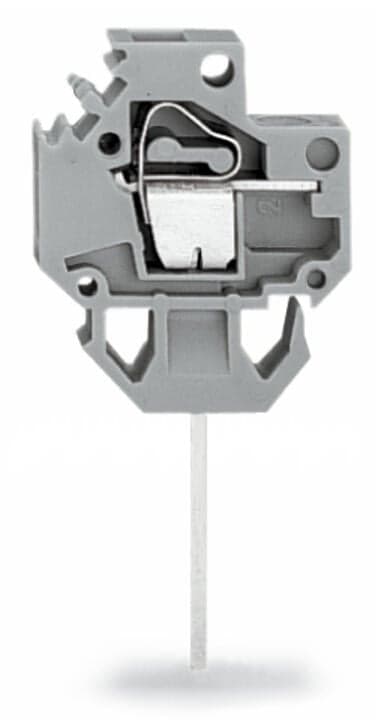

226-113
Selling Points
- 1Rated for 320V and 4kV impulse voltage, ensuring reliable operation in demanding electrical environments.
- 2Tool-free insertion into sheet metal cutouts saves time and effort during installation.
- 3Conductor entry parallel to enclosure wall reduces space requirements, ideal for compact installations.
- 4Made from high-quality materials including electrolytic copper contacts and chrome-nickel spring steel clamps.
- 5Meets IEC/EN 60664-1, UL 1059, CSA, and BV standards for safety and performance assurance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 1 | Total number of potentials | 1 |
Number of connection types | 2 | Number of levels | 1 |
Pin spacing | 6?mm?/ 0.236?inches | Width | 6?mm?/ 0.236?inches |
Height | 52.5?mm?/ 2.067?inches | Height from the surface | 22?mm?/ 0.866?inches |
Depth | 26?mm?/ 1.024?inches | Housing sheet thickness | 2.5 … 2.5?mm?/ 0.098 … 0.098?inches |
Mounting type | Feed-through mounting | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.12MJ |
Weight | 3.5g | Limit temperature range | -60 … +105?°C |
Product Group | 4 (Printed Circuit Connectors) | eCl@ss 10.0 | 27-14-11-34 |
eCl@ss 9.0 | 27-14-11-34 | ETIM 9.0 | EC001283 |
ETIM 8.0 | EC001283 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 150?pcs | Packaging type | bag |
Country of origin | DE | GTIN | 4044918794435 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings | Contact pin | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 320V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 630V | Rated surge voltage (II/2) | 4kV |
Rated current | 4A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 4A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 4A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 4A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 4A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 4A | Rated voltage CSA (Use Group D) | 600V |
Rated current CSA (Use Group D) | 4A | Connection technology | CAGE CLAMP? |
Total number of connection points | 1 | Actuation type | Operating tool |
Solid conductor | 0.08 … 4?mm2?/ 28 … 12?AWG | Fine-stranded conductor | 0.08 … 4?mm2?/ 28 … 12?AWG |
Fine-stranded conductor; with insulated ferrule | 0.25 … 2.5?mm2 | Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5?mm2 |
Strip length | 9 … 10?mm?/ 0.35 … 0.39?inches | Number of poles | 1 |
Connection technology 2 | Contact pin | Number of connection points 2 | 1 |
Specifications may be subject to change without notice
