Product Model

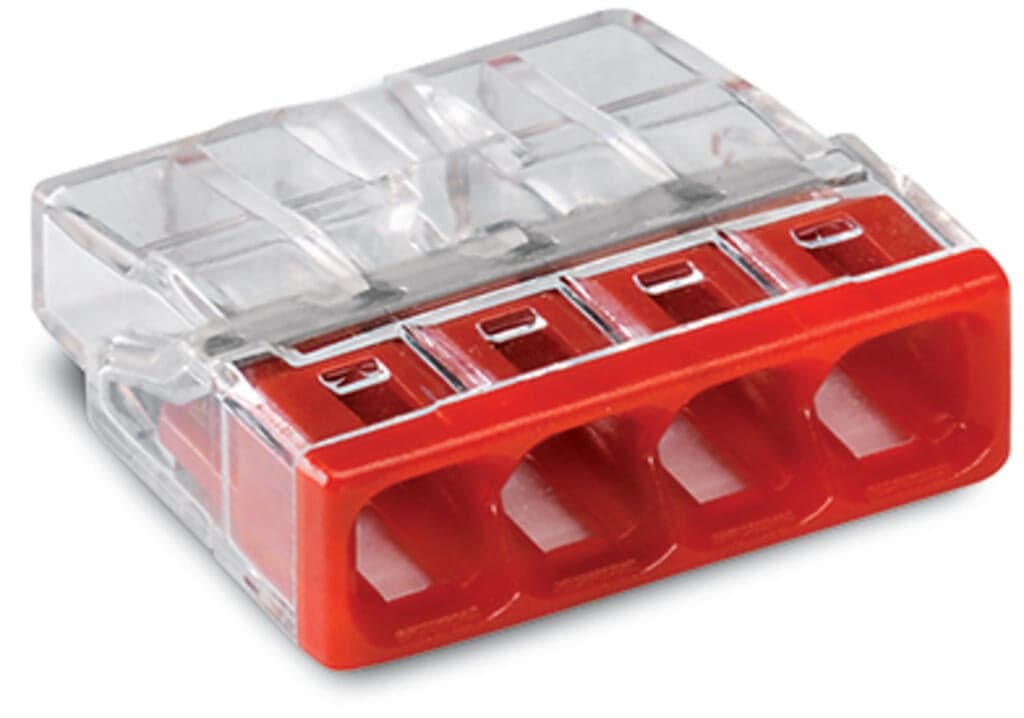

2273-204
Selling Points
- 1Compact design for convenient wiring.
- 2Push-in termination of up to eight solid conductors.
- 3Cross-section range: 0.5 to 2.5 mm².
- 4Transparent housing with red cover for visibility.
- 5Suitable for temperatures up to 60°C (T60).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety management note | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! | Safety information | in grounded power lines |
Clamping units | 4 | Total number of potentials | 1 |
Width | 18 mm / 0.709 inches | Height | 5.8 mm / 0.228 inches |
Depth | 16.7 mm / 0.657 inches | Note (material data) | Information on material specifications can be found here |
Color | transparent | Cover color | red |
Material group | IIIa | Insulation material (main housing) | Polycarbonate (PC) |
Flammability class per UL94 | V2 | Clamping spring material | Chrome-nickel spring steel (CrNi) |
Contact material | Electrolytic copper (ECu) | Contact plating | Tin |
Fire load | 0.034MJ | Weight | 1.3g |
Ambient temperature (operation) | +60 °C | Continuous operating temperature | 105 °C |
Temperature marking per EN 60998 | T60 | Product Group | 7 (Push Wire Conn.) |
eCl@ss 10.0 | 27-14-11-04 | eCl@ss 9.0 | 27-14-11-04 |
ETIM 9.0 | EC000446 | ETIM 8.0 | EC000446 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 1000 (100) pcs |
Packaging type | Box | Country of origin | DE |
GTIN | 4050821027867 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60998 |
Nominal voltage (II/2) | 450V | Rated surge voltage (II/2) | 4kV |
Rated current | 24A | Legend (ratings) | (II / 2) ? Overvoltage category II / Pollution degree 2 |
Approvals per | UL 486C | Rated voltage (UL) | 600V |
Rated current UL | 20A | Connection technology | PUSH WIRE? |
Actuation type | Push-in | Connectable conductor materials | Copper |
Connectable conductor materials (note) | Terminating Aluminum ConductorsWAGO Spring-Clamp Terminal Blocks are suitable for solid aluminum conductors up to 4 mm2/12 AWG if WAGO “Alu-Plus” Contact Paste249-130is used for termination.“Alu-Plus” Contact Paste Advantages:Automatically destroys the oxide film during clamping.Prevents fresh oxidation at the clamping point.Prevents electrolytic corrosion between aluminum and copper conductors (in the same terminal block).Provides long-term protection against corrosion.For spring pressure connections with PUSH WIRE?connection technology,WAGO recommends that the aluminum conductor first be cleanedand then immediately inserted into the clamping unit filled with “Alu-Plus” contact paste.It is also possible to apply WAGO “Alu-Plus”additionallyon the whole surface of the aluminum conductor before termination.Please note that the nominal currents must be adapted to the reduced conductivity of the aluminum conductors::2.5 mm2 = 16 A4 mm2 = 22 A | Solid conductor | 0.5 … 2.5 mm2 / 20 … 16 AWG |
Strip length | 11 mm / 0.43 inches | Wiring direction | Side-entry wiring |
