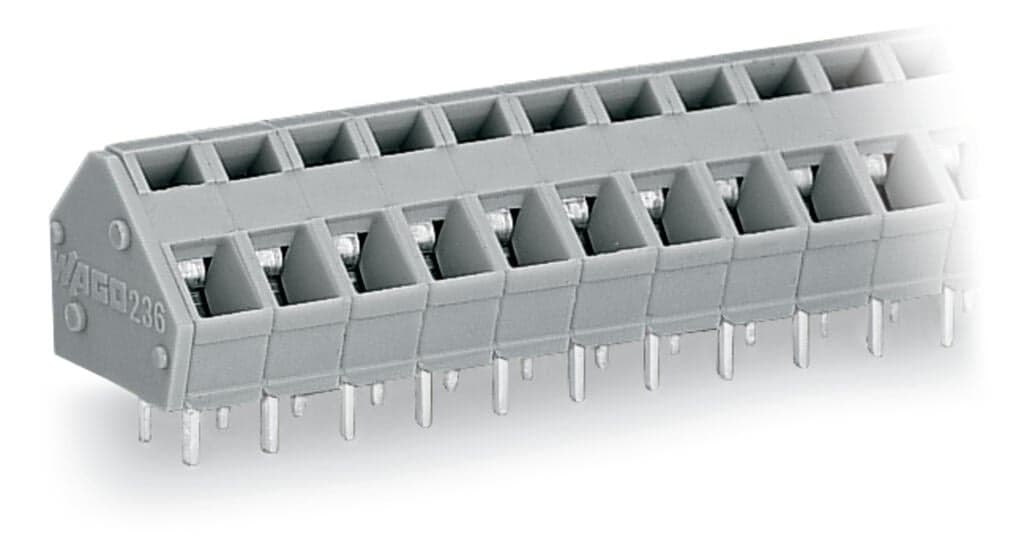

WAGO 236-402/000-017 PCB Terminal Strip

Selling Points

1CAGE CLAMP(R) Connection: Securely connects solid or stranded wires without special preparation.
2Versatile Pin Spacing: Available in metric (5/5.08 mm) and inch (0.197/0.2 inches) pin spacing.
3Wide Conductor Range: Supports conductors from 0.08 to 2.5 mm² and 28 to 12 AWG.
4Compliant with Safety Standards: Meets RoHS compliance and has approvals from CCC, CSA, and UL.
5Durable Construction: Made with chrome-nickel spring steel (CrNi) and tin-plated for corrosion resistance.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Variants:	Other pole numbers	Pin spacing	5/5.08?mm?/ 0.197/0.2?inches
Width	12.3?mm?/ 0.484?inches	Height	17?mm?/ 0.669?inches
Height from the surface	13?mm?/ 0.512?inches	Depth	14?mm?/ 0.551?inches
Solder pin length	4mm	Solder pin dimensions	0.7 x 0.7?mm
Drilled hole diameter with tolerance	1.1(+0.1)mm	Note (material data)	Information on material specifications can be found here
Clamping spring material	Chrome-nickel spring steel (CrNi)	Contact plating	Tin
Limit temperature range	-60 … +105?°C	Product Group	4 (Printed Circuit Connectors)
ETIM 9.0	EC002643	ETIM 8.0	EC002643
ECCN	NO US CLASSIFICATION	PU (SPU)	420?(105)?pcs
Country of origin	CH	GTIN	4044918768788
Customs tariff number	85369010000	RoHS Compliance Status	Compliant,No Exemption
Connection technology	CAGE CLAMP?	Actuation type	Operating tool
Solid conductor	0.08 … 2.5?mm2?/ 28 … 12?AWG	Fine-stranded conductor	0.08 … 2.5?mm2?/ 28 … 12?AWG
Fine-stranded conductor; with insulated ferrule	0.25 … 1.5?mm2	Fine-stranded conductor; with uninsulated ferrule	0.25 … 1.5?mm2
Note (conductor cross-section)	12 AWG: THHN, THWN	Strip length	5 … 6?mm?/ 0.2 … 0.24?inches
Conductor connection direction to PCB	45°	Number of poles	2

Specifications may be subject to change without notice
