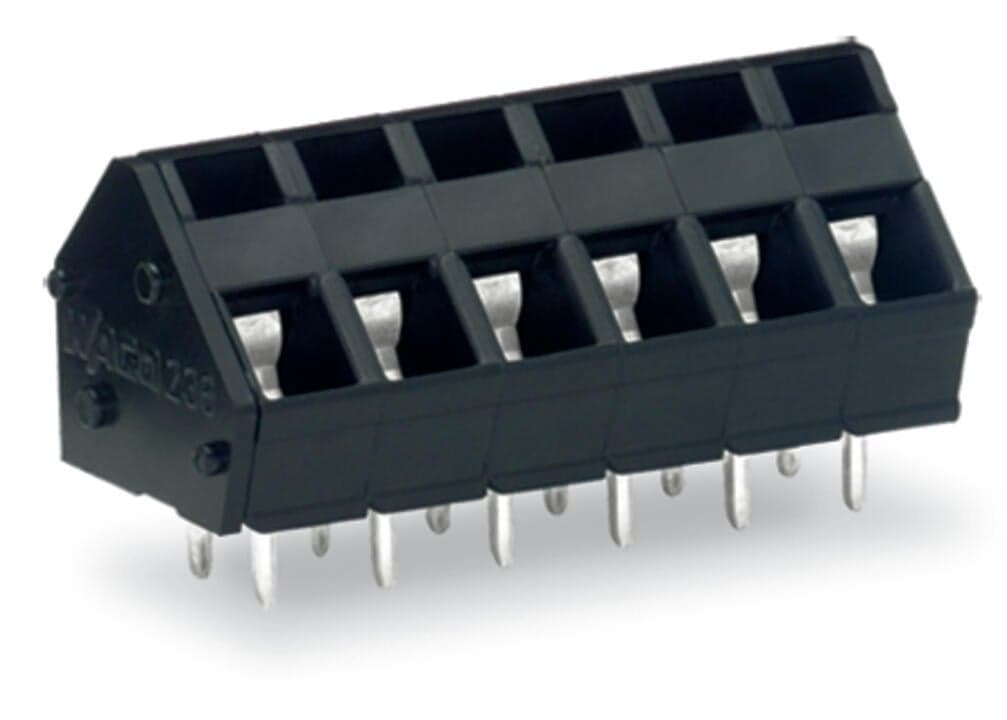

Product Model
236-404/334-604
Selling Points
- 1Secure Connections: The WAGO 236-404/334-604 terminal block ensures reliable connections with its CAGE CLAMP technology.
- 2High Current Capacity: Supports up to 2.5 mm², making it suitable for high-current applications.
- 3Easy Installation: Features a simple and efficient installation process with its spring-loaded design.
- 4Durable Construction: Made from high-quality polyamide (PA66) for excellent insulation and durability.
- 5Versatile Use: Compatible with various wire sizes up to AWG 12 and suitable for multiple potential connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | Application notes:Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions. | Variants: | Other pole numbers |
Clamping units | 4 | Total number of potentials | 4 |
Number of connection types | 1 | Number of levels | 1 |
Pin spacing | 5?mm?/ 0.197?inches | Width | 22.3?mm?/ 0.878?inches |
Height | 16.6?mm?/ 0.654?inches | Height from the surface | 13?mm?/ 0.512?inches |
Depth | 14?mm?/ 0.551?inches | Solder pin length | 3.6mm |
Solder pin dimensions | 0.7 x 0.7?mm | Plated through-hole diameter (THR) | 1.1(+0.1)mm |
PCB contact | THR | Solder pin arrangement | over the entire terminal strip (in-line) |
Number of solder pins per potential | 2 | Note (material data) | Information on material specifications can be found here |
Color | black | Material group | IIIa |
Insulation material (main housing) | Polyamide (PA46) | Flammability class per UL94 | V2 |
Clamping spring material | Chrome-nickel spring steel (CrNi) | Contact material | Electrolytic copper (ECu) |
Contact plating | Tin | Fire load | 0.057MJ |
Weight | 3.7g | MSL per J-STD 020D | 1 |
Limit temperature range | -60 … +115?°C | Product Group | 4 (Printed Circuit Connectors) |
eCl@ss 10.0 | 27-44-04-01 | eCl@ss 9.0 | 27-44-04-01 |
ETIM 9.0 | EC002643 | ETIM 8.0 | EC002643 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 220?(55)?pcs |
Packaging type | box | Country of origin | CH |
GTIN | 4044918769488 | Customs tariff number | 8536904000 |
RoHS Compliance Status | Compliant,No Exemption | Ratings per | IEC/EN 60664-1 |
Rated voltage (III / 3) | 200V | Rated impulse voltage (III / 3) | 4kV |
Rated voltage (III/2) | 320V | Rated surge voltage (III/2) | 4kV |
Nominal voltage (II/2) | 320V | Rated surge voltage (II/2) | 4kV |
Rated current | 24A | Legend (ratings) | (III / 2) ? Overvoltage category III / Pollution degree 2 |
Approvals per | CSA | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 15A | Rated voltage UL (Use Group D) | 300V |
Rated current UL (Use Group D) | 10A | Rated voltage CSA (Use Group B) | 300V |
Rated current CSA (Use Group B) | 15A | Rated voltage CSA (Use Group D) | 300V |
Rated current CSA (Use Group D) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Solid conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG |
Fine-stranded conductor | 0.08 … 2.5?mm2?/ 28 … 12?AWG | Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5?mm2 |
Fine-stranded conductor; with uninsulated ferrule | 0.25 … 1.5?mm2 | Note (conductor cross-section) | 12 AWG: THHN, THWN |
Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches | Conductor connection direction to PCB | 45° |
Number of poles | 4 |
Specifications may be subject to change without notice
