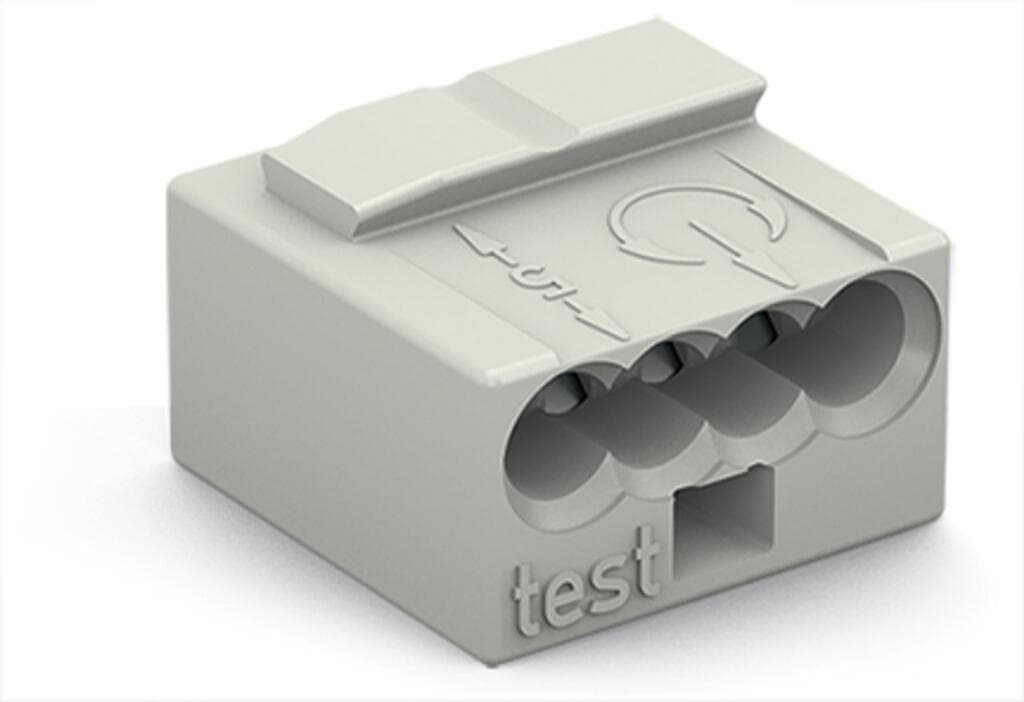

Product Model
243-304
Selling Points
- 1Compact design for space-saving installations.
- 2Easy wiring for time-saving and cost-effective installation.
- 3Built-in test slot for quick troubleshooting.
- 4Resistance to vibration and shock-proof.
- 5Maintenance-free connection with simple insertion into carrier.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety management note | NOTICE: Observe installation and safety instructions!Only to be used by electricians!Do not work under voltage/load!Use only for proper use!Observe national regulations/standards/guidelines!Observe technical specifications for the products!Observe the number of permissible potentials!Do not use damaged/dirty components!Observe conductor types, cross-sections and strip lengths!Insert conductor until it hits the product‘s backstop!Use original accessories!To be sold only with installation instructions! | Clamping units | 4 |
Total number of potentials | 1 | Number of connection types | 1 |
Number of levels | 1 | Width | 10?mm?/ 0.394?inches |
Height | 6.8?mm?/ 0.268?inches | Depth | 10?mm?/ 0.394?inches |
Note (material data) | Information on material specifications can be found here | Color | light gray |
Cover color | light gray | Fire load | 0.012MJ |
Weight | 0.8g | Ambient temperature (operation) | +60 °C |
Continuous operating temperature | 105?°C | eCl@ss 10.0 | 27-14-11-04 |
eCl@ss 9.0 | 27-14-11-04 | ETIM 9.0 | EC000446 |
ETIM 8.0 | EC000446 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 1000?(100)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918440691 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Ratings per | EN 60664 | Nominal voltage (II/2) | 100V |
Rated surge voltage (II/2) | 1.5kV | Rated current | 6A |
Legend (ratings) | (II / 2) ? Overvoltage category II / Pollution degree 2 | Connection technology | PUSH WIRE? |
Actuation type | Push-in | Connectable conductor materials | Copper |
Solid conductor | 22 … 18?AWG | Conductor diameter | 0.6 … 0.8?mm?/ 22 … 20?AWG |
Conductor diameter (note) | When using conductors of the same diameter, 0.5 mm (24 AWG) or 1 mm (18 AWG) diameters are also possible. | Strip length | 5 … 6?mm?/ 0.2 … 0.24?inches |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
