Product Model

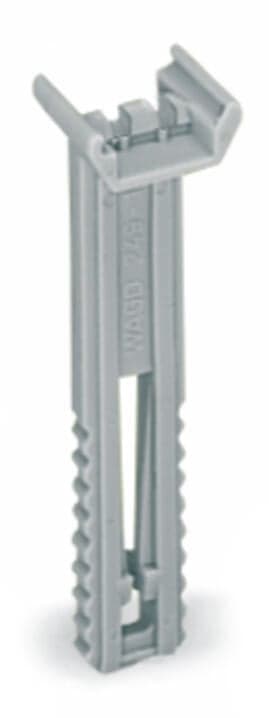

249-118
Selling Points
- 1Adjustable height from 43.5 mm to 59.5 mm.
- 2Snap-on type for easy installation.
- 3Suitable for end stops (249-116 and 249-117) and 2 WMB markers or 1 continuous strip.
- 4Gray color with dimensions of 0.39 in W.
- 5RoHS compliant for environmental safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Suitable | for end stops (249?116 and 249?117); for 2 WMB markers or 1 continuous strip | Properties | snap-on type and adjustable in height from 43.5 mm to 59.5 mm |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Width | 10?mm?/ 0.394?inches | Color | gray |
Weight | 1.3g | Fire load | 0.039MJ |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-40-75 |
eCl@ss 9.0 | 27-14-40-75 | ETIM 9.0 | EC002248 |
ETIM 8.0 | EC002248 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4017332188388 |
Customs tariff number | 3926909985 | RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
