Product Model

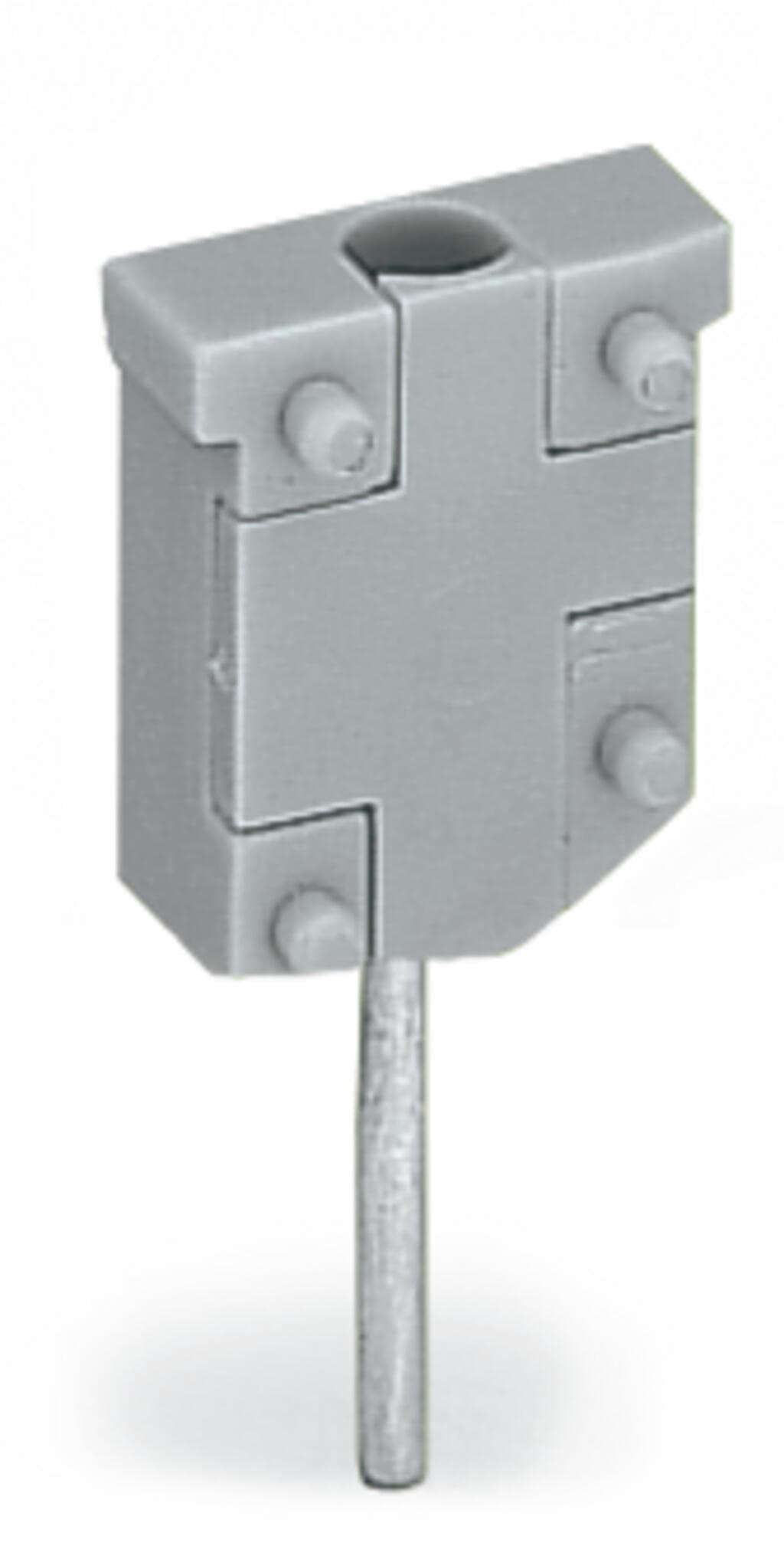

249-135
Selling Points
- 1Easy to use, no tools required for conductor insertion.
- 2Supports up to 800 V, ensuring reliable performance in demanding environments.
- 3Ideal for space-constrained applications with a small footprint.
- 4Suitable for conductors from AWG 28 to 35, accommodating a wide range of electrical needs.
- 5Built to withstand rigorous use with robust materials and secure connections.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | Middle pressure, 2.2 N per pole | Width | 5?mm?/ 0.197?inches |
Module width | 5?mm?/ 0.197?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.098MJ |
Weight | 1.1g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-48 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002555 | ETIM 8.0 | EC002555 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4045454620653 | Customs tariff number | 8536904000 |
CAS-No. | 7439-92-1 | REACH Candidate List Substance | Lead |
RoHS Compliance Status | Compliant,With Exemption | RoHS Exemption | 6(c) |
SCIP notification number (Austria) | 5e27976c-2308-4987-a3e6-71e5dd95e7e3 | SCIP notification number (Belgium) | 75f0f8a5-731a-4c49-918e-50613bd76b62 |
SCIP notification number (Bulgaria) | 1413fe7d-e7a6-4da3-9c93-658b81149295 | SCIP notification number (Czech Republic) | e7692d23-2c0b-4bfa-a29d-33d219de35b7 |
SCIP notification number (Denmark) | e52a1c29-2320-4af7-82c2-1f125cb9780d | SCIP notification number (Finland) | 4a6adb3f-620e-4b54-8c4a-186d9f152086 |
SCIP notification number (France) | f9e0193d-6591-42b2-93a3-dec34553ebf1 | SCIP notification number (Germany) | a8082bb8-d64d-4ff3-9a36-89fb1dcc9589 |
SCIP notification number (Hungary) | dae059c8-fe0f-4b36-a5a2-ad089d9c35db | SCIP notification number (Italy) | b9bc0cbf-c5af-4913-828e-abd8619396cb |
SCIP notification number (Netherlands) | fa662b17-ab01-41d4-93f1-0d41d4313519 | SCIP notification number (Poland) | c9550a73-223c-4e9d-a635-d0d604a714c0 |
SCIP notification number (Romania) | 26913252-c7b2-4d1c-aa8c-65a117ad545b | SCIP notification number (Sweden) | 07ab7ecd-46c0-46b2-b916-96cf164fbaa9 |
Rated voltage (III / 3) | 250V | Ratings (note) | Maximum test voltage (touch contact): 48 V (test pins are not touch-proof) |
Ratings (note) 2 | Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units) | Test voltage | 250V |
Test current | 0.5A |
Specifications may be subject to change without notice
