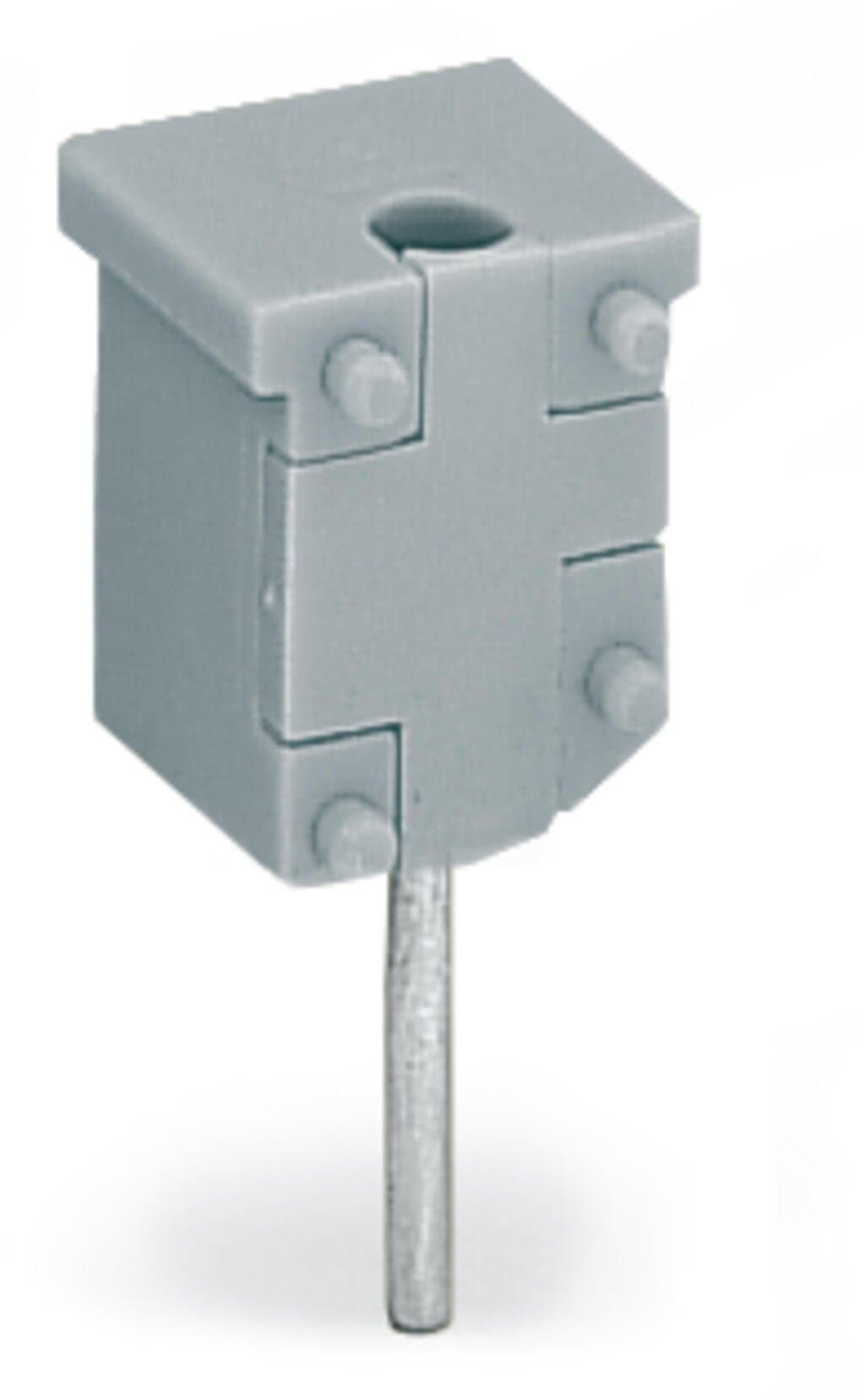

Product Model
249-139
Selling Points
- 1High-reliability design for demanding industrial environments.
- 2Versatile connectivity options for various industrial applications.
- 3Fast and efficient data transfer rates for real-time monitoring.
- 4Durable construction with high-quality materials for long-lasting performance.
- 5Easy installation and maintenance with intuitive design features.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Width | 10?mm?/ 0.394?inches | Module width | 10?mm?/ 0.394?inches |
Note (material data) | Information on material specifications can be found here | Color | gray |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.109MJ | Weight | 1.5g |
Product Group | 2 (Terminal Block Accessories) | eCl@ss 10.0 | 27-14-11-48 |
eCl@ss 9.0 | 27-14-11-48 | ETIM 9.0 | EC002555 |
ETIM 8.0 | EC002555 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?(25)?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4045454335960 |
Customs tariff number | 8536904000 | CAS-No. | 7439-92-1 |
REACH Candidate List Substance | Lead | RoHS Compliance Status | Compliant,With Exemption |
RoHS Exemption | 6(c) | SCIP notification number (Austria) | e344ccd3-3b82-4182-9859-48f9560d68c2 |
SCIP notification number (Belgium) | 9c999cd6-8d7e-4d14-87c5-2eb6e7609924 | SCIP notification number (Bulgaria) | 46fc2ab1-fe24-4509-b05d-5576e7b253ab |
SCIP notification number (Czech Republic) | 56f6c7d3-aac1-4411-bbfb-80eee98deb8e | SCIP notification number (Denmark) | 94b59f70-9758-481b-9c82-3180ab8287e4 |
SCIP notification number (Finland) | f55b3944-7bb3-47e6-abd2-b43d34df49c5 | SCIP notification number (France) | 72afdd39-959e-4557-a6cd-32857601fdd2 |
SCIP notification number (Germany) | 2792d38e-8c76-48e4-8499-3da3213549ca | SCIP notification number (Hungary) | 81e05cb6-030b-45b2-b247-24bb97be0ff4 |
SCIP notification number (Italy) | 2e7bd608-6b29-49a5-96d2-d0babf74b76a | SCIP notification number (Netherlands) | aaf89fcb-c3a1-4f95-a13b-b2141cec1228 |
SCIP notification number (Poland) | c97acaac-316c-4123-b8ac-6805466eefff | SCIP notification number (Romania) | ea9227cc-27a4-4e0f-a5ad-ee52bfee576a |
SCIP notification number (Sweden) | 63cbe9e4-767b-4430-9402-49d2c4815acb | Rated voltage (III / 3) | 800V |
Ratings (note) | Maximum test voltage (touch contact): 48 V (test pins are not touch-proof) | Ratings (note) 2 | Maximum test current (touch contact): 0.5 AMaximum test current: 6 A (if the test pins are securely connected in the clamping units) |
Test voltage | 800V | Test current | 0.5A |
Specifications may be subject to change without notice
