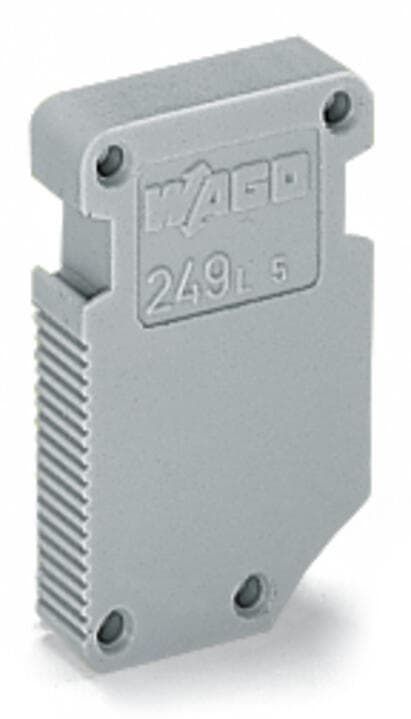

Product Model
249-143
Selling Points
- 1Modular design for bridging commoned terminal blocks.
- 2Gray color for easy identification in electrical systems.
- 3Compact and lightweight for space-efficient installations.
- 4Compatible with various WAGO terminal blocks and systems.
- 5Affordable price point with competitive market rates.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Safety information | These spacer modules are not suitable for Ex e applications. | Width | 5?mm?/ 0.197?inches |
Module width | 5?mm?/ 0.197?inches | Note (material data) | Information on material specifications can be found here |
Color | gray | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.111MJ |
Weight | 0.9g | Product Group | 2 (Terminal Block Accessories) |
eCl@ss 10.0 | 27-14-11-92 | eCl@ss 9.0 | 27-14-11-48 |
ETIM 9.0 | EC002848 | ETIM 8.0 | EC002848 |
ECCN | NO US CLASSIFICATION | PU (SPU) | 100?(25)?pcs |
Packaging type | box | Country of origin | DE |
GTIN | 4017332295970 | Customs tariff number | 3926909985 |
RoHS Compliance Status | Compliant,No Exemption |
Specifications may be subject to change without notice
