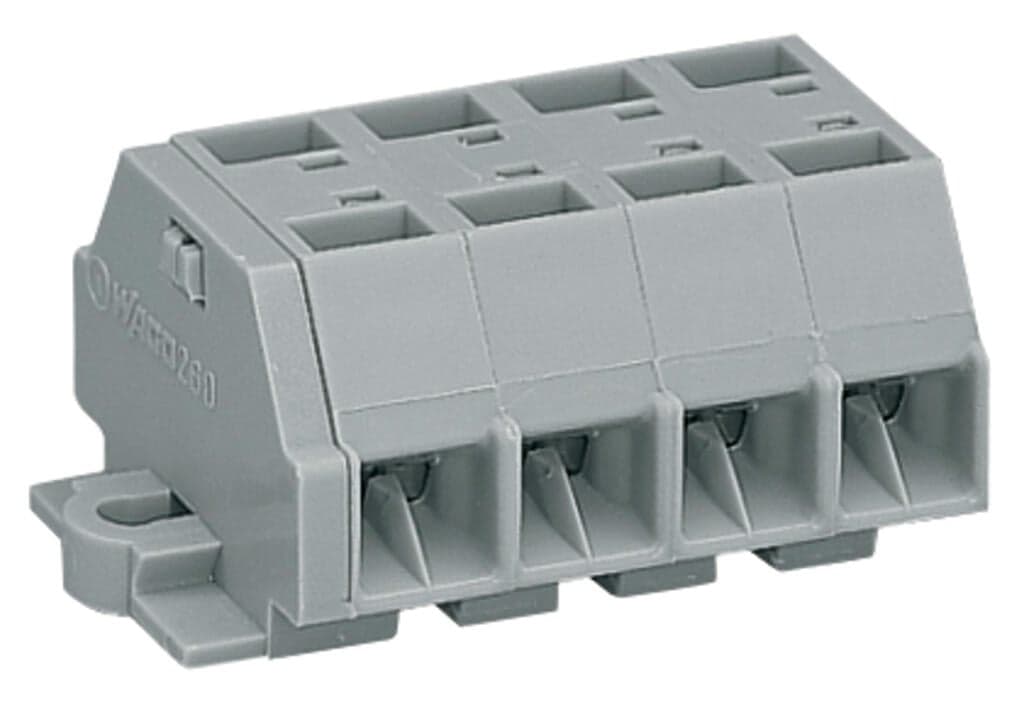

Product Model
260-204
Selling Points
- 1Compact design with CAGE CLAMP connection for easy wire installation.
- 2Compatible with 28 AWG to 15 AWG wires for various applications.
- 3Available in gray color with fixing flanges for secure mounting.
- 4Ideal for DIN rail mounting with 1-to-1 or 2-to-2 input/output configurations.
- 5Industry-proven spring pressure connection technology ensures fast, vibration-proof, and maintenance-free operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 16 | Total number of potentials | 4 |
Number of levels | 1 | Width | 45.7?mm?/ 1.8?inches |
Height from the surface | 17.1?mm?/ 0.673?inches | Depth | 25?mm?/ 0.984?inches |
Module width | 8?mm?/ 0.315?inches | Design | horizontal type |
Mounting type | Mounting flange | Marking level | Side marking |
Note (material data) | Information on material specifications can be found here | Color | gray |
Material group | I | Insulation material (main housing) | Polyamide (PA66) |
Flammability class per UL94 | V0 | Fire load | 0.195MJ |
Weight | 11.4g | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 100?pcs | Packaging type | box |
Country of origin | DE | GTIN | 4044918594172 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 18A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 10A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Number of poles | 4 |
Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
