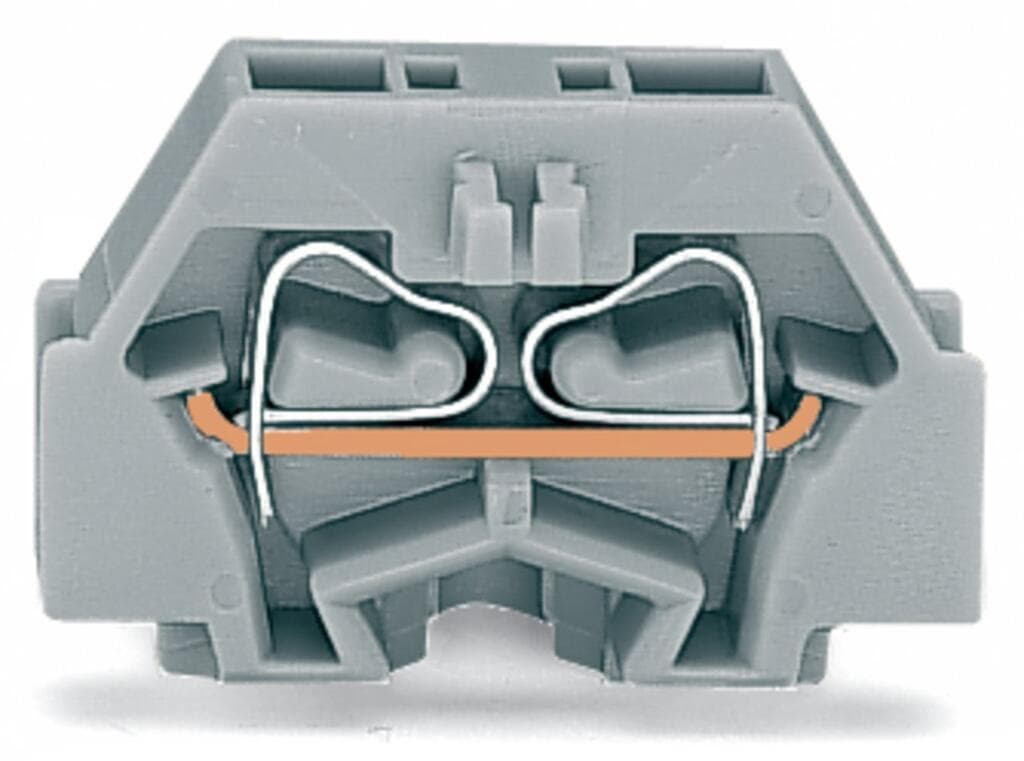

Product Model
260-311
Selling Points
- 1Snap-in Mounting Foot: Easy and secure installation on aluminum rails.
- 2Compact Design: 1-pole, 1.5 mm² capacity, suitable for AWG 28-16.
- 3Versatile Use: Compatible with plate thickness 0.6-1.2 mm and fixing hole Ø 3.5 mm.
- 4High Reliability: Designed for Ex e II applications, ensuring reliable electrical connections.
- 5Easy Maintenance: Insulated and snap-together design for easy tool insertion and jumper bar placement.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Clamping units | 2 | Total number of potentials | 1 |
Number of levels | 1 | Width | 5?mm?/ 0.197?inches |
Height from the surface | 17.1?mm?/ 0.673?inches | Depth | 25.1?mm?/ 0.988?inches |
Design | horizontal type | Mounting type | Snap-in foot |
Marking level | Side marking | Note (material data) | Information on material specifications can be found here |
Color | gray | Material group | I |
Insulation material (main housing) | Polyamide (PA66) | Flammability class per UL94 | V0 |
Fire load | 0.033MJ | Weight | 1.6g |
Product Group | 9 (Std Chassis Mt Blocks) | eCl@ss 10.0 | 27-14-11-06 |
eCl@ss 9.0 | 27-14-11-06 | ETIM 9.0 | EC001284 |
ETIM 8.0 | EC001284 | ECCN | NO US CLASSIFICATION |
PU (SPU) | 300?(50)?pcs | Packaging type | box |
Country of origin | CH | GTIN | 4044918593519 |
Customs tariff number | 8536904000 | RoHS Compliance Status | Compliant,No Exemption |
Rated voltage (III / 3) | 400V | Rated impulse voltage (III / 3) | 6kV |
Rated current | 18A | Legend (ratings) | (III / 3) ? Overvoltage category III / Pollution degree 3 |
Approvals per | CSA 22.2 No 158 | Rated voltage UL (Use Group B) | 300V |
Rated current UL (Use Group B) | 10A | Rated voltage UL (Use Group C) | 300V |
Rated current UL (Use Group C) | 10A | Rated voltage UL (Use Group D) | 600V |
Rated current UL (Use Group D) | 5A | Rated voltage CSA (Use Group C) | 300V |
Rated current CSA (Use Group C) | 10A | Connection technology | CAGE CLAMP? |
Actuation type | Operating tool | Connectable conductor materials | Copper |
Solid conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG | Fine-stranded conductor | 0.08 … 1.5?mm2?/ 28 … 16?AWG |
Strip length | 8 … 9?mm?/ 0.31 … 0.35?inches | Wiring direction | Side-entry wiring |
Specifications may be subject to change without notice
